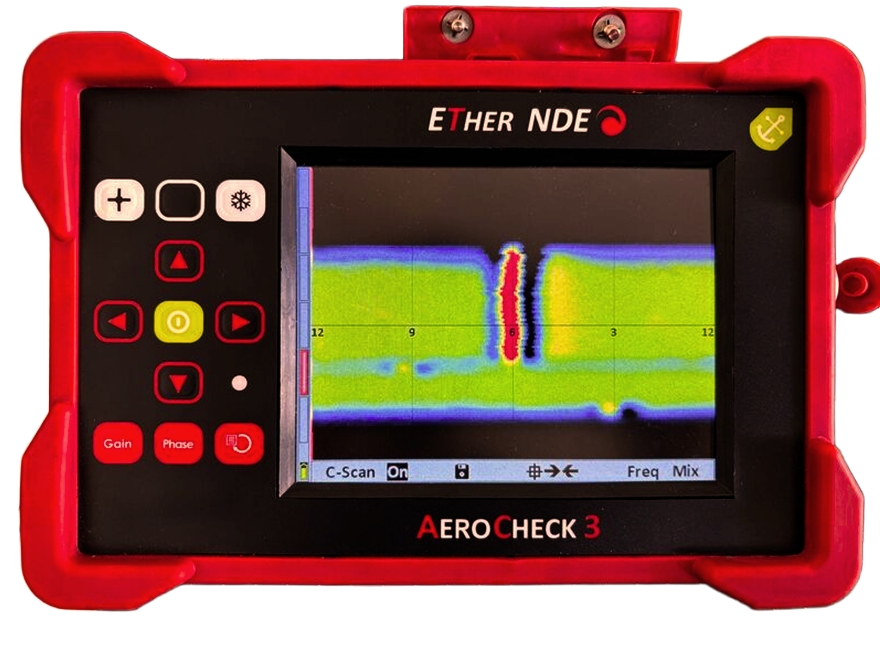

| AEROCHECK 3 Specification |
| Connectors: |
12-Way Lemo 2B (IP68) (Absolute, Bridge and Reflection) and Connection Lemo 00 (IP68) (for single
element absolute probes). Simultaneous probe operation possible using Lemo 12-Way and Lemo 00. |
| Rotary Drive: |
600-3000 rpm - ETher Mercury Drive (ADR002), Hocking 33A100, Rohmann MR3, SR1 & SR2 Drive
(special adpater needed) |
| Conductivity: |
Option becomes active withuse of an AeroCheck Conductivity probe and cable (see end of spec table) |
|
Single/Dual:
|
Single |
| Overall: |
-18 to + 104 dB, 0.1, 1 and 6dB steps (104dB maximum) + Mix Gain (-18 to +18dB on Output) |
|
Input:
|
0dB or 12dB |
| Drive: |
- 6dB to 10dB in 1dB steps (0dB reference 1mW into 50 ohm) |
| Max X/Y Ratio: |
+/-100.0dB |
| Range: |
0.0-359.9°, 0.1° steps |
| Auto Phase: |
Allows phase angle to be automatically set to a pre-set angle |
| Normal High Pass: |
DC to 2kHz or Low Pass Filter, which ever is the lower in 1 Hz steps. Plus variable adaptive balance drift
compensation 0.01 - 0.5 Hz (6 steps) |
| Normal Low Pass: |
1Hz to 2kHz or a quarter of the lowest test frequency, which ever is lower in 1 Hz steps |
| Manual: |
14 internal balance loads; 2.2μH, 5.0μH, 6.0μH, 6.5μH, 7.0μH, 7.5μH, 8.2μH, 12μH, 15μH, 18μH, 22μH,
30μH, 47μH, 82μH |
| Automatic: |
Optimised balance load selection |
| Box & Sector: |
Both Alarm types are fully configurable, Freeze, Tone or Visual |
| Output: |
Open collector transistor (50v dc at 10mA max) available on 12-way Lemo |
| Type: |
145mm (5.7”), 18 bit Colour, daylight readable |
| Viewable Area: |
115.2mm (4.53”) (Horizontal) x 86.4mm (3.4”) (Vertical) |
| Resolution: |
640 x 480 pixels |
| Colour Schemes: |
User configurable Dark, Bright and Black & White |
| Configurable Screen: |
Full Screen, Single, Dual Spot or Dual Pane with variable size and location and function e.g. XY, Time-base, Waterfall and Meter. |
| Display Modes: |
Full Screen, Single, Dual Spot or Dual Pane with variable size and location and function e.g. XY, Time-base, Waterfall and Meter. Spot, Time base (0.1-20 seconds x 1-200 sweeps and up to 55 seconds),
Waterfall and Meter with peak hold and % readout |
| Graticules: |
None, Grid (4 sizes 5, 10, 15 and 20% FSH), Polar (4 sizes 5, 10, 15 and 20% FSH) |
| Offset: |
Spot Position: Y =-50 to +50, X =-65 to +65% |
| Digital Spot: |
Display in X, Y or R,θ |
| Setting: |
Display/Edit of all settings in Legacy Format |
| Setup Storage: |
micro SD up to 32GB, holding over 10,000 settings |
| Stored Screen Shots: |
micro SD up to 32GB, holding over 10,000 screen shots |
| Shots: |
Comprehensive Record, Replay and Storage |
| Record Replay: |
Real-time recording of trace data and Replay on instruments and desktop PC up to 164 seconds |
| PC Connectivity: |
USB (Full PC remote control plus Real Time data) |
| Digital Volt Free Alarm: |
On Lemo 12-way Open collector transistor (36v dc at 10mA max) |
| VGA: |
Full 15 way VGA output |
| Language: |
English, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Turkish, Czech, Norwegian. |
| Verification Level: |
The system includes on delivery a 2 year validity Verification Level 2 detailed functional Check and
calibration, as per ISO 15548-1:2013. |
| Power On Self Test: |
A “self test” on start-up is performed of external ram, accelerometer, Micro SD card, LCD screen buffer. |
| Battery: |
Internal 7.2V nominal @ 3100mAh = 22.32 watt.hr |
| Run Time: |
Over 7 hours with a Weld Probe at 100kHz and 50% backlight |
| Charging Time: |
2.5 hrs. charge time, simultaneous charge and operation |
| External: |
100-240v 50-60Hz 30 Watts |
| Connector: |
Lemo OS Hermaphroditic keying, half-moon insert (IP68) |
| Weight: |
1.15 kg (2.54 lbs) |
| Size (w x h x d): |
222.2mm x 152.2mm x 47.4mm (LxHxW) (8.75” x 6.0” x 1.87”) |
| Material: |
Main Body: PC-ABS a blend of the two polymers - Polycarbonate (PC) and Acrylonitrile Butadiene Sty-rene (ABS). Over-moulded Material: TPE Red Rubber, Thermoplastic Elastomer (TPE). |
| Operating Temp.: |
-20 to +60°C (-4 to 140 °F) |
| Storage Temp.: |
Storage for up to 12 months -20 to +35°C (-4 to 95°F) Nominal +20°C (68°F) |
| IP Rating: |
Designed to meet requirements of IP64 |
