Real-time, cross-regional data sharing and traceability

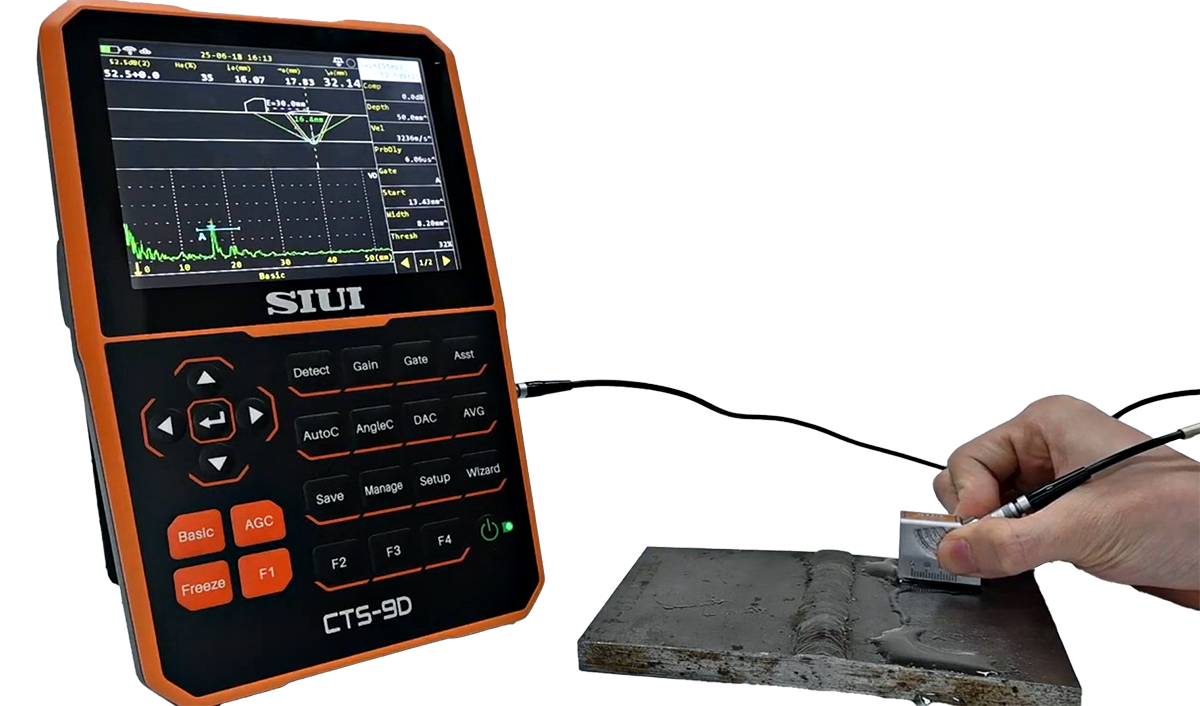

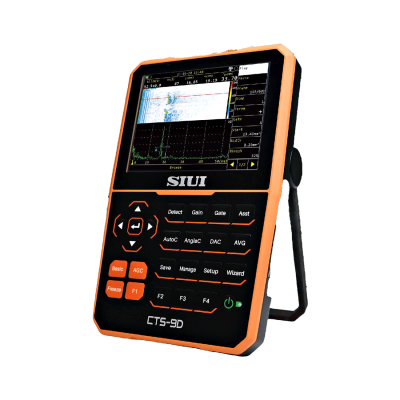

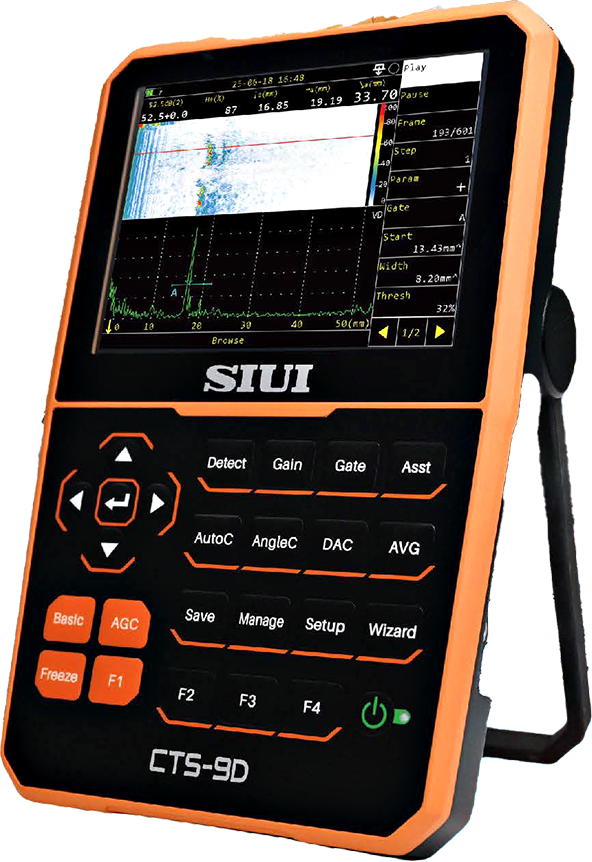

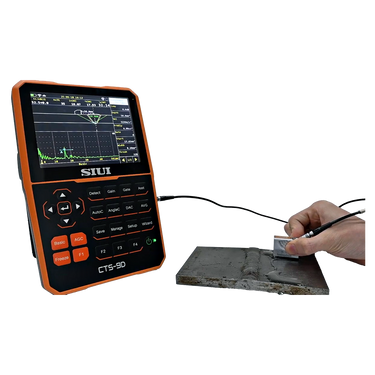

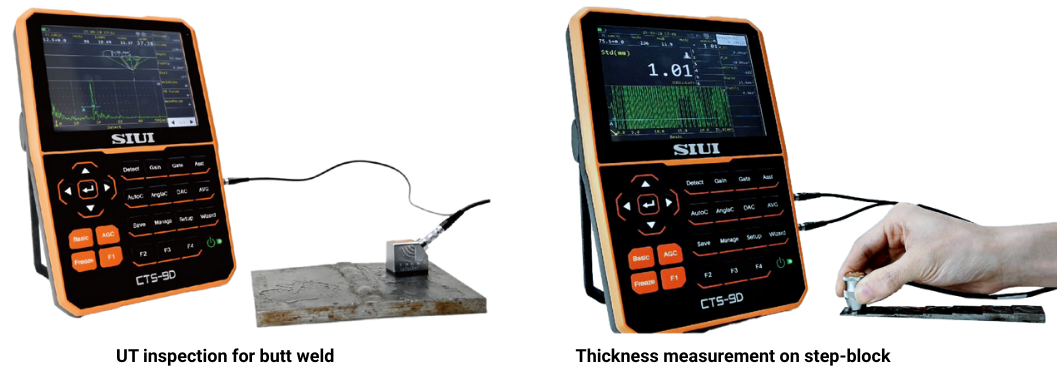

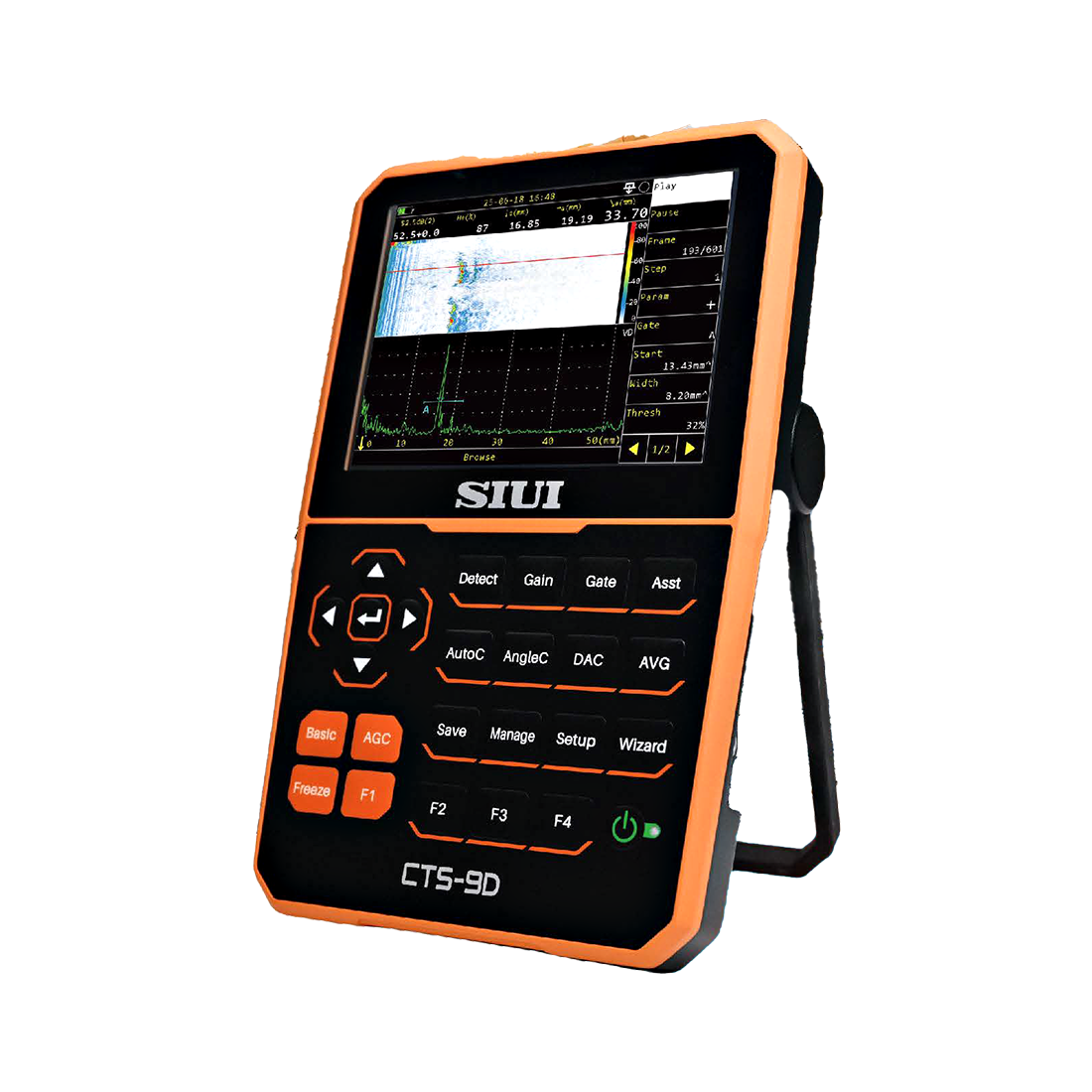

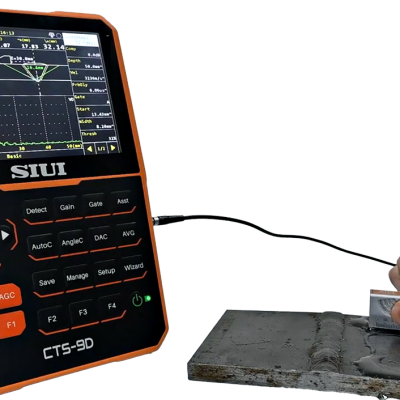

The CTS-9D Ultrasonic Flaw Detector & Thickness Gauge is a high-performance inspection instrument designed for precise flaw detection and thickness measurement in a wide range of materials. Combining advanced ultrasonic functions with modern connectivity options, it offers enhanced accuracy, data traceability, and streamlined workflows. With its triple-control interface (keys, touchscreen, and voice), the CTS-9D is engineered for both ease of use and reliability in demanding industrial environments.
Triple-Control Operation: Supports keys, touchscreen, and voice input for flexible and efficient use.
Enhanced Data Management: 27 GB internal storage, USB and Ethernet ports, plus UltraCloud Drive integration for real-time sharing and centralized management
Integrated Camera (Optional): Captures images of workpieces and probes alongside parameter files for traceability
High Sampling Rate: 640 MHz / 12-bit sampling ensures fine signal acquisition for detecting small flaws
Advanced UT Functions: Includes DAC, TCG, crack height measurement, FFT, CSC, AWS, API 5UE, and weld simulation; optional B-Scan, C-Scan, and BEA.
Advanced TG Functions: Offers TG Echo, CoatMode, V-path, TDG curve, TempComp, multilayer measurement, and optional B-Scan
Rugged and Portable: Lightweight (approx. 1.25 kg), IP65 rated, shock/vibration tested to MIL-STD-810G standards.
Flexible Connectivity: USB, Ethernet, Mini-HDMI, optional WiFi and 5G SIM card support
To purchase or inquire about the SIUI CTS-9D UT Flaw Detector & Thickness Gauge, click below
