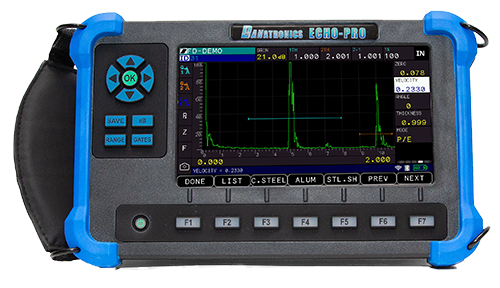

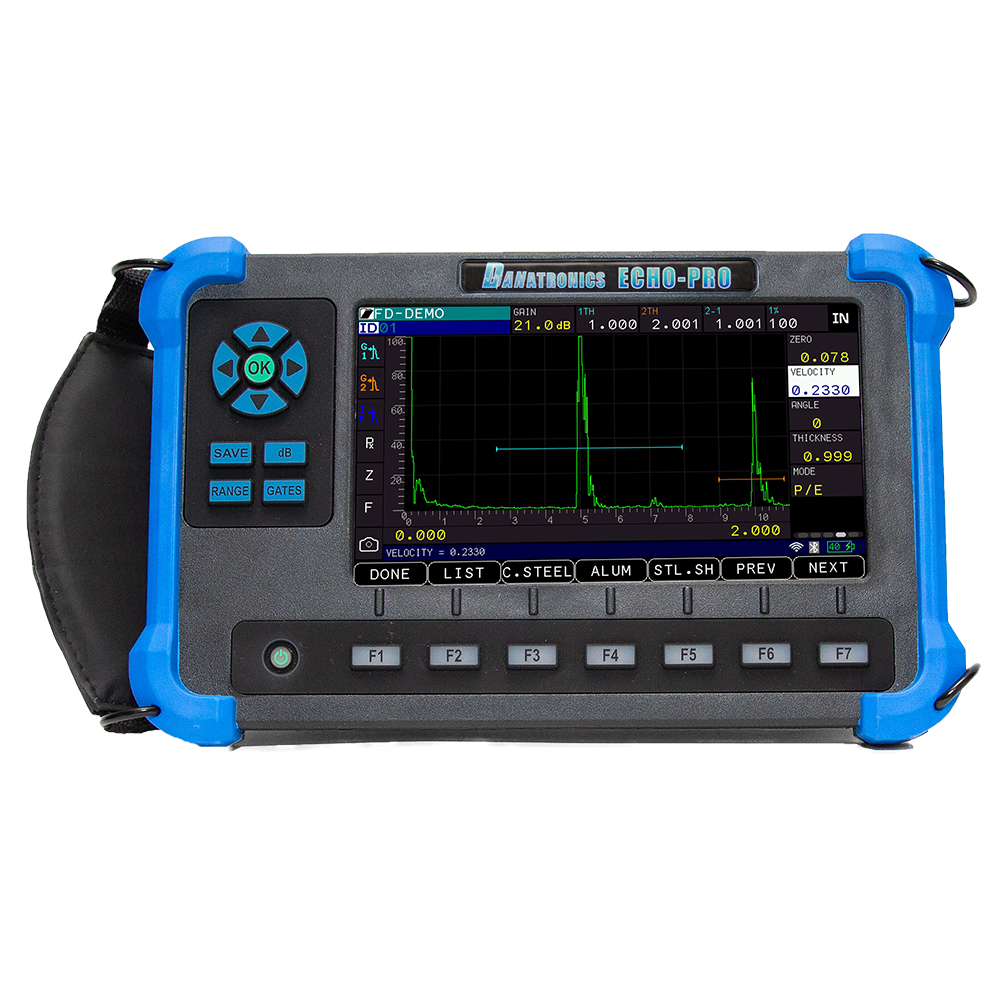

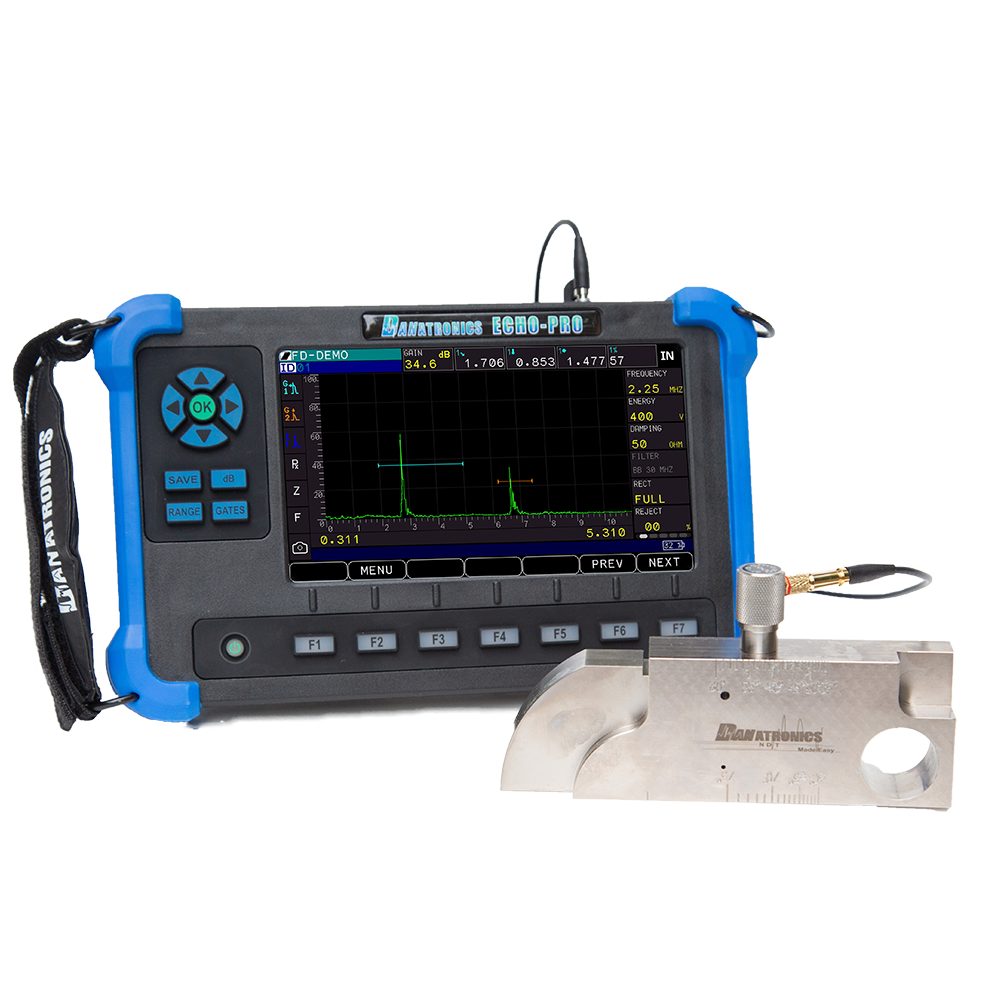

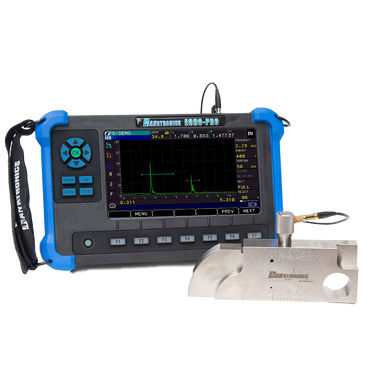

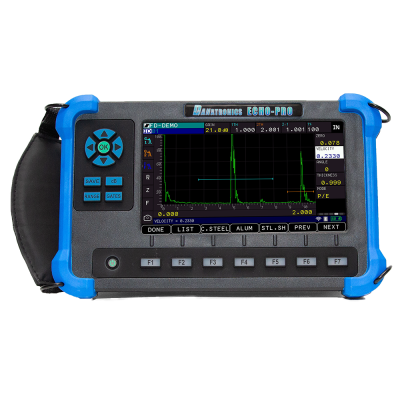

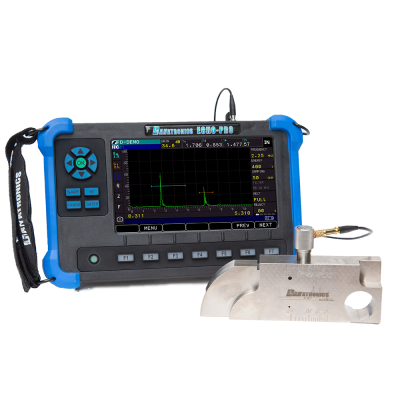

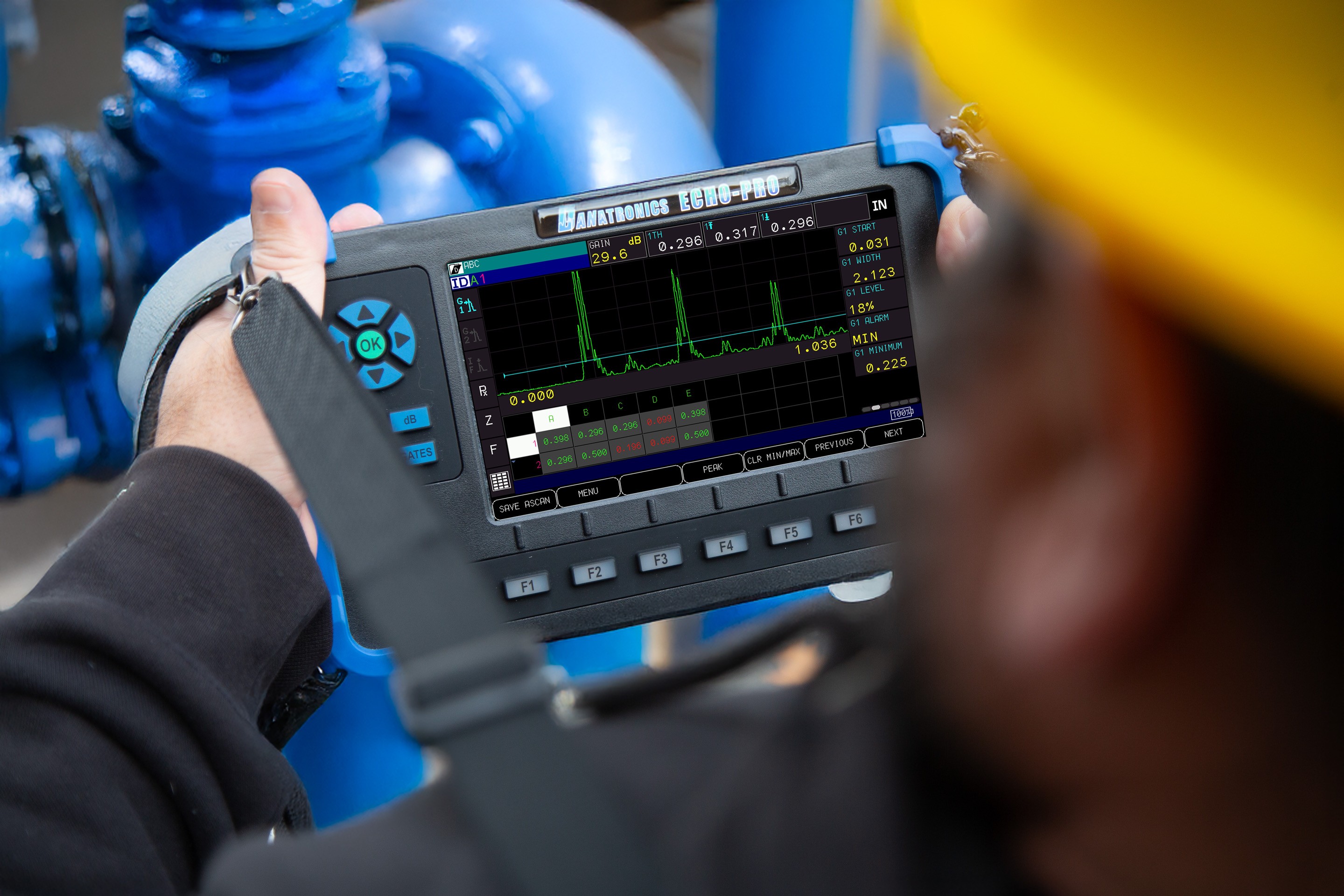

| Measurements |
| Transducer and Measurement Types: |
Single, dual, thru transmission, angle beam, delay lines, contact, immersion, echo to echo, dry couple |
| Measurement Rate: |
10 Hz -2k Hz adjustable |
| Range: |
0.353” to 277” (8.96 mm to 7035.8 mm) @ 5,900 m/s (0.2320 in./μ) Optional extended range 554” (14071.6mm) |
| Zoom: |
Zooms gate 1 width to minimum range capability |
| Display Delay: |
-0.018” to 276.647” (8.96 to 7035.8mm) @ longitudinal velocity in steel |
| Zero Offset: |
0 - 2387 μsec. |
| Velocity: |
0.0250”/μs to 0.6000”/μs (635 m/s to 15240 m/s) |
| Alarm: |
Dynamic change of color and vibrate on alarm for echo in gate, echo above DAC positive, DAC negative, gate, minimum depth alarm and polarity change (phase reversal) |
| Peak Hold: |
Holds curve of ECHO envelope with live echo. Peak on, Peak hold, Peak off, peak pitch memory (audible chirp based on maximum echo amplitude) |
| Freeze: |
Freezes for data storage and waveform viewing analysis - ideal for high temperature measurements |
| Waveform: |
Filled or Outlined |

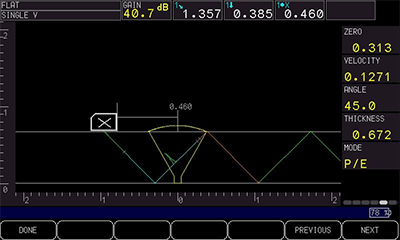

| Angle Beam: |
Displays all three leg components, angular distance, surface distance and depth (automatically displayed once an angle is entered) accounting for leg correction to correct for beam index point of wedge, fourth measurement box is gate 1 amplitude |
| Refracted Angle: |
0° to 85° in 1° increments including 0, 30, 45, 60 and 70 as pre-set choices |
| Gates (1 and 2): |
Thickness, Soundpath, Projection, Depth, Amplitude, Time-Of-Flight, Min./Max. Depth, Min./Max. Amplitude |
| Echo-to-Echo: |
Standard Gate 2-Gate 1, Optional IF Gate Tracking |
| Corrosion Mode (Optional): |
Zero-cross measurement algorithm, V-Path correction, Single or Echo-to-Echo, Encoded B-scan |
| Precision Mode (Optional): |
Ultrasonic precision gage (1 micron resolution) using single element probes, A and B-scan, echo to echo, datalogger |
| Other Measurements: |
Overshoot (dB) value for DGS/TVG, ERS (equivalent reflector size) for DGS/AVG, AWS D1.1/D1.5 A, B, C and D values, Reject Value, Echo to Ref dB values |
| Measurement - Flaw Sizing |
| Flaw Sizing: |
DAC, TVG, DGS (DGS optional for ECHO PRO B) |
| DAC points: |
Up to 50 points, 110 dB dynamic range |
| Special DAC modes: |
Custom DAC (up to 6 curves), 20-80% View |
| Curved surface correction (Optional): |
Standard OD or Bar correction for Angle Beam measurements |
| Curves: |
TVG/DGS |
