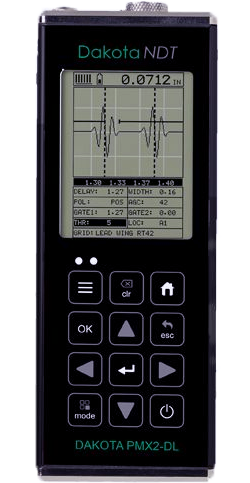

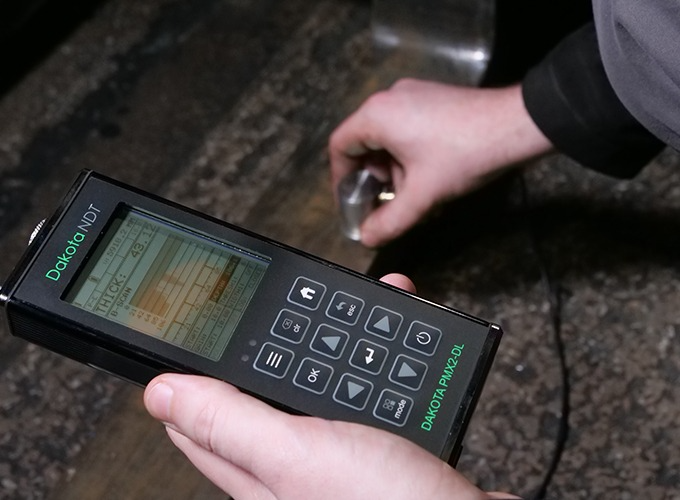

| PMX2-DL & PMX3-DL Specifications |
| Physical |
| Size: |
Width: 2.5 in (63.5 mm) | Height: 6.5 in (165 mm) | Depth: 1.24 in (31.5 mm) |
| Weight: |
13.5 oz (with batteries) |
| Keyboard: |
Membrane switch pad with twelve tactile keys |
| Operating Temperature: |
14°F to 140°F (-10°C to 60°C) |
| Case: |
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Data Output: |
USB-C port; Windows® PC interface software |

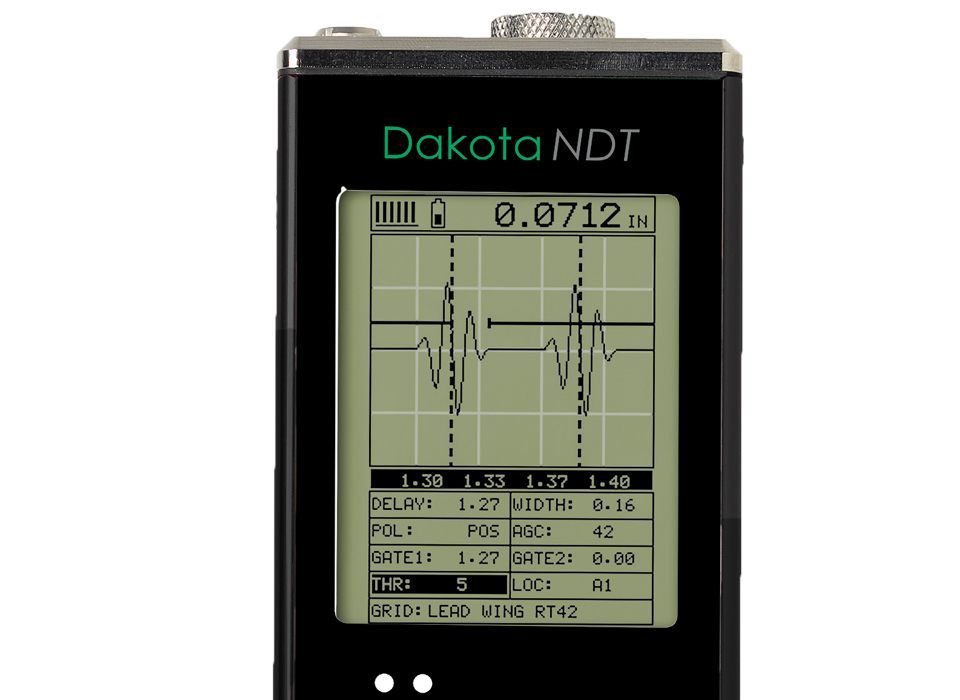

| Display: |
PMX2-DL: 1/8 VGA grayscale (240 x 160 pixels); Viewable area 2.4 x 1.8 in (62 x 45.7 mm); EL backlit (on/off/auto invert)

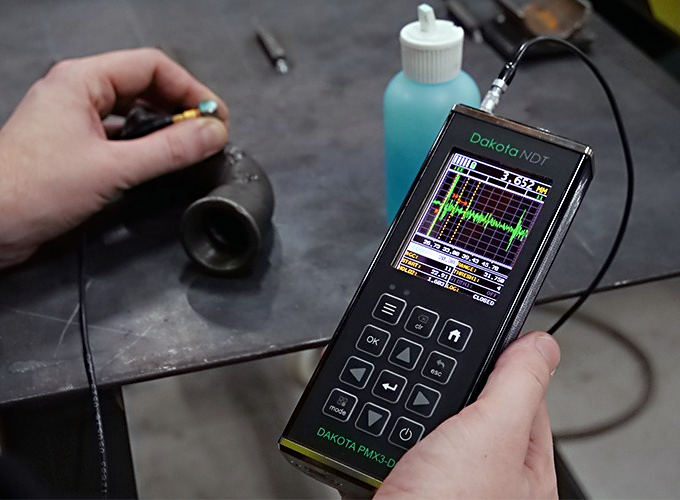

PMX3-DL: 1/4 VGA AMOLED color (320 x 240 pixels); Viewable area 1.7 x 2.27 in (43.2 x 57.6 mm); 60Hz screen refresh rate |
| Ultrasonic Specifications |
| Measurement Modes: |
Pulse-Echo (P-E): Contact transducers
Echo-Echo (E-E): Contact transducers
Echo-Echo Verify (E-EV): Contact transducers
Interface-Echo (I-E): Delay Line & Pencil transducers
Interface-Echo-Echo (I-E-E): Delay Line & Pencil transducers |
| Pulser: |
Square wave pulser with adjustable pulse width (spike, thin, wide); 100, 150 & 200 volts; Up to 250Hz pulse repetition rate |
| Receiver: |
Manual or AGC gain control with 110dB range (varies with mode); Adjustable damping: 35, 50, 75, 300, 600 & 1500 ohms |
| Timing: |
Precision TCXO timing with single shot 100MHz 8-bit ultra low power digitizer |
| Power Source |
| Line Power: |
USB-C to PC or power outlet |
| Batteries: |
Three AA cells
Alkaline: B&W 35 hrs / Color 12 hrs
NiCad: B&W 10 hrs / Color 5 hrs
NI-MH: B&W 35 hrs / Color 12 hrs
Power saving DIM (color); auto power off after 5 min idle; battery status icon |
| Measuring |
| Range: |
Interface-Echo Mode: Steel 0.050–1.0 in (1.27–25.4 mm); Plastics from 0.005 in (0.127 mm)
Interface-Echo-Echo Mode: Steel 0.006–0.500 in (0.152–12.7 mm)
Pulse-Echo Contact: Steel 0.040 in–30.0 ft (1 mm–9.1 m)
Echo-Echo Contact: Steel 0.100–3.0 ft (2.54–91.4 cm)
Echo-Echo Verify Contact: Steel 0.100–6.0 in (2.54–152.4 mm) |
| Resolution (Selectable): |
± 0.001 in (0.01 mm)
± 0.0001 in (0.001 mm) |
| Velocity Range: |
0.0122 to 0.7300 in/μs (309.9 to 18,542 m/sec) |
| Calibration: |
Single and two-point calibration, or selection of basic material types |
| Units: |
English & Metric |
| Display Views |
| A-Scan: |
Rectified +/- (flaw view) & RF (full waveform view); 25Hz refresh (B&W), 60Hz (color); Portrait & Landscape (color only) |
| B-Scan: |
Time-based cross section view; display speed variable (10 to 200 readings/sec) |
| Large Digits: |
Standard thickness view; Digit height: 0.400 in (10 mm) B&W / 0.565 in (14.35 mm) color |
| Scan Bar: |
Speed 10 to 33Hz; viewable in B-Scan and Large Digit views |
| Bar Graph: |
Measurement stability indicator |
| Memory |
| Log Formats: |
Grid (Alpha Numeric) or Sequential (Auto Identifier) |
| Capacity: |
4 Gb internal memory |
| Screen Capture: |
Bitmap graphic capture for quick documentation (.tif) |
| Transducer |
| Transducer Types: |
Single Contact, Delay Line & Pencil (1 to 25MHz) |
| Connector: |
Locking quick disconnect LEMO "00" |
| Cable: |
Standard 4 ft cable; custom transducers and cable lengths available |
| Features |
| Setups: |
64 custom user-defined setups |
| Gates: |
3 adjustable gates (depending on measure mode selected) |
| Alarm Mode: |
Hi and Lo tolerances with audible beeper and visual LEDs |
| Scan Mode: |
250 readings per second; displays minimum reading found when transducer is removed |
| Connections |
| Output: |
Direct USB-C 1.1 PC connectivity |
| Transducer Connector: |
LEMO 00 |
| Certification: |
Factory calibration traceable to NIST & MIL-STD-45662A |
| Warranty: |
2-year limited |
