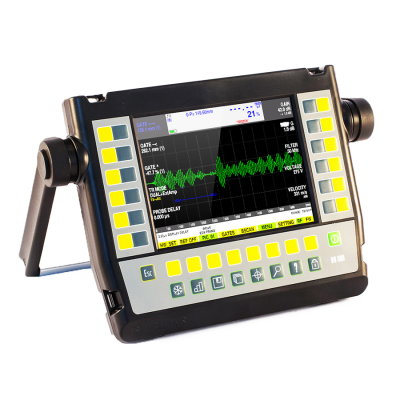

DIO 1000 SFE
Portable Digital Ultrasonic Flaw Detector

Best Value
More Features
Lowest Cost European made Instrument

starmans-dio-1000-sfe
AWS Welding Inspection

A new generation of electronic components, fast micro-processors and the long-term experience in the manufacture of ultrasonic instruments has enabled Starmans to develop a really advanced ultrasonic flaw detector in the DIO-1000-SFE Defectobook with optimum specification parameters and functions.

Main Features:

  • Trigonometric flaw location fuction with curvature correction automatically calculates depth, surface distance and sound path to flaw along with the leg of the inspection when using angle beam probes. All measurements can be displayed in inches, mm.
  • Standard DAC, JIS-DAC, DGS / AVG, API, Automatic Thickness Meter, Auto Gain and Auto Freeze.
  • Weld rating calculation simplifies the rating of indications in welds according to AWS Specification D1.1 Static and Dynamic.
  • The DIO 1000 offers a powerful, feature full digital design with the detailed dynamic echo information similar to the old analog look and performance, with a sampling rate of 200 MHz.
  • Direct access to 12 functions
  • The DIO 1000-SFE provides a perfect balance of ergonomics and functionality. Whether you are working in the factory, laboratory or outdoors, you will find that it has all the features that you need.
  • The simple mode is perfect for Level I applications like plate and bolt testing.

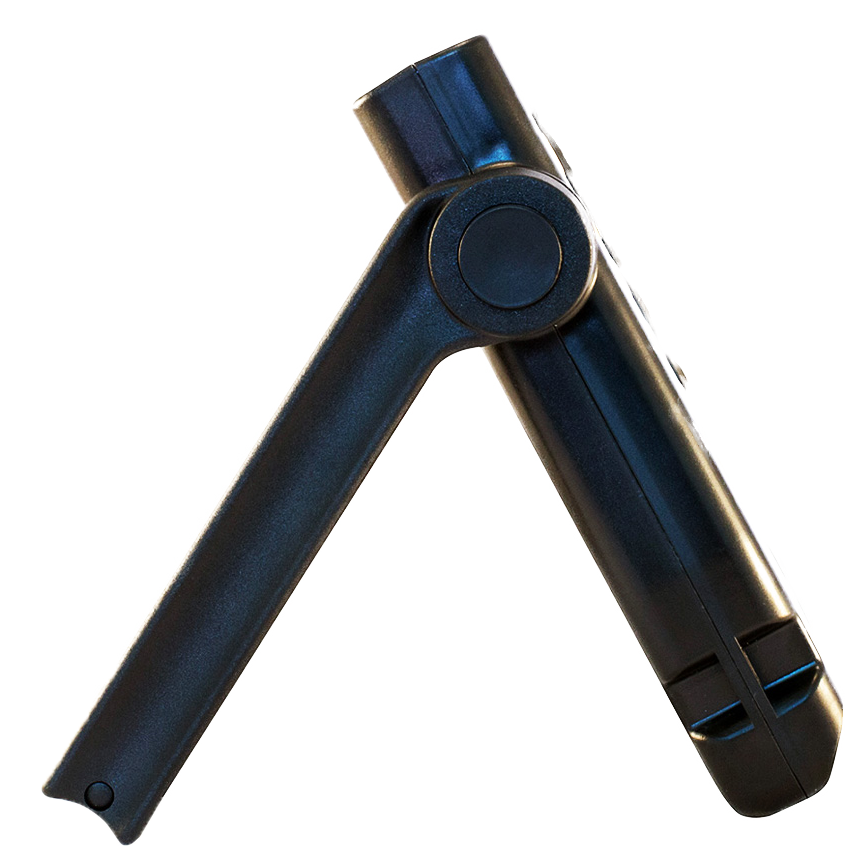

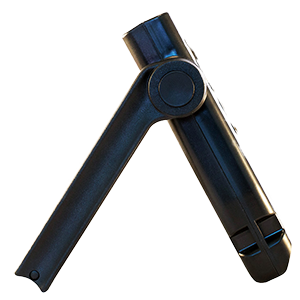

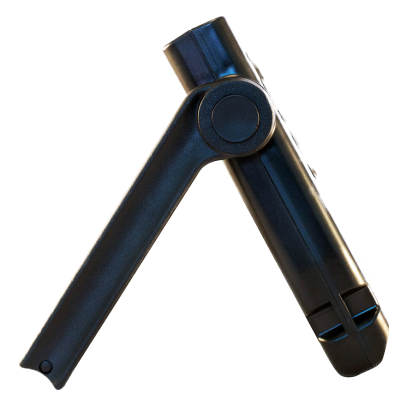

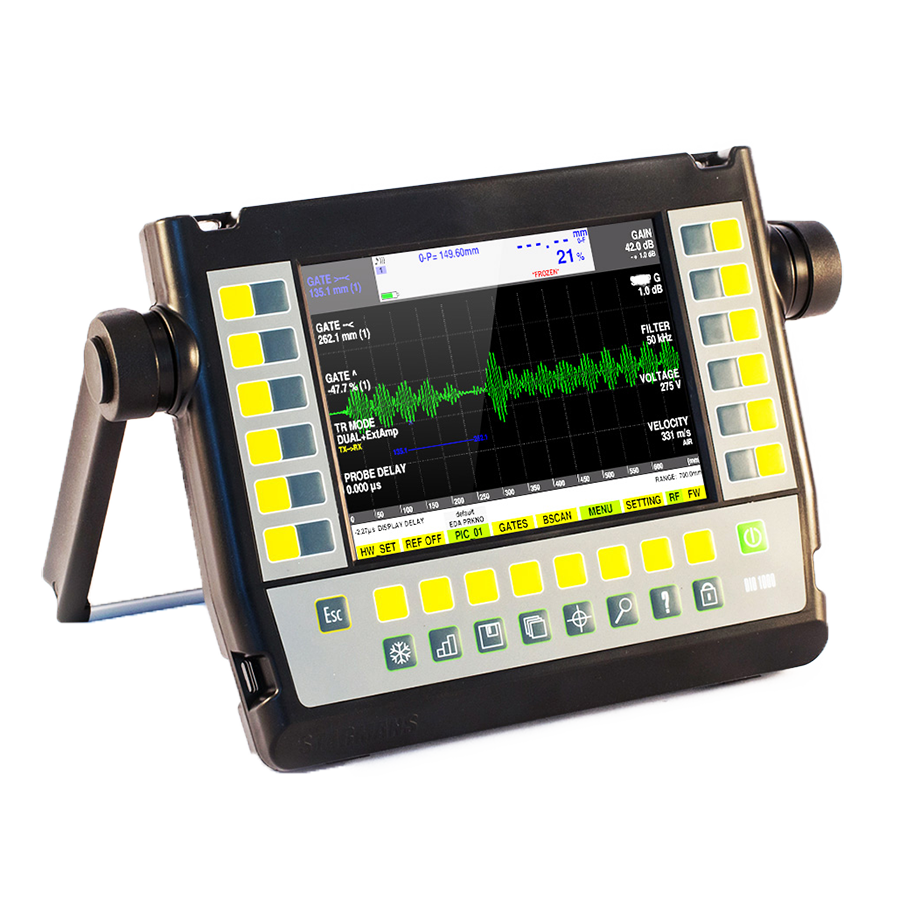

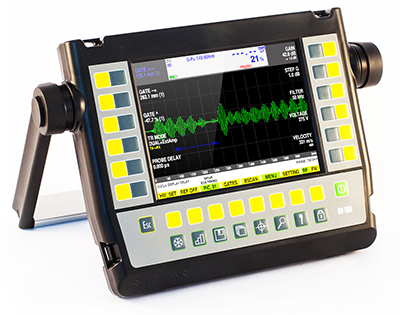

  • The adjustable handle provides stability on any surface, even on pipe.
  • Large, bright color LCD screen with 1024 x 768 pixels provides excellent visability in direct sunlight.
  • Lightweight: 3 lbs. (1.3 kg) and only 13/8" (34 mm) thick.
  • Tone Burst pulser is selectable and tunable for optimum probe matching to satisfy a wide range of tough-to-penetrate applications.
  • EMAT Option for non-contact testing
  • B-Scan imaging - thickness mode or RGB palette.


Specifications:

General Specifications:
Display: Color TFT sunlight, 1024 x 768 pixels minimum
Display Update Rate: 60 Hz
Display Dimensions: 3.9" x 5.1" / 99 x 130 mm
True Sampling Rate: 200 MHz, 12-bit
Operating Temperature: 14°F to 140°F / -10°C to 60°C
Storage Temperature: -40°F to 158°F / -40°C to 70°C
Power Requirements: AC Mains: 100 - 120 VAC, 200 - 240 VAC, 50 - 60 Hz
Battery: Built-in rechargeable Li-ion battery pack rated at 3.6 V at 16 Ah
Battery Operating Time: 10 hours, depending on display brightness
Keypad: Graphic symbols, international
Languages: Selectable in menu, user-defined custom languages
Memory: 2 -16 GB
Dimensions: 8.8" x 7.4" x 1.3" / 224 x 188 x 34 mm
Weight: 2.8 lbs. / 1.3 Kg battery for 10 working hours
PC Requirements: PC running minimum Microsoft® Windows® Vista®, Microsoft® Windows® XP®, Microsoft® Windows® 2000®
Warranty: Two Year warranty, battery not included. Optional Three Year warranty available
Input / Output:
Transducer Cable Connectors: Lemo 1®
Communication Ports: USB, RS232, Ethernet, Wireless Ethernet (optional), Bluetooth (optional)
B-Scan Input: Encoder, A, B - pulses. Start, TTL 5 V, Encoder supply - switchable 5V
High Speed Parallel and TTL Port: Alarm outputs, trigger in / out control
Analog Output: Selectable voltage output of depth or amplitude data
Pulser:
Peak Memory: Pulse repetition rate up to 2 kHz and peak envelope of A-Scan display
Pulser Type: User selectable: Tunable square wave, negative spike excitation, burst
Pulser Energy: Low (100 V) and Max (400 V)
Damping: 50, 57, 200 and 1000 ohms
Receiver:
Gain Control: 110 dB Max and reference gain, level control in 6 dB, 1 dB, 0.5 dB and 0.1 dB
selectable steps 0 - 80% of full scale in 1% increments
Reject: Full Wave, Half Wave Positive or Negative rectified and RF waveform
Rectification: 0.5 MHz to 30 MHz at -3 dB
Receiver Bandwidth: Broadband, Narrowband or Custom Selectable Low and High Pass Filters
Filters: 1 MHz, 2 MHz, 2.25 MHz, 4 MHz, 5 MHz, 10 MHz
Calibration:
Auto Transducer Calibration: Automated calibration of transducer, zero offset and / or velocity
Units: Metric or microseconds
Material Velocity: From 100 to 15240 m/s in steel
Range: Standard 0.04" to 2362" / 1 mm to 60 m in steel
Refracted Angle: Fixed settings of 0°, 30°, 45°, 60°, 70° or variable 10° to 90° in 0.1° steps
Test Modes: Pulse Echo, Dual or Through Transmission
Gates:
Gate Monitors: Four independent flaw gates controllable over entire sweep range - Floating gate, Interface gate, Measuring gate (relative, absolute, amplitude, time), Back-wall echo attenuator.
Alarms: Selectable threshold positive / negative or minimum depth modes
Measurements:
A-Scan Memory: 40,000 A-Scans (up to 200,000 optional) - print-screen, PNG, A-Scan, setup
B-Scan Memory: 10 km of B-Scan, 1 mm resolution
Peak Hold: Freezes Peak Memory echo envelope for recorded waveform comparison with live A-Scan
Auto Gate: Thickness
DAC: Standard, up to 20 points, 11 dB dynamic range (71 dB continual)
TCG: For echo amplitude adjustment and evaluation
Curvature Correction: Automatically
Spot Weld: Auto Gain echo, Auto Freeze

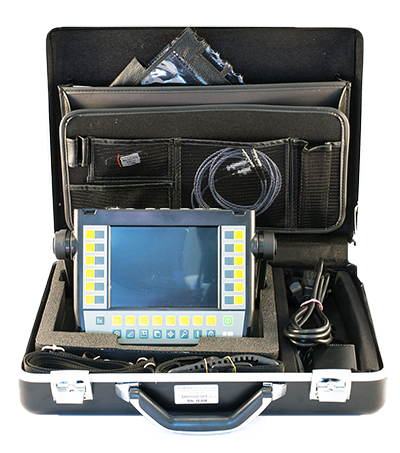

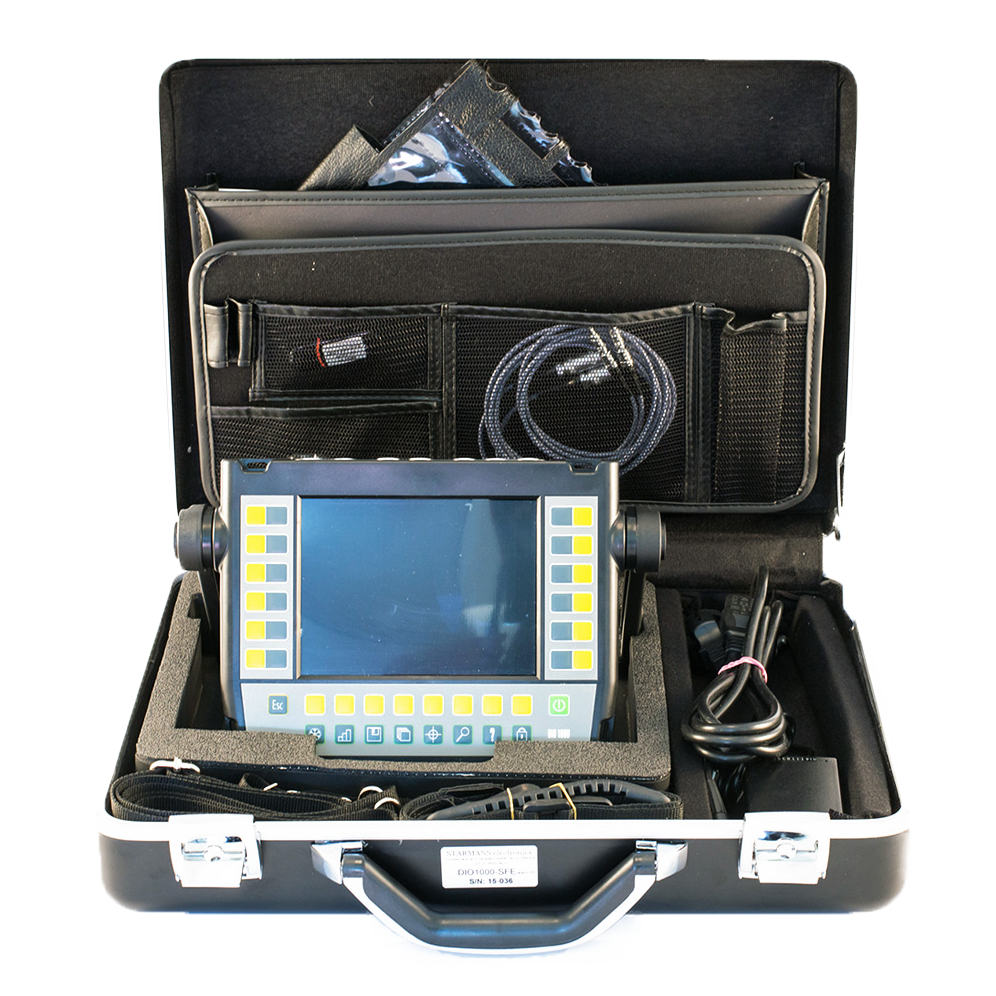

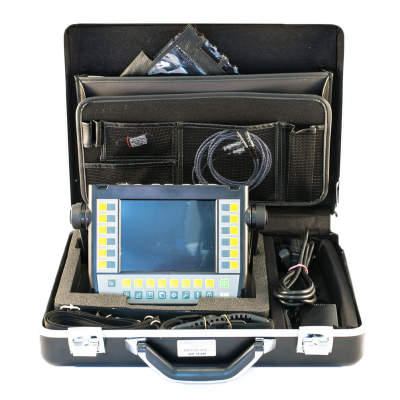

Starmans DIO SFE Kit Includes:

  • Ultrasonic Flaw Detector DIO 1000 SFE
  • Internal Li-ion Battery
  • Power Supply 80-240 VAC, 50/60 Hz
  • Cable Lemo 1 to BNC
  • Cable Lemo 1 to Microdot
  • USB Cable
  • Aluminum Case with Strap
  • Soft Case with Strap
  • USB Key with Manual
starmans-dio-1000-sfe-kit
