Sherwin High Temperature Visible Penetrant

Sherwin High Temperature Visible Penetrant

Penetrant for Rapid Weldment Inspections

Overview

Sherwin High Temperature Visible Penetrants are ideal for finding flaws on surfaces at elevated temperature, and are up to low sulfur/ low halogen requirements. There are three steps in the inspection process that allow for surface inspections up to 350 degrees Fahrenheit.

Step 1:

KO-017 Penetrant

Application & Dwell

Step 2:

KO-19 Remover

Removal via towel/ cloth

Step 3:

D-350 Developer

Develop

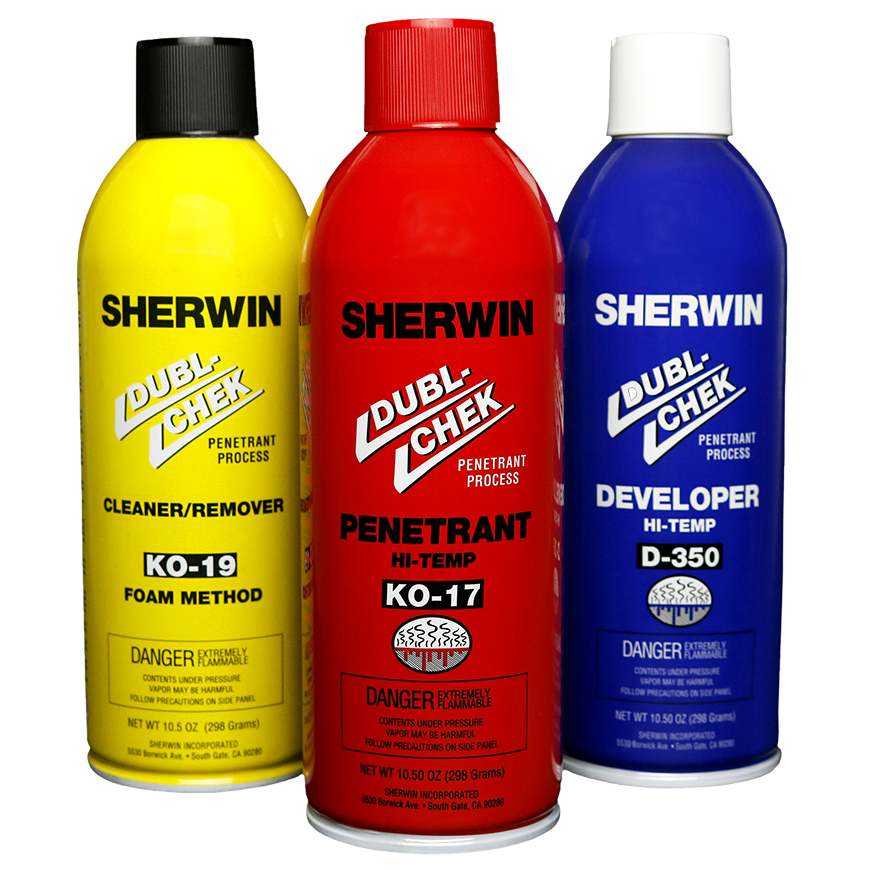

KO-017 Penetrant KO-19-Remover D-350-Developer

Penetrant System Category:
Visible Type 2 Water-Washable
(Methods A & C)

Specifications:
QPL SAE AMS 2644 A & C
ASTM E165

Technical Data Sheet

Penetrant System Category:
Removers and Emulsifiers Solvent Removers (Method C)
Specifications:
           QPL SAE AMS 2644 Class 2

Technical Data Sheet

Penetrant System Category:
Developer Non-Aquaeous Form D & E
Specifications:
QPL SAE AMS 2644 Form D & E
                       ASTM E165

Technical Data Sheet

Description Part # Saved Price Select Option Add to
Sherwin KO-17 Hi-Temp Penetrant (select packaging)
Model #
PT-SN-KO17-Master $208.00
Sherwin KO-19 Hi-Temp Remover (select packaging)
Model #
PT-SN-KO19-Master $192.00

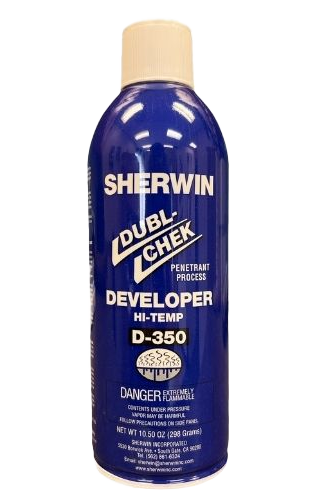

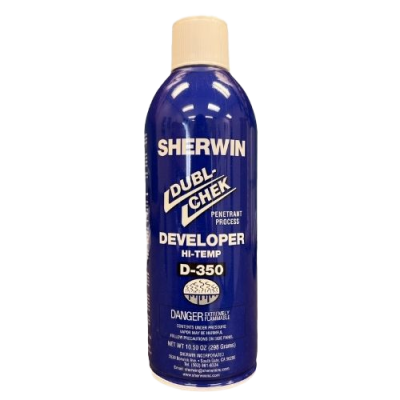

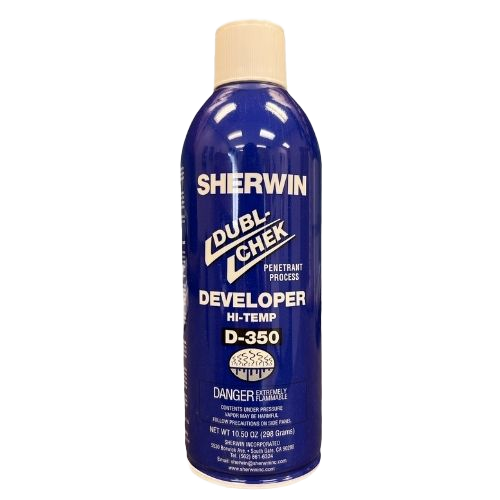

Sherwin D-350 Hi-Temp Developer (select packaging)
Model #
PT-SN-D350-Master $216.00
