The INDUSTREX HPX-1 Plus Digital System is ideal for a lab environment where high-resolution is critical with adjustable PMT and laser power to fine tune every image for optimum capture every time. This CR system has a wide dynamic range with high sensitivity, making it suitable for almost any type of imaging application. The HPX-1 Plus is a full width CR reader capable of running the longest plates in the industry – up to 85 inches (216 cm) – with an imaging plate transport system specifically designed to protect imaging plates for longer life. It offers 30% faster throughput on long saturated plates (very high exposure) and accepts custom cut plates and rigid cassettes. Whether you’re using a gamma or X-ray source, the HPX-1 Plus high sensitivity can help reduce shot time. It shows exceptional performance in weld applications, delivering quality images consistently and dependably.

Features

Ultra High Image Quality

Pixel Pitch: 25 µm, 35 µm, 50 µm and 100 µm operation
Spatial Resolution: 50 µm (10 lp/mm)

Positive Pressure Fans and Dual Air Filters to keep contaminants out of the unit

Image Plate Flexibility - Capable of handling single plates, multiple plates at one time, custom cut sizes (with plate carrier), imaging plates in rigid cassettes and long plates up to 85 inches (216 cm) without special feed guides

Plate Transport System - extends plate life-cycle by minimizing contact with the imaging plate

Fine Tune Imaging - HPX-1 Plus optics improve sensitivity and reduce unwanted artifacts. CR systems often make it possible to lower your exposure while still achieving the required sensitivity. Our adjustable PMT and Laser Power allow you to fine-tune images for optimum capture

Shot Time Improvement - Shoot faster, radiate less and keep your source longer

Easy to Install and Set Up - Industrex software is DICONDE compliant and designed for optimizing workflow to improve productivity

Customized Reporting - Create a customized job report by simply selecting the shots to be included and click “create report”

Built for NDT

Dual Layered HEPA Air Filters feed clean air to the system

Positive Airflow - Three large fans blow positive air through the unit to keep contaminants out

Sturdy Knights Armor colored molded outer shell for protection in rugged environments

Vibration Absorbing Feet - Minimizes vibration artifacts and reduces maintenance issues

Plate Transport - Low contact design minimizes damage to imaging plates

Halogen Erase Lights - extra bright to minimize ghost images, even on saturated plates

SmartErase - System will check plates after scanning and during the erase cycle automatically to adjust and optimize erase level

Integrated brushes and seals keep environmental light and dirt out

Withstood 100 g impact force drop test and variable amplitude and frequency vibration test

Industrex Digital Viewing Software

The HPX-1 Plus runs on Industrex Digital Viewing Software, an all-in-one software enabling customers to standardize on one software platform both CR and DR inspection. The software platform was developed for ease-of-use to reduce operator training and equipment onboarding time, thus reducing risk of error and increasing profitability. Incorporates industry-leading image analysis tools, file sharing and storage management features.

Accessories

Diagnostic Tool

The HPX-1 Diagnostic Tool reduces your risk on any project by eliminating the guesswork surrounding system calibration. The Diagnostic Tool is simple to use, reducing the traditionally complex task of checking system calibration down to only a few minutes and the click of a button.

Digital Plate Carrier

Scan small or irregular shaped imaging plates using your HPX-1 Digital System. Its easy-to-use design will have you up and running in minutes. No matter what the shape (as small as 1”x1”), the carrier will deliver.

Flex GP, HR & XL Digital Imaging Plates

They offer the flexibility of film without the need for wet processing, allowing you to capture and read images quickly and easily both in the field and in the lab. The images can be optimized if needed and stored or shared digitally.

Technical Specifications

HPX-1 Plus Specifications

System Type	Computed Radiography (CR)
Scanning Capture	16 bit linear or 12 bit log
Single Plate Throughput	66 plates/hour for qty (1) - 14 x 17 in @ 100 µm 33 plates/hour for qty (1) - 14 x 17 in @ 50 µm
Multi-Plate Scan Throughput	274 plates/hour for qty (3) - 4.5 x 10 in @ 100 µm 151 plates/hour for qty (3) - 4.5 x 10 in @ 50 µm
Imaging Media	Accepts both rigid cassettes and flexible plates
Multi Plate Scanning	Can scan multiple plates simultaneously without carrier or adaptors
Laser Intensity	User selectable laser intensity
Pixel Pitch	25 µm, 35 µm, 50 µm, 100 µm
Spatial Resolution	50 µm (10 lp/mm)
Operating Modes	Scan and Erase \| Erase only \| Scan and hold for preview before deciding to erase
Erase	Smart Erase Halogen System: applies only the erase needed based on dose
Erase Speed	Automatically varies from 0.2 to 2.2 seconds per inch travel
Feed Mechanism	Internal horizontal roller pairs. Protected from dirt ingress to prolong plate life.
Connectivity	Ethernet connection standard (1 Gb/s)
Network	DICONDE compliant
Air Flow	Filtered, positive air pressure in scanner keeps damaging particulates out
Mirror Surfaces	Face downwards eliminating gravity driven particulates
Maintenance	User serviceable wear parts
Calibration	Fully factory calibrated and ready to operate
Software	INDUSTREX (Turnkey ready, Windows 10 64 bit)
Filter	EDGE is a unique display filter which runs without modifying the original image data Image is adjustable with a variety of pre-defined or user customizable settings
Chassis	Rigid aluminum construction with vibration damping feet
Power	100-240 VAC (Automatic Level Sensing)
Warranty	1 Year Parts and Labor
Installation	Ships complete and can be easily and quickly installed on-site by the customer
Dimensions	26 in (66 cm) x 23 in (58.4 cm) x 17.5 in (44.5 cm)
Weight	120 lb (54.4 kg)
Certification	The HPX-1 Plus Digital System has been BAM certified with our HR and XL Blue imaging plates, certificates BAM/ZBF/001/18 and BAM/ZBF/002/18 respectively. Our system meets requirements according to EN 14784-1:2005, ISO 16371-1:2011 and ASTM E2446-16.

Rigid Cassette and Flexible Plate Sizes

Rigid Cassette Sizes:

10 x 8 in
10 x 12 in
14 x 17 in

Flexible Plate Sizes:

10 x 8 in
3.5 x 10 in
4.5 x 10 in
10 x 12 in
3.5 x 17 in
4.5 x 17 in
7 x 17 in
14 x 17 in
14 x 36 in
14 x 51 in
14 x 60 in
10 cm x 24 cm
30 cm x 40 cm
10 cm x 40 cm
70 mm x 10 in
70 mm x 17 in

Custom plate sizes available on request

Description	Part #	Saved	Price	Select Option	Add to
Carestream Industrex HPX-1 Plus Digital CR System, Includes 1 Year Warranty	RT-CA-HPX-1-PLUS		Request Pricing

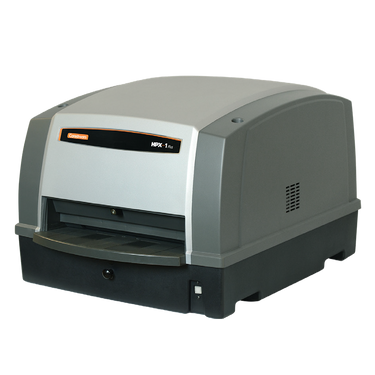

Industrex HPX-1 Plus Digital CR System

30% Faster Throughput on Long Saturated Plates, Improved Imaging Plate Transport System and Higher Mechanical Reliability Makes the HPX-1 Plus an Award-Winning Industry Leader in Digital Imaging
