Carestream Industrex Digital Imaging Plates

Carestream Industrex Digital Imaging Plates

CR Applications Made Easy

Carestream Industrex Digital Imaging Plates are designed for computed radiography in NDT applications. They offer the flexibility of film without the need for wet processing, allowing you to capture and read images quickly and easily both in the field and in the lab. The images can be optimized if needed and stored or shared digitally.

Flex GP, HR, HR-PRO, and XL Blue imaging plates offered for a range of signal to noise and sharpness. The HR-PRO Plate is designed with improved physical properties for use in HPX-PRO Readers in tough handling environments. Available in a range of sizes.

Features

  • Flexible – wraps around most shapes
  • Sharp – better resolution than high-speed films, and a suitable replacement for many applications
  • Available in multiple sizes – to cover a wide range of applications
  • Versatile – use in a rigid or flexible cassette
  • Efficient – phosphor plates can be erased and reused thousands of times, require less exposure than film, and provide faster image access
  • Certified – when used with Carestream Industrex HPX-1 Plus Digital Systems, all plates meet requirements for the highest system class per EN 14784-1 and ASTM E 2446
  • HR and XL Blue imaging plates have been BAM Design-type tested in the HPX-1 Plus Digital System

Applications

Carestream Industrex Digital Imaging Plates are available in many sizes, and are designed for a wide variety of NDT applications, including:

  • Castings
  • Erosion and Corrosion
  • Pipeline Inspection
  • Welded Fabrication

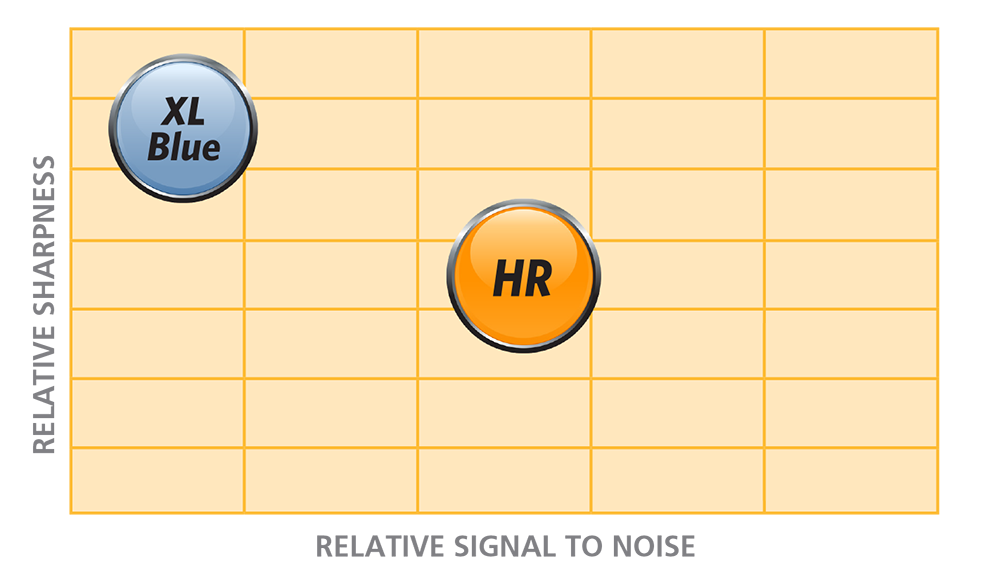

Digital Imaging Plates Comparison

General Purpose (GP) features very low noise. XL Blue digital imaging plates feature approximately 35% higher resolution than our Flex HR plate with the right shot quality, spatial frequency, beam conditions and energy.

Available Sizes

GP General Purpose Sizes



Size Part Number
4.5" x 10" RT-CA-1004266
4.5" x 17" RT-CA-8584534
5" x 7" RT-CA-1880723
7" x 17" RT-CA-1355478
8" x 10" RT-CA-8520454
10" x 12" RT-CA-8640344
14" x 17" RT-CA-1008564
HR High Resolution Sizes



Size Part Number
70mm x 10" RT-CA-8802324
70mm x 17" RT-CA-8348641
70mm x 24" RT-CA-1006105
70mm x 36" RT-CA-1004746
70mm x 60 RT-CA-1035112
3.5" x 10" RT-CA-8094922
3.5" x 17" RT-CA-1904267
4.5" x 10" RT-CA-1680214
4.5" x 17" RT-CA-1466945
5" x 7" RT-CA-8491615
7" x 17" RT-CA-1848688
8" x 10" RT-CA-1775576
10" x 12" RT-CA-1174424
14" x 17" RT-CA-8360521
HR-PRO Sizes



Size Part Number
70mm x 10" RT-CA-1752955
70mm x 17" RT-CA-1752971
3.5" x 10" RT-CA-1753110
3.5" x 17" RT-CA-1753136
4.5" x 10" RT-CA-1753235
4.5" x 17" RT-CA-1753243
6" x 17" RT-CA-1753292
XL BLUE Sizes

Size Part #
70mm x 10" RT-CA-1012707
70mm x 17" RT-CA-1012715
70mm x 24" RT-CA-1012756
70mm x 36" RT-CA-1012749
3.5" x 10" RT-CA-1012699
4.5" x 10" RT-CA-1012624
4.5" x 17" RT-CA-1012608
5" x 7" RT-CA-1012681
7" x 17" RT-CA-1012640
8" x 10" RT-CA-1012632
10" x 12" RT-CA-10126574
14" x 17" RT-CA-1012665
14" x 36" RT-CA-1012590
14" x 60" RT-CA-1012657

Product Literature

Description Part # Saved Price Select Option Add to
Carestream Industrex General Purpose (GP) Digital Imaging Plates (qty 1-4)(Select Size)
Model #
RT-CA-GP-1-Master
$340.00
Carestream Industrex General Purpose (GP) Digital Imaging Plates (qty 5-25)(Select Size)
Model #
RT-CA-GP-5-Master
$325.00
Carestream Industrex General Purpose (GP) Digital Imaging Plates (qty 25+)(Select Size)
Model #
RT-CA-GP-25-Master
$250.00
Carestream Industrex High Resolution (HR) Digital Imaging Plates (qty 1-4)(Select Size)
Model #
RT-CA-HR-1-Master
$285.00
Carestream Industrex High Resolution (HR) Digital Imaging Plates (qty 5-25)(Select Size)
Model #
RT-CA-HR-5-Master
$270.00
Carestream Industrex High Resolution (HR) Digital Imaging Plates (qty 25+)(Select Size)
Model #
RT-CA-HR-25-Master
$210.00
Carestream Industrex HR-PRO Digital Imaging Plates (qty 1-4)(Select Size)
Model #
RT-CA-HR-PRO-1-Master
$340.00
Carestream Industrex HR-PRO Digital Imaging Plates (qty 5-25)(Select Size)
Model #
RT-CA-HR-PRO-5-Master
$320.00
Carestream Industrex HR-PRO Digital Imaging Plates (qty 25+)(Select Size)
Model #
RT-CA-HR-PRO-25-Master
$250.00
Carestream Industrex XL BLUE Digital Imaging Plates (qty 1-4)(Select Size)
Model #
RT-CA-BLUE-1-Master
$315.00
Carestream Industrex XL BLUE Digital Imaging Plates (qty 5-25)(Select Size)
Model #
RT-CA-BLUE-5-Master
$300.00
Carestream Industrex XL BLUE Digital Imaging Plates (qty 25+)(Select Size)
Model #
RT-CA-BLUE-25-Master
$230.00
