Parker Research B-200 AC Contour Probe

Parker Research B-200 AC Contour Probe

Parker Research B-200 AC Contour Probe

arker b200

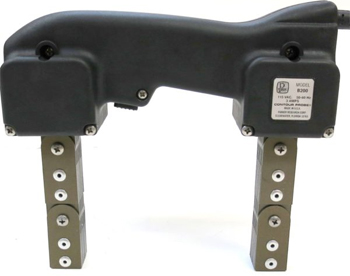

The B-200 Contour Probe is a rugged, high performance instrument for magnetic particle inspection. The unit includes Parker's original flexible fully adjustable leg design that allows the field to be "focused" at a precise area of inspection, regardless of part size or mass. One person can take it to work and easily perform a thorough and reliable inspection in a fraction of the time consumed by large bulky equipment. All the power and durability of the original B100, the B200 was designed with operator comfort in mind. Dual coils reduce outward heating and maintain a powerful AC field. A slim line ergonomic handle and oversized operating switch provides a comfortable grip and is ideally suited for lengthy inspection applications.

Features:


  • Handheld AC Magnetic Yoke
  • Powerful AC Magnetic Field
  • Units are available in 115 VAC
  • Slim line ergonomic handle
  • Oversized operating switch
  • Lightweight
  • Durable molded construction
  • Totally repairable
  • 1-year guarantee
  • 230VAC Model can be certified at an additional cost



Model Power Requirements Field Weight
B200 115 VAC
50 - 60 Hz
3 Amps
AC

7 lbs. (3.18 kg)

B200S 230 VAC
50 - 60 Hz
2 Amps
AC

7 lbs. (3.18 kg)



Contour Steel Case Kit A Includes:

  • Steel Carrying Case
  • 1 lb. Red Powder
  • 1 lb. Gray Powder
  • PB1 Powder Blower
parker a kit

Contour Plastic Case Kit A Includes:

  • Plastic Carrying Case
  • 1 lb. Red Powder
  • 1 lb. Gray Powder
  • PB1 Powder Blower
arker pl-a kit

Product Literature

Description Part # Saved Price Add to
B-200 AC Yoke, 115 VAC MT-PR-B200 $463.00 $421.00
B-200S AC Yoke, 230 VAC MT-PR-B200S $463.00 $421.00
Y-200 Yoke Light MT-PR-Y200 $39.00
A Kit MT-PR-A-KIT $148.00
Plastic A Kit MT-PR-PL-A-KIT $116.50
Small Plastic Case MT-PR-C-CASE $47.50
Large Rugged Plastic Case MT-PR-PL-CASE $90.50
