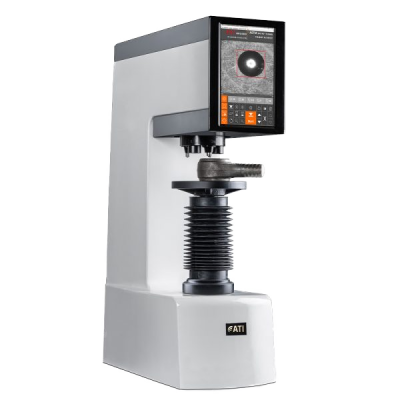

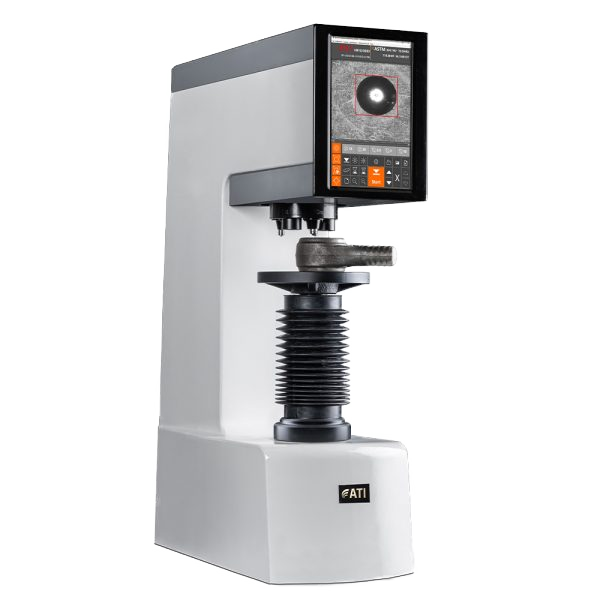

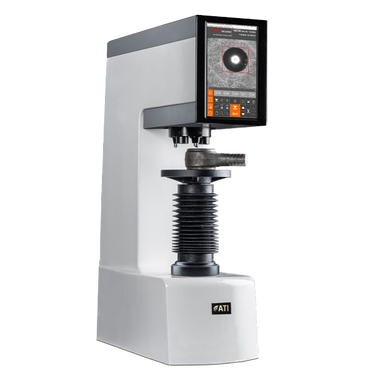

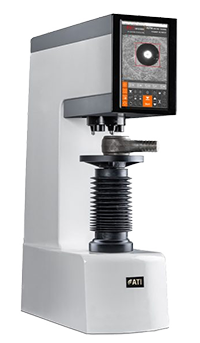

ATI B3000 is an automatic Brinell hardness tester, it is very easy to use, making it the best choice for efficient measuring of any surface on large or small products. Simply select the desired hardness scale and press the START button. The tester automatically positions the test piece against the indenter, initiating the loading cycle with no manual effort required. The integrated turret efficiently manages the indenter and objective switching, ensuring seamless operation. By touching the indentation image, you can instantly view the results on the large graphic display. Once the measurement is complete, the ATI B3000 is ready for the next test, enhancing your productivity. The ATI B3000 hardness tester is the ideal solution for accurately measuring hardness on various surfaces, whether large or small products.

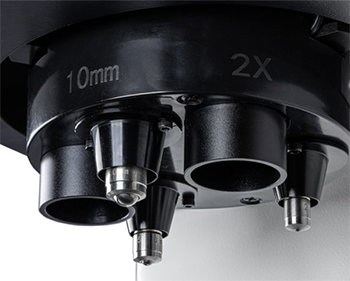

ATI B3000 is equipped with a multi-position automatic turret with 3 indenters for Brinell hardness tests and 2 optic lens for the indentation reading (20X, 40X). The turret has a 360° horizontal rotation with indenter and lens. During the Brinell test cycle, ATI B3000 is fully autonomous and motorized; just push the START button and the head performs the test cycle in automatic succession without skipping a phase and with automatic switching for a fully automatic motorized test cycle.

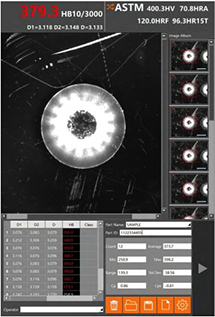

The software makes the measurement automated in each phase. Set the hardness test scales, check the camera properties, set the standard test method, conversion scales, manage the instrument tools and check if the installed instrument is correct and compliant with the selected hardness test method. The lists of results and their images are stored in the archive. The results are automatically transformed into graphs and statistics. Data can be exported by USB.
| Brinell hardness scales: | HBW 2.5/62.5 , HBW 2.5/187.5 , HBW 5/62.5 , HBW 5/250 , HBW 5/750 , HBW 10/100 , HBW 10/500 , HBW 10/1500 , HBW 10/3000 |
| Test force (kgf): | 62.5 Kgf (612.9N), 100 Kgf (980.7N), 125 Kgf (1226N), 187.5 Kgf (1839N), 250 Kgf (2452N), 500 Kgf (4903N), 750 Kgf (4905n), 1000 Kgf (7905n), 1500 Kgf (14710N), 3000 Kgf (29420N) |
| Loading system: | Electronic control of load cells in “Closed-Loop” |
| Auto turret standard: | 2 steps (1indenter / 1 optical len 20X) |
| Auto turret as option: | 5 steps (3 indenters / 2optic lens 20X 40X) |
| Auto turret rotation: | Horizontally 360° (2 steps or 5 steps) |
| Compliance standards: | ISO 6506, ASTM E10 and equivalents |
| Accuracy: | Accuracy better than 1% (62.5 – 3000 Kgf); Accuracy better than 0.5% (500 – 3000 Kgf) |
| Measuring device resolution: | 0.1 μm |
| Dwell time: | 0-99 seconds |
| Height capacity: | 310 mm |
| Depth capacity: | 250 mm |
| Measuring range: | 15.9 - 650 HBW (ASTM E10 (Recommended effective hardness value) |
| Camera Resolution: | 1.2 Mega Pixel |
| Measurement Methods: | Manual and Automatic |
| Data Storage: | The measured values are stored in EXCEL format on a USB Flash Drive |
| Power Supply: | 220 V - 50/60 Hz single phase |
| Total Dimensions: | 47" x 47" x 65" (120 x 120 x 160 cm) |
| Weight: | 160 / 200 kg |
