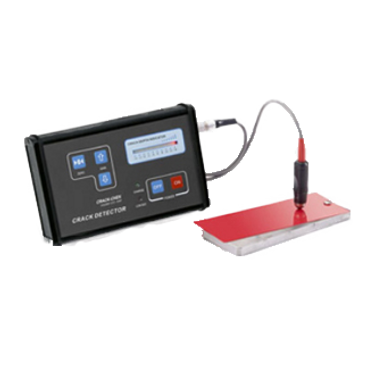

NDTS CC-100 Surface Crack Detector

NDTS CC-100 Surface Crack Detector

Overview

The CC-100 Surface Crack Indicator uses an Eddy Current technique for detecting fatigue cracks in ferrous welds or raw material. It greatly reduces the time and cost of inspection better than the alternative techniques that require paint removal. Faster, easier and cleaner than magnetic particle or dye penetrant inspection.

Features

  • Portable and lightweight - less than 10.5 oz. (300g)
  • Fast and accurate
  • LED and alarm display when defect is found in material or weld.
  • Detects surface breaking fatigue cracks through 2mm paint
  • Easy to use, no special training needed
  • Battery operated; runs continuously for 20 hrs.
  • IP65 Rated Case Design - Aluminum and waterproof

Applications

  • bridges, towers, buildings and other structures
  • Amusement park rides
  • Mining and digging equipment
  • Cranes and other lifting equipment
  • Ships and tanks
  • Pipelines, pressure vessels and oil field equipment

Kit Includes

CC-100 Standard Kit Includes

  • CC-100 unit
  • Probe
  • Test Block
  • Charger
  • Carrying Case
Description Part # Saved Price Select Option Add to
NDTS CC-100 Standard Kit Includes: Unit, Probe, Test Block, Charger and Carrying Case EM-NDTS-CC100
$3,575.00
Roller Probe for CC-100 / CC-1000 EM-NDTS-CC-100-RP
$950.00
Spare/Replacement Standard Pencil Probe EM-NDTS-CC-100-PS
$825.00
