ETher NDE SigmaCheck 2

ETher NDE SigmaCheck 2

Designed and produced by the people who created and manufactured the original Hocking AutoSigma 3000

NDT Supply is the Master Distributor for Ether NDE’s SigmaCheck Conductivity Meter

Speed and Accuracy at a Reasonable Price

The SigmaCheck 2 Eddy Current Conductivity Meter is designed to provide the user with fast and accurate conductivity measurements, while offering the best in reliability, usability, technology and cost effectiveness. The SigmaCheck 2 is easy to use, whether you are a shop inspector or an engineer.

It meets the requirements for conductivity measurements in the Aircraft manufacture and maintenance fields, where conductivity measurements are used to verify proper alloy/ temper or detect heat damaged components. It is also useful to determine the purity of precious metals or whether they are counterfeit.

Applications

  • Material verification / sorting
  • Heat treatment verification
  • Heat or fire damage investigation
  • Lightning damage investigation
  • Material aging assessment
  • Measuring phosphor content of Cu Alloys
  • Monitoring of deposition process for non-ferrous material on a non-ferrous substrate
  • Monitoring the condition of highly stressed parts
  • Forged / plated material verification
  • Non-conductive coating thickness measurement
  • Determining the purity / composition of materials i.e. gold bullion and coins
  • Aircraft structures e.g. Paint thickness measurement
  • Assessment of aging of alloys

Instruments

Features SigmaCheck2 SigmaCheck2 (RS232) SigmaCheck2
(New 2023)		 SigmaCheck2 (RS232)
(New 2023)
Kit Part No.
(Instrument Part No.)		 KISIG001A (ISIG001A) - NIST
KISIG003A (ISIG001A) - NPL		 KISIG002A (ISIG002A) - NIST
KISIG004A (ISIG002A) - NPL		 KISIG001B (ISIG001B) - NIST
KISIG003B (ISIG001B) - NPL		 KISIG002B (ISIG002B) - NIST
KISIG004B (ISIG002B) - NPL

Operating Frequency - 60 kHz, 120 kHz, 240 kHz, 480 kHz.
Option of 960 kHz.

Accuracy - At 20°C: 0-20% IACS: +/- 0.05 IACS. At 20°C: >20% IACS +/- 0.25% of readout.

Probes - Dia. 13mm, Dia. 8mm

 ✔ ✔ ✔ ✔
RS232   ✔   ✔
Battery X2 AA NiMH Rechargeable
Batteries or X2 AA Non-
Rechargeable Batteries		 X2 AA NiMH Rechargeable
Batteries or X2 AA Non-
Rechargeable Batteries		 X1 Internal Lithium-Ion
Rechargeable Battery		 X1 Internal Lithium-Ion
Rechargeable Battery
Data Logger 2 GB 2 GB 32 GB 32 GB
PC/Charger Connectivity Mini B - USB Mini B - USB Micro - USB Micro - USB
Accessory Part Number Compatibility
13mm Probe PSIG001A PSIG001A PSIG001A PSIG001A
8mm Probe PSIG002A PSIG002A PSIG002A PSIG002A
Probe Lead ALL05-L05-012-SIGA ALL05-L05-012-SIGA ALL05-L05-012-SIGA ALL05-L05-012-SIGA
Standard Hard Carry Case AC011 AC011 AC011 AC011
Peli Hard Carry Case ASIG004 ASIG004 ASIG004 ASIG004
X2 Ergonomic Probe Skirts 30239 30239 30239 30239
Power Supply A092 A092 A092 A092
USB Lead A090 A090 A090 A090
Red Rubber Boot 40222 40222 40222 40222
Dual Reference Standard Nickel Nominal Value 9.4% IACS (Nickel Silver) & Nominal Value 58.8% IACS (Aluminum Alloy) ASIG014 – NIST
ASIG015 - NPL		 ASIG014 – NIST
ASIG015 - NPL		 ASIG014B – NIST
ASIG015B - NPL		 ASIG014B - NIST
ASIG015B - NPL
Quick Reference Card 40293 40293 41219 41219
Manual 50024 50024 50025 50025
Reference Holder (Thermal Bridge) N/A 40517 N/A 40517
RS232 Lead N/A ALL03-D09-SIG N/A ALL03-D09-SIG

Probes

Each probe is supplied with an SD card, which holds the probe's characteristics. This is then inserted into the SigmaCheck being used.

Compatibility Notes

  • PSIG001 & PSIG002 are obsolete. PSIG001A and PSIG002A can be used with 1st Generation instruments, but the instrument must be sent back to the factory in the UK for factory remapping of the probe to the instrument it will be used with.
  • PSIG001A, PSIG002A and PSIG003A probes are compatible with both 2nd Generation (KISIG001A) and 3rd Generation (KISIG001B) instruments. Probes must be factory mapped to the instrument they will be used with.
  • For reference, any new probe shipped from ETher will have an "A" or "B" engraved on it (example below) indicating which instrument is has been mapped on:
    • Old Instrument - ISIG001A - "A"
    • New Instrument - ISIG001B - "B"
    • Very Old Instrument - ISIG001 - Blank
  • Interchangeability: It is possible to have multiple probes mapped to the same instrument and to change between them quickly by selecting the associated probe in the probe menu. For this to happen, all probe map files must be saved on the same SD card.

Contact Us for more information and pricing to remap probes if required:
Contact Us

Probes 1st Generation 2nd Generation 3rd Generation

PSIG001A
13mm General Purpose Probe

  • Typically used for sheets, bars and extrusions
  • Dia. 13.00 mm
  • Frequency: 60, 120, 240 and 480kHz
  • Lemo 5-Way Connector

Model: PSIG001
PN: CM-ET-PSIG001
(Obsolete)

 Model: PSIG001A
PN: CM-ET-PSIG001A		 Model: PSIG001B
PN: CM-ET-PSIG001A-B

PSIG002A
8mm Special Purpose Probe

  • Typically used with fasteners and other small parts.
  • Dia. 8.00 mm
  • Frequency: 60, 120, 240 and 480kHz
  • Lemo 5-Way Connector
  • Spring Loaded 8mm Probe Holder (Recommended)
 Model: PSIG002
PN: CM-ET-PSIG002
(Obsolete)		 Model: PSIG002A
PN: CM-ET-PSIG002A		 Model: PSIG002A
PN: CM-ET-PSIG002A-B

PSIG003A
13mm, 90° Right Angled Probe

  • Dia. 13.00 mm
  • Frequency: 60, 120, 240 and 480kHz
  • Lemo 5-Way Connector
 N/A (Obsolete) Model: PSIG003A
PN: CM-ET-PSIG003A		 Model: PSIG003A
PN: CM-ET-PSIG003A-B

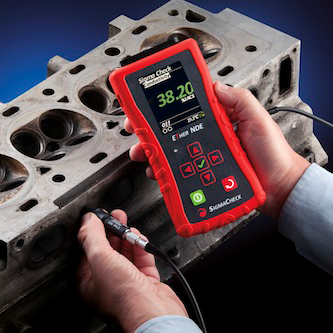

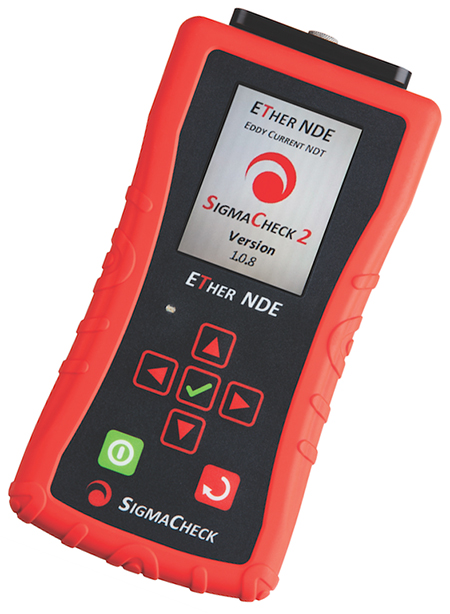

Features

At a Glance:

  • High Resolution color display (2.8" / 71mm, 320 pixels by 240 pixels)
  • Lockdown mode allows advanced users to lock down features and settings for basic operator mode
  • Accurate conductivity range (0.5% IACS to 110% IACS, 0.28-64 Ms/m)
  • Wide range of frequencies for testing thin materials (60kHz, 120kHz, 240kHz, 480kHz). Option of 960kHz
  • Non-conducive coating thickness. Measurement display up to 0.5mm
  • Lightweight (350 grams / 12oz.)
  • Ergonomic slim-line case design and easy to hold probe with adjustable finger grip
  • Two-year warranty on instrument (excludes batteries)
Show More Show Less



Key Features:

  • Built-in Lithium Ion Battery
  • User programmable display
  • 2GB of data storage. Able to store over one million data points
  • Uploaded data can be viewed using MS Excel
  • Intelligent charger via Micro USB Port
  • Multiple languages available - English, French, German, Spanish.
  • Excellent resistance to "edge effect"
  • Rapid Display of Conductivity Results
  • Battery life up to 12 hrs.
  • Firmware can be upgraded in field
  • Different probes may be configured by loading the appropriate probe map from SD Card
  • Real-time clock for time and date so that readings can be "time stamped"
  • Real-time PC control via USB or optional RS232 link

High Resolution Display:

The full color 2.8" LCD Display screen is 320x240 pixels providing excellent resolution and displaying conductivity and lift-off results with up to three decimal places precision. The display features an adjustable LED backlight allowing the operator to set their required screen brightness. The operator can also customize both the background colors and text colors to meet their personal preference.

Rapid Display of Conductivity Results:

The SigmaCheck 2 offers a choice of four frequencies (60, 120, 240, 480kHz) to allow the testing of a wide range of material thicknesses. The SigmaCheck 2 is noted for rapid display of conductivity results.

Excellent In-Field Performance & Data Reporting:

ETher NDE offers Field-Exchangeable probes with their configuration provided via micro SD Card or PC download via USB for the SigmaCheck 2. This removes the need for the instrument to be sent back for matching with the probe. By using a card reader of our PC Software, the new data for the probe can simply be copied onto the SD Card in the instrument, speeding up this process even further. USB PC Connectivity is built into the SigmaCheck 2 for remote control and data logging. The USB Connection offers real time data acquisition as well as eliminating any complicated driver installation. In addition, the USB Connection allows easy charging of the instrument without having to swap the batteries.



Lightweight & Ergonomically Designed:

Weighing 0.77 lbs (350 grams) including batteries and measuring 6.4" long (163mm), 3.1" wide (80mm), and 1" deep (25 mm), the SigmaCheck 2 is compact and extremely lightweight. Housed in a sculpted case with a detachable flexible open-faced removable silicone rubber boot, the SigmaCheck 2 is designed to be fully hand-held. Further, the standard probe has been designed to fit the hand well. Not only is the SigmaCheck 2 very accurate, its ergonomic design makes it a delight to use.

Technical Specifications

ETher NDE SigmaCheck2 Specifications

ETher NDE SigmaCheck2 Specifications
Conductivity Range 0.5% IACS to 110% IACS, 0.28 - 64 MS/m
Operating Frequencies 60kHz, 120kHz, 240kHz, 480kHz. Option of 960kHz
Accuracy Probe must be in thermal equilibrium with test material and instrument and probe stabilized prior to testing.
Minimum 15-minute warm up time for stabilization
At 68°F / 20°C: 0 - 20% IACS: ± 0.05 IACS
At 68°F / 20°C: >20% IACS ± 0.25% of readout
Display Resolution Up to 3 decimal places
Lift Off 13mm probe compensated to 0.020" (0.5mm); 8mm probe compensated to 0.010" (0.25mm)
Temperature Measurement In-probe sensor (accurate to 32.9°F / 0.5°C)
Range 32°F - 122°F / 0°C - 50°C
Automatic Temperature Compensation Conductivity measurements are corrected to the 68°F / 20°C value
Environmental Range 0 to 95% relative humidity, 32°F - 122°F / 0° - 50°C for reliable operation
Display 2.8" (70mm), 320 x 240 pixels color display. LCD with selectable backlight
Construction & Storage High impact, splash-proof, molded UL94-5VA flame-retardant ABS case. Protective rubber boot to protect the unit, probes, probe cable, operator manual on USB and removable stand.
Conductivity Standards On top of unit. Removable for value verification and when attached ensures thermal equilibrium.
Power 1 internal rechargeable battery, 3.635 V, Lithium Ion, 3.5Ah.
Over 12 hours battery life at 60kHz, 50% screen brightness.
Size (L x W x H) 6.4" x 3.1" x 1.0" / 163 x 80 x 25 mm
Weight 0.79 lbs. / 358g. including batteries and dual reference block
Data Logger Removable 32GB micro SD Card allowing over 2 million readings to be stored
PC Connectivity Micro USB port for charger and PC communications
Languages Multiple languages available e.g. English, German, French & Spanish
Probes Specification and Dimensions

  • 13mm and 8mm probes operate at 60 kHz to 480 kHz
  • Factory calibration recommended for all probe replacements or additions

13mm and 8mm Size Diagrams

13mm, 90° Size Diagram

Influence of Material Conductivity and Frequency on Minimum Testable Thickness

Minimum Testable Thickness vs. Conductivity at Different Frequencies Conductivity of Common Materials
Material Conductivity (%IACS)
Silver (Ag) (Pure) 117.40
Copper (Cu) 99.995% Min (Vacuum Cast Pure) 102.00
Gold (Au) 99.9% Pure 77.60
Pure Aluminium (Al) 65.86
Aluminium Alloy 2024-0 50.71
Brass 85% Cu + 15% Zn 37.00
Aluminium Alloy 2024-T4 30.25
Nickel - (Pure) (Ni) 25.00
Platinum (Pt) (Pure) 17.50
90% Cu + 10% Ni 11.90
Titanium (Ti) (Pure) 4.10
Stainless Steel Type 309 2.21
Inconel 600 1.67
Accessories

  • A range of conductivity reference standards traceable to US and European standards are available for in field use. Up to 5 can be mounted on an aluminum anodized Settings Reference Block Holder (Part Number: ASIG003).
  • Optional high quality rugged transit case (ASIG004)
  • Small 8mm probe available (PSIG002A-B)

Videos

Show More Show Less

SigmaCheck 2 Introduction

What's in the Box / Accessories

Configure Your Preferences

Basic Calibration

Configure Basic Operation

Basic Operation

Metal Sorting

Alarms

Data Logging

PC Connectivity

Purchasing Details

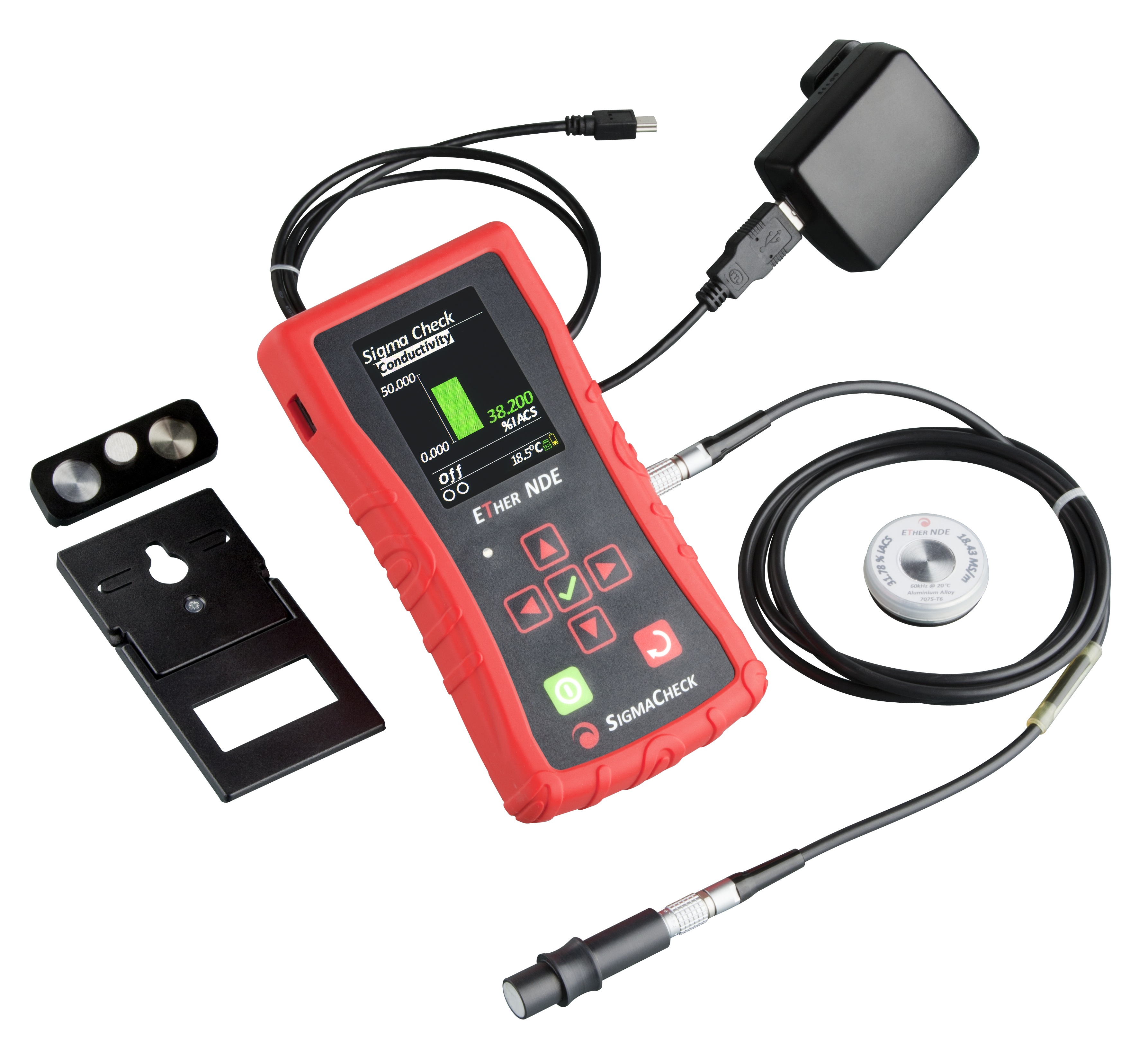

Standard Kit Includes:

  • ETherNDE SigmaCheck 2 Instrument (13mm: CM-ET-KISIG001B, 8mm: CM-ET-KISIG007A)
  • Either the 13mm probe (CM-ET-PSIG001A-B) OR 8mm probe (CM-ET-PSIG002A-B), characterized 60, 120, 240 & 480 kHz
  • Lead Probe Cable, 1.2m (CM-ET-ALL05-L05-012-SIG)
  • Rubber Boot and Case Stand
  • Dual Conductivity Reference Standards, Nominal Values 9.4% and 58.8% IACS (CM-ET-ASIG014B)
  • Built-in Lithium Ion Battery
  • Charger with UK, US, EU Adapter, 100-240 V
  • USB to Micro USB Cable
  • Manual  & Software on USB Stick
  • Quick Reference Card
  • Calibration Certification
  • Polypropylene Hard Carry Case (CM-ET-AC011)



Optional Extras Available:

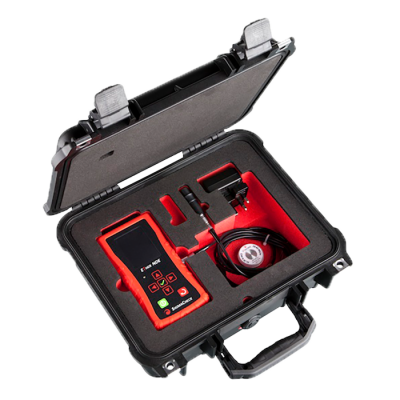

  • High-Quality Hard Peli Transit Case with Foam Inserts (CM-ET-ASIG004)
  • Conductivity Test Block Holder (CM-ET-ASIG003)
  • Dual Conductivity Reference Standards, Nominal Values 9.4% and 101% IACS (CM-ET-ASIG010B)
  • Dual Conductivity Reference Standards, Nominal Values 28% AND 59% IACS (CM-ET-ASIG012B)
  • Other Various Conductivity Standards
  • 8mm Small probe available (PSIG002B)

 Product Notes

  • Product Update - The SigmaCheck2 (KISIG001A) has been upgraded to the SigmaCheck2 (KISIG001B). The new SigmaCheck2 has an updated probe map design, upgraded PCB Board, increased battery life with NEW built-in lithium ion battery, and an improved setup calibration block design. (12/2023)
  • Product Update - The SigmaCheck (KISIG001) has been upgraded to the SigmaCheck2 (KISIG001A). The new SigmaCheck2 has an upgraded board, increased battery life and improved stability. (01/2012)
  • Listed prices only valid for customers in North America.

Product Literature

Description Part # Saved Price Select Option Add to

Instrument Kits
ETher NDE SigmaCheck2 Complete Kit w/13mm Probe CM-ET-KISIG001B
$6,590.00
ETher NDE SigmaCheck2 Complete Kit w/8mm Probe CM-ET-KISIG007B
$7,605.00

Probes & Accessories
PSIG001A Conductivity Probe, Dia 13.00 mm, Straight, Lemo 5-way - 3rd Gen - ETher NDE SigmaCheck2 (KISIG001B) CM-ET-PSIG001A-B
$1,128.75
PSIG002A Conductivity Probe, Dia 8.00mm, Straight, Lemo 5-Way - 3rd Gen - ETher NDE SigmaCheck2 (KISIG001B) CM-ET-PSIG002A-B
$2,143.75
PSIG003A Conductivity Probe, Dia 13.00mm, Right Angled, Lemo 5-Way - 3rd Gen - ETher NDE SigmaCheck2 (KISIG001B) CM-ET-PSIG003A-B
$1,443.75
PSIG001A Conductivity Probe, Dia 13.00 mm, Straight, Lemo 5-way – 2nd Gen - ETher NDE SigmaCheck2 (KISIG001A) CM-ET-PSIG001A
$1,128.75
PSIG002A Conductivity Probe, Dia 8.00mm, Straight, Lemo 5-Way - 2nd Gen - ETher NDE SigmaCheck2 (KISIG001A) CM-ET-PSIG002A
$2,143.75
PSIG003A Conductivity Probe, Dia 13.00mm, Right Angled, Lemo 5-Way - 2nd Gen - ETher NDE SigmaCheck2 (KISIG001A) CM-ET-PSIG003A
$1,443.75
PSIG004A Conductivity Probe, Dia. 4.5mm - 60, 120, 240, 480k CM-ET-PSIG004A
$2,336.25
PSIG001A15K Conductivity Probe, Dia 13.00mm, 60, 120, 240, 480, 15k - 15k Gold Bars CM-ET-PSIG001A15K
$1,606.50
PSIG001A960K Conductivity Probe, Dia. 13.00 mm, 960k - Jewelry CM-ET-PSIG001A960K
$1,606.50
PSIG002A960K Conductivity Probe, Dia. 8.00mm - 960k - Jewelry CM-ET-PSIG002A960K
$2,551.50
PSIG003A15K Conductivity Probe, Dia. 13.00mm, 60, 120, 240, 480, 15k - 15k Gold Bars CM-ET-PSIG003A15K
$1,842.75
PSIG003A960K Conductivity Probe, Dia. 13.00mm - 960k - Jewelry CM-ET-PSIG003A960K
$1,842.75
ASIG017, Spring Loaded 8mm Conductivity Probe Holder CM-ET-ASIG017
$198.00
ALL05-L05-012-SIGA, Probe Cable, 5-Way Lemo to 5-Way Lemo, 1.2m (Silicone Sleeve) - for ETher NDE SigmaCheck / SigmaCheck2 CM-ET-ALL05-L05-012-SIGA
$275.00
AC011, Polypropylene Hard Case (340 x 275 x 123 mm) - for ETher NDE SigmaCheck2 CM-ET-AC011
$342.75
ASIG004, Hard Peli 1400 Case with foam inserts - for ETher NDE SigmaCheck2 CM-ET-ASIG004
$685.50
ASIG003 Conductivity Test Block Holder Only (holds 5 Conductivity Test Blocks and 1 Dual Conductivity Reference Standard - please purchase separately) CM-ET-ASIG003
$343.00

Individual Conductivity Reference Standards
ETher NDE Conductivity Standard - Titanium 6AL-4V (1.0 - 1.1 % IACS) CM-ET-ATBC-TITANIUM
$602.00
ETher NDE Conductivity Standard - Titanium, GRADE 2 (3.3 - 4.1 % IACS) CM-ET-ATBC-TITANIUM2
$602.00
ETher NDE Conductivity Standard - Stainless Steel 303 S (2.1 - 2.5 % IACS) CM-ET-ATBC-STST303S
$525.00
ETher NDE Conductivity Standard - Nickel Silver LC1291 (9.0 - 9.9 % IACS) CM-ET-ATBC-NICSILVER
$387.00
ETher NDE Conductivity Standard - Phosphor Bronze (13.0 - 18.0 % IACS) CM-ET-ATBC-PBRONZE
$426.00
ETher NDE Conductivity Standard - Brass CZ 121 (23.3 - 26.6 % IACS) CM-ET-ATBC-BRASS
$387.00
ETher NDE Conductivity Standard - Aluminum Alloy 5083 (26.6 - 30.0 % IACS) CM-ET-ATBC-ALU5083
$387.00
ETher NDE Conductivity Standard - Aluminum Alloy 2024-T4 (28.8 - 31.0 %IACS) CM-ET-ATBC-ALU2024-T4
$387.00
ETher NDE Conductivity Standard - Aluminum Alloy 7075-T6 (30.0 - 34.1 % IACS) CM-ET-ATBC-ALU7075
$387.00
ETher NDE Conductivity Standard - Aluminum Alloy 2014A-T6 (34.7 - 40.3 % IACS) CM-ET-ATBC-ALU2014A-T6
$387.00
ETher NDE Conductivity Standard - Aluminum Alloy 6061-T6 (40.5 - 45.0% IACS) CM-ET-ATBC-ALU6061
$387.00
ETher NDE Conductivity Standard - Aluminum Alloy 6082-T6 (45.1 - 49.0 % IACS) CM-ET-ATBC-ALU6082
$387.00
ETher NDE Conductivity Standard - Aluminum Alloy 1200-H4 (57.2 - 62.0 % IACS) CM-ET-ATBC-ALU1200
$387.00
ETher NDE Conductivity Standard - Copper (99.9 - 102.5 % IACS) CM-ET-ATBC-COPPER
$387.00

Dual Conductivity Reference Standards
ASIG010, Dual Conductivity Reference Standards, Nominal Values 9.4% and 101% IACS (SigmaCheck / SigmaCheck2) NIST VALUES CM-ET-ASIG010
$486.00
ASIG012, Dual Conductivity Reference Standards, Aluminum Alloys Nominal Values 28.5% (5083) and 58.8% IACS (1200-H4) (SigmaCheck / SigmaCheck2) NIST VALUES CM-ET-ASIG012
$486.00
ASIG014, Dual Conductivity Reference Standards, Nominal Value 9.4% IACS (Nickel Silver) & 58.8% IACS (Aluminum Alloy 1200), (Recommended for Aluminum Alloy use). (SigmaCheck / SigmaCheck2) NIST VALUES CM-ET-ASIG014
$486.00
ASIG019, Dual Conductivity Reference Standards, 30.0-34.1%IACS (Aluminum Alloy - 7075-T6) & 45.1-49.0%IACS (Aluminum Alloy - 6082-T6) (SigmaCheck/SigmaCheck2) NIST VALUES CM-ET-ASIG019
$486.00
ASIG021, Dual Conductivity Reference Standards, Aluminum Alloy 1200-H4 (Nominal Value 57.2-60.5 %IACS) & Brass CZ121 (Nominal Value 23.3-26.6 %IACS) (SigmaCheck) NIST VALUES CM-ET-ASIG021
$789.00
ASIG010B Dual Conductivity Reference Standards, Nominal Values 9.4% and 101% IACS (SigmaCheck / SigmaCheck2) CM-ET-ASIG010B
$408.00
ASIG012B Dual Conductivity Reference Standards, Aluminum Alloys Nominal Values 28.5% (5083) and 58.8% IACS (1200-H4) (SigmaCheck / SigmaCheck2) CM-ET-ASIG012B
$408.00
ASIG014B Dual Conductivity Reference Standards, Nominal Value 9.4% IACS (Nickel Silver) & 58.8% IACS (Aluminum Alloy 1200), (Recommended for Aluminum Alloy use). (SigmaCheck / SigmaCheck2) CM-ET-ASIG014B
$408.00
ASIG019B, Dual Conductivity Reference Standards, 30.0-34.1%IACS (Aluminum Alloy - 7075-T6) & 45.1-49.0%IACS (Aluminum Alloy - 6082-T6) (SigmaCheck/SigmaCheck2) NIST VALUES CM-ET- ASIG019B
$408.00
ASIG021B, Dual Conductivity Reference Standards, Aluminum Alloy 1200-H4 (Nominal Value 57.2-60.5 %IACS) and Brass CZ121 (Nominal Value 23.3-26.6 %IACS) (SigmaCheck) NIST VALUES CM-ET-ASIG021B
$744.00

Optional Instrument Configurations
ASIG016, Remote Push Button Input Option (Including Lead Plug and Drawing 30477) CM-ET-ASIG016
Request Pricing
ASIG018, Fast Read Encoder Interface Box – Arconic, To Fit: SigmaCheck2 RS232, No internal Charger (ISIG005A) CM-ET-ASIG018
Request Pricing
PROTOTYPE, SigmaCheck2 Conductivity Meter with Dual Hi/Lo Alarm output, AC Only for Integration CT-ET-Prototype
Request Pricing

Similar Items
