High-Intensity UV lamps are code compliant UV-A inspection lamps producing over 1,000 and under 12,000 microwatts/cm2 at 15". They consist of LED and legacy Mercury Vapor lamps.
Note: Some aerospace codes are now stipulating intensity requirements between 1,200 and 5,000 microwatts/cm2 at 15" for fluorescent penetrant testing on critical components.
Click on the link to read more about HID and LED lamps - HID vs. LED
Comparison TableClick the 'Show More' button to view compare available LED UV Inspection Lights at a glance. |
| Model | UV-A Intensity @ 15" | Beam / Coverage Diameter @ 15" | Power Source | Certification Compliance |
| Large-Area Beam Spread — 9.0" to 10.0" Coverage @ 15" | ||||

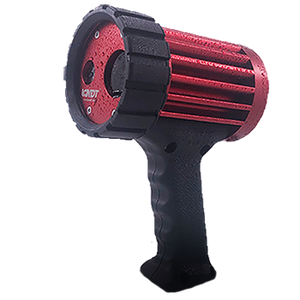

| PRO-400 | 5,000 µW/cm2 | 10.0" (25.40 cm) | AC (90-264 VAC); optional Li-Ion pack | ASTM E1417, E1444, E2297, E3022; RRES 90061; ISO 3059 |
| PRO-400C | 5,000 µW/cm2 | 10.0" (25.40 cm) | AC (90-264 VAC) | ASTM E1417, E1444, E2297, E3022; RRES 90061; ISO 3059 |
| PRO-400P | 5,000 µW/cm2 | 10.0" (25.40 cm) | AC (90-264 VAC) | ASTM E1417, E1444, E2297, E3022; RRES 90061; ISO 3059 |
| PRO-400BP | 5,000 µW/cm2 | 10.0" (25.40 cm) | Battery (Li-Ion) | ASTM E1417, E1444, E2297, E3022; RRES 90061; ISO 3059 |

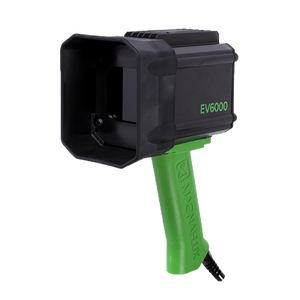

| EV6000 | 5,000 µW/cm2 | 9.0" (22.86 cm) | AC corded | ASTM E3022; RRES 90061; AITM6-1001; NADCAP; Aerospace Prime & OEM |
| Medium Beam Spread — 5.5" to 7.1" Coverage @ 15" | ||||
| UV-100C LED UV Lamp | ~ 5,000 µW/cm2 | 5.5" (13.97 cm) | AC; optional 6-hr battery pack | ASTM E1417, E1444, E2297, E3022 |
| UV-100B LED UV Lamp | ~ 5,000 µW/cm2 | 5.5" (13.97 cm) | Built-in battery + AC | ASTM E1417, E1444, E2297, E3022 |
| UV-365SBLC | < 5,000 µW/cm2 | 6.0" (15.24 cm) | 100-120 VAC / 12 VDC | Airbus AITM6-1001; RRES 90061; ASTM E3022-18; EN ISO 3059 |
| UV-365MSBLC (Mobile) | < 5,000 µW/cm2 | 6.0" (15.24 cm) | Battery (12V NiMH) / AC | Airbus AITM6-1001; RRES 90061; ASTM E3022-18; EN ISO 3059 |
| UV-365ES | 4,700 µW/cm2 | 6.0" (15.24 cm) | 100-120 VAC / 12 VDC | EN ISO 3059 |
| Focused Beam — 4.0" Coverage @ 15" | ||||
| TRI-365DB (clear filter) | < 5,000 µW/cm2 | 4.0" (10.16 cm) | 120 VAC in-line supply | ASTM E3022; RRES 90061; ISO 3059 |
| TRI-365SBLC | < 5,000 µW/cm2 | 4.0" (10.16 cm) | 120 VAC power cord | RRES 90061; ASTM UV-A intensity & wavelength (LPT / MPT) |
Intensity values are nominal UV-A output measured at 15" (38.10 cm), per manufacturer-published specifications. Coverage diameters are the published UV-A coverage area at 15". Certification compliance is as stated by the manufacturer; a Certificate of Conformance and serialized validation report are supplied with each certified lamp.
| Model | UV-A Intensity @ 15" | Beam / Coverage Diameter @ 15" | Power Source | Certification Compliance |
| Large-Area Beam Spread — 9.0" to 10.0" Coverage @ 15" | ||||

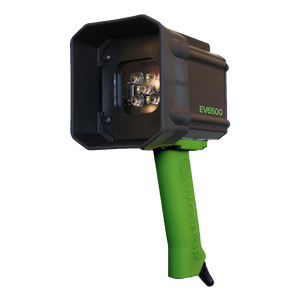

| EV6500 | 7,000 µW/cm2 | 10.0" (25.40 cm) | AC corded | API 6A, API 1104; ASTM E709, F601; AWS D1.1; ISO 9934 |
| Medium Beam Spread — 5.5" to 7.1" Coverage @ 15" | ||||
| UV-200 LED UV Lamp | > 12,000 µW/cm2 | 7.1" (18.03 cm) | AC; optional 3-hr battery pack | ASTM E1417, E1444, E2297, E3022 |
| UV-365EH | 7,000 µW/cm2 | 7.0" (17.78 cm) | 100-120 VAC / 12 VDC | EN ISO 3059 |
| UV-365MEH (Mobile) | 7,000 µW/cm2 | 7.0" (17.78 cm) | Battery (12V NiMH) / AC | EN ISO 3059 |
| UV-365HC | 6,000 µW/cm2 | 6.4" (16.26 cm) | 100-120 VAC / 12 VDC | ASTM E3022-18; EN ISO 3059 |
| UV-365MHC (Mobile) | 6,000 µW/cm2 | 6.4" (16.26 cm) | Battery (12V NiMH) / AC | ASTM E3022-18; EN ISO 3059 |
| Vintage 365 | 5,500 µW/cm2 | 6.0" (15.24 cm) | AC corded | EN ISO 3059 only — non-spec lamp, not certified to ASTM E3022 or RRES 90061 |
| Focused Beam — 4.0" Coverage @ 15" | ||||
| TRI-365HB (clear filter) | 9,000 µW/cm2 | 4.0" (10.16 cm) | 120 VAC in-line supply | ASTM E3022; RRES 90061; ISO 3059 |
Intensity values are nominal UV-A output measured at 15" (38.10 cm), per manufacturer-published specifications. Coverage diameters are the published UV-A coverage area at 15". Certification compliance is as stated by the manufacturer; a Certificate of Conformance and serialized validation report are supplied with each certified lamp.
