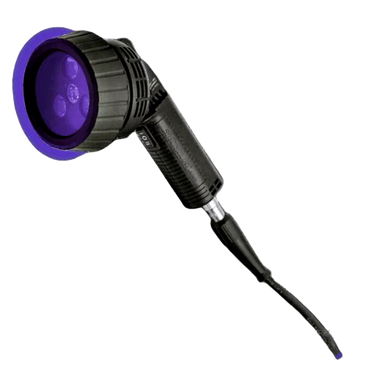

Spectro-UV Tritan 365 Series UV-A Lamp

Spectro-UV Tritan 365 Series UV-A Lamp

The TRITAN 365 is a true multi-purpose UV inspection lamp, with three powerful ultra-hi-flux UV-A LEDs for component inspection, plus a white light LED for visible illumination.

Previously a Spectroline / Spectronics Product

 Made in the USA

Overview

The Tritan 365 Series Ultraviolet UV-A Blacklight features three hi-flux UV-A (365 nm) LEDs for fluorescent inspection, plus a convenient white light LED to locate surface flaws and illuminate dark work areas. Its broad-beam configuration provides an extremely wide coverage area, while a compact head design allows access into tight spaces.

The series includes a variety of High Intensity, Standard Intensity, and battery-operated models.

Beam Profiles and Comparisons

spectronics-tritan-365

spectronics-tritan-365

Features

  • UV Lamp is fully compliant to meet ASTM E3022 Standards, Rolls Royce RRES 90061 Requirements, and ISO 3059 Standards
  • Certificate of Conformance & Validation report included with each lamp
  • UV Lamp has embedded thermal cut off circuitry to ensure the lamp remains in compliance at all times
  • Faceplate with integral UV-A pass filters reduce output of wavelengths longer than 400nm
  • UV Lamp has long lasting UV-A lenses reduce the rate of solarization
  • Rubber bumper with Borofloat glass lens that protect LED’s from damage
  • White light LED allows for scanning of surface flaws or illuminating dark work spaces
  • Grip-mounted, three-way rocker switch (white light/off/UV) for easy control of UV lamp light sources
  • UV lamp has built-in fan to keep LEDs cool to maintain optimum light output during periods of extended use

Technical Specifications

Technical Specifications

Spectro-UV Tritan 365 Series UV-A Lamp Technical Specifications
Light Source: (3) UV-A LEDs, (1) white light LED
Lamp Style: Pistol grip
Lamp Head Diameter: 3.25 in (8.25 cm)
Length: 8.0 in (20.3 cm)
Weight: 1 lb (454 g)
White Light LED: 400 foot-candles (4,306 lux)
Power Requirements: 120VAC* (*Also available in 230V, 240V and 100V versions)



Model Nominal Steady-State
UV-A (365 nm) intensity
at 15 inches (38 cm)		 Visible light measurement Diameter of UV-A coverage at 15 inches (38 cm)
TRI-365HB
High-Intensity, with clear filter		 9,000 µW/cm2 < 2 foot candles
(22-lux)		 4 inches (10 cm)
TRI-365DB
Standard Intensity with clear filter		 < 5,000 µW/cm2 maximum < 2 foot candles
(22 lux)		 4 inches (10 cm)

Kit

  • Tritan 365 LED 365nm UV-A Lamp
  • In-line AC power supply
  • UV-absorbing spectacles
  • Padded protective case for UV lamp

If you require a Tritan 365 Model in a foreign voltage / plug type listed:

European  (Type C/F)

Australian (Type I)

United Kingdom (Type G)

Click the button below

Request Pricing

Product Literature

Description Part # Saved Price Select Option Add to
Spectro-UV TRI365-HB Includes: High Intensity (3) UV-A LEDs and (1) White Light LED with FP-365 Borofloat Filter Protector, Heavy-Duty 8 Foot AC Cord, UVS-30 Spectacles and Soft Carrying Case UV-SP-TRI365HB
$1,513.00
Spectro-UV TRI-365HB/20 Includes: TRI-365HB with Heavy-Duty 20 Foot AC Cord UV-SP-TRI365HB-20
Request Pricing
Spectro-UV TRI-365MHB Includes: TRI-365HB with BP-30 Metal Encased Rechargeable NiMH Battery Pack, BR-150A Smart AC Charger, PSA-250A AC/DC Adapter and Nylon Bag UV-SP-TRI365MHB
$1,850.00
Spectro-UV TRI-365DB Includes: Standard Intensity (3) UV-A LEDs and (1) White Light LED with FP-365 Borofloat Filter Protector, Heavy-Duty 8 Foot AC Cord, UVS-30 Spectacles and Soft Carrying Case UV-SP-TRI365DB
$1,513.00
Spectro-UV TRI-365DB/20 Includes: TRI-365DB with Heavy-Duty 20 Foot AC Cord UV-SP-TRI365DB-20
Request Pricing
Spectro-UV TRI-365MDB Includes: TRI-365DB with BP-30 Metal Encased Rechargeable NiMH Battery Pack, BR-150A Smart AC Charger and PSA-250A AC/DC Adapter UV-SP-TRI365MDB
$1,852.00
Spectro-UV TRI365HC Includes: High Intensity (3) UV-A LEDs and (1) White Light LED with FP-365 Borofloat Filter Protector, Heavy-Duty 8 Foot AC Cord, UVS-30 Spectacles and Soft Carrying Case UV-SP-TRI365HC
$1,843.00
Spectro-UV TRI-365HC/20 Includes: TRI-365HC with Heavy-Duty 20 Foot AC Cord UV-SP-TRI365HC-20
Request Pricing
