Fully Automated, Fully Portable X-Y Scanner

Portable and Fully Automated

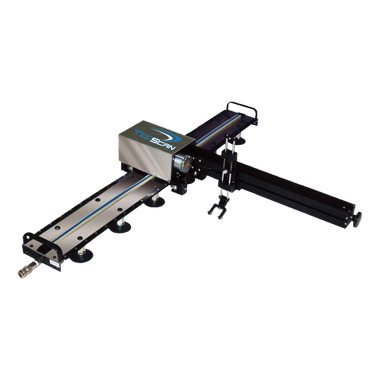

The TecScan ARMANDA Scanner is a light weight, portable X-Y scanner specifically designed for non-destructive inspection of metallic and composite structures. It is perfectly suited for inspection of aircraft, but can also be used quite effectively in the lab or shop as well. The ARMANDA is equipped with a spring loaded Z-axis designed to provide rapid and accurate transducer positioning while following contoured surfaces, and its light weight enables it to be mounted easily if a vertical scan is needed. It can be easily disassembled and stored as well, making it an excellent tool for site inspections.

Features:

  • Fully Automated Data Acquisition Scanner
  • Designed specifically for military / aerospace industry applications
  • Compatible with UT, EC, BT and TOFD technologies
  • A complete integrated solution
  • TecView™ Software Package for acquisition and analysis
  • Portable workstation
  • Rugged Travel case





Applications:

  • Flaw Sizing
  • Weld Inspections
  • Corrosion Mapping
  • Metallic Structures
  • Composite Structures
  • Rapid inspection of large or inaccessible areas

Click Here to Learn More About TecView™ Software

Technical Specifications

TecScan ARMANDA Specifications

Scan Resolution 0.0005″/Step (0.0127mm/Step)
Index Resolution 0.005″/Index (0.127mm/Index)
Scanner Speed (X & Y Axes) 10″/Sec (254mm/Sec)
Scanning Rate 5KHz
Minimum Curvature Radius 14″ (350mm)
