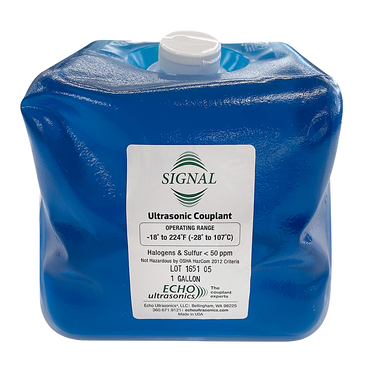

Echo Signal High Acoustic Impedance Couplant

Echo Signal High Acoustic Impedance Couplant

Offers the highest acoustic impedance of any water-based ultrasonic couplant.

Features

  • Improves signal to noise ratio on rough surfaces such as castings, rough bar stock and fiberglass.
  • Increases acoustic transmission on plastics (PVC pipes) and rough welds.
  • Gel viscosity remains in place for overhead and vertical surfaces.
  • Broadest operating range for a water-based couplant.
  • Slow drying
  • Water-soluble
  • Easy clean up

Technical Specifications

Signal Specifications

Operating Range -18° to 224°F (-28°C to 107°C)
Acoustic Impedance 1.95+ g/cm2 - sec x 105
Viscosity Medium flowable gel
Halogens & Sulfur Less than 50 ppm
pH 8.0 nominal at 20°C
Packaging 1 gallon / 3.8 liter cubitainer
5 gallon / 18.9 liter cubitainer
Carton of 12 - 12 oz. / 355 ml. bottles

Product Literature

Description Part # Saved Price Select Option Add to
Echo Ultrasonics Signal Carton of 12 - 12 oz. / 355 ml. bottles UT-EU-SG-12CTN
$166.00
Echo Ultrasonics Signal 1 gal. / 3.8 liter with 1 bottle and dispensing cap UT-EU-SG-1
$153.00
Echo Ultrasonics Signal 5 gal. / 18.9 liter with 2 bottles and dispensing faucet UT-EU-SG-5
$725.00
