Echo UltraSoniX High Performance Couplant

Echo UltraSoniX High Performance Couplant

A broad temperature NDT ultrasonic couplant with excellent corrsion inhibition.

UltraSoniX Broad Temperature Couplant, Excellent Corrosion Inhibition, 2 Viscosities

UltraSoniX is a high performance ultrasonic couplant for flaw inspection and thickness gaging that is compatible with most materials, with good metal corrosion inhibition and is formaldehyde and glycol ether free.

Product Description Product Specifications

High Viscosity couplant remains in place on vertical and overhead surfaces.

10°F to 220°F (-15°C - 104°C) temperature range for most flaw detection and thickness gaging applications.

Better multi-metal corrosion inhibition than most UT couplants.

Slow drying for extended inspection time.

Reduced surface tension provides fast wetting.

Contains no glycerin which can interfere with subsequent penetrant inspection.

Water Soluble: easier to remove than most ultrasonic couplants by wet or by dry wiping or water wash.

Environment and operator friendly - no formaldehydes, nitrates, nitrites or glycol ethers.

Lower residue than most UT couplants.

Removal: Wipe with wet or dry paper or cloth rag or water wash.




Viscosity:≈85,000 cps, Brookfield helipath E @ 1.5 RPM
≈40,000 cps, LVT 4 @6 rpm

MV: Medium Viscosity - flowable gel
HV: High Viscosity - stiff gel

pH: 8.0 nominal at 20°C

Operating Temperature: 10°F to 220°F (-15°C - 104°C)

Halogens and Sulfur: less than 50 ppm

Safety: No formaldehyde, nitrates, nitrites or glycol ethers.

Packaging:
Carton of nine 4 oz., 8 oz. or 12 oz. bottles

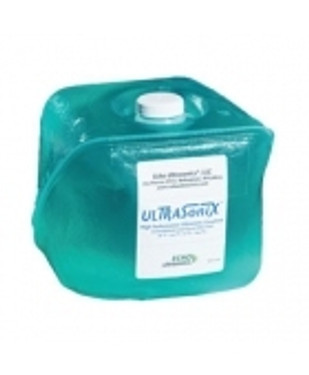

1-gallon / 3.8 liter cubitainer
5-gallon / 19 liter cubitainer
15-gallon / 56.8 liter drum
55-gallon / 208 liter drum

ultrasonix
echo-ultrasonics-ultrasonix-carton-descriptions

All cartons of UltraSoniX UT Couplant contain twelve (12) bottles.

Echo offers four clear bottle options with two cap styles.

Bottles Pictured from left to right:

4 oz. Boston Round / push / pull cap
8 oz. oval push / pull cap
8 oz. cylinder round, snap cap
12 oz. cylinder round, snap cap


4 oz (118 ml.) Boston round: Part Number - US-4CTN
  • ideal for thickness gaging, lab work and small projects
  • self-cleaning push / pull cap

8 oz. (236 ml.) oval: Part Number - US-8CTN-OVAL

  • oval shape fits easily into a pocket for hands free movement, scaffold climbing, etc..
  • self-cleaning push / pull cap

8 oz. (236 ml.) cylinder round: Part Number - US-8CTN

  • industry standard diameter bottle
  • easy to hold
  • 38 mm snap cap - for one hand opening

12 oz. (340 ml.) wide cylinder round: Part Number - US-12CTN

  • 38 mm snap cap - for one hand opening
  • Maximum capacity bottles


Note: Minimum order for Echo Couplant is $75. For orders that do not meet our minimum, there will be a $25 small order processing fee.

Description Part # Saved Price Select Option Add to
Echo Ultrasonics UltraSoniX Carton of twelve 4 oz - 118 ml bottles UT-EU-US-4CTN
$141.00
Echo Ultrasonics UltraSoniX Carton of twelve 8 oz - 236 ml bottles UT-EU-US-8CTN
$146.00
Echo Ultrasonics UltraSoniX Carton of twelve 12 oz - 340 ml bottles UT-EU-US-12CTN
$146.00
Echo Ultrasonics UltraSoniX (MV) 1 gallon - 3.8 liter cubitainer, 1 refillable bottle and dispensing cap - medium viscosity UT-EU-US1-MV
$106.00
Echo Ultrasonics UltraSoniX (MV) 5 gallon - 18.9 liter cubitainer, 1 refillable bottle and dispensing faucet - medium viscosity UT-EU-US5-MV
$426.00
Echo Ultrasonics UltraSoniX (MV) 55 gallon - 208 liter drum - medium viscosity UT-EU-US-55-MV
$3,937.00
Echo Ultrasonics Drum Pump for 55 gallon drum UT-EU-DP-55
$160.00
