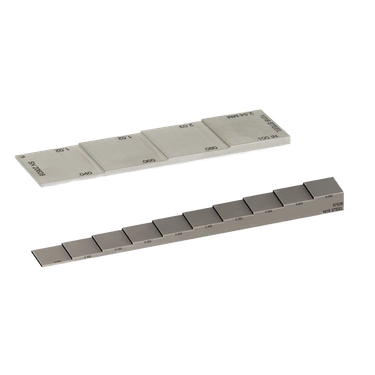

PH Tool Thin Step Calibration Blocks

PH Tool Thin Step Calibration Blocks

For thickness and linearity calibration

For Thickness and Linearity Calibration

Available in 4 and 10 Step Versions:

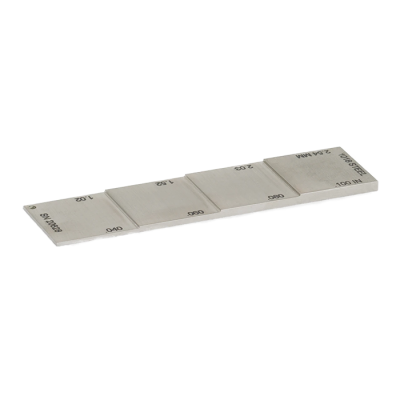

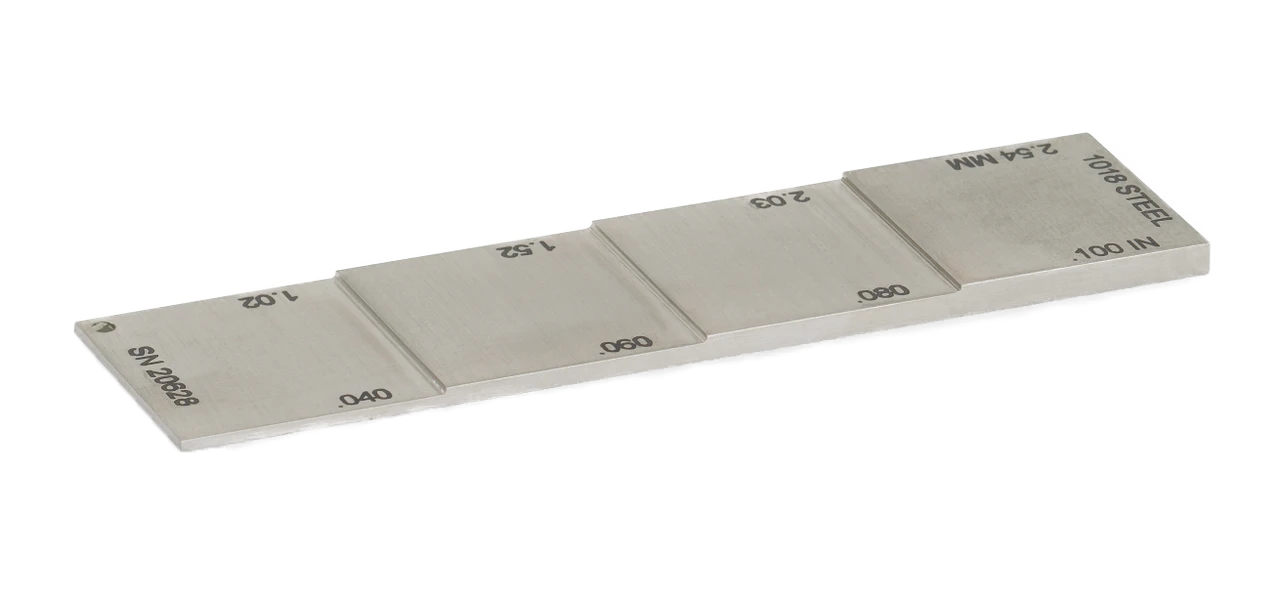

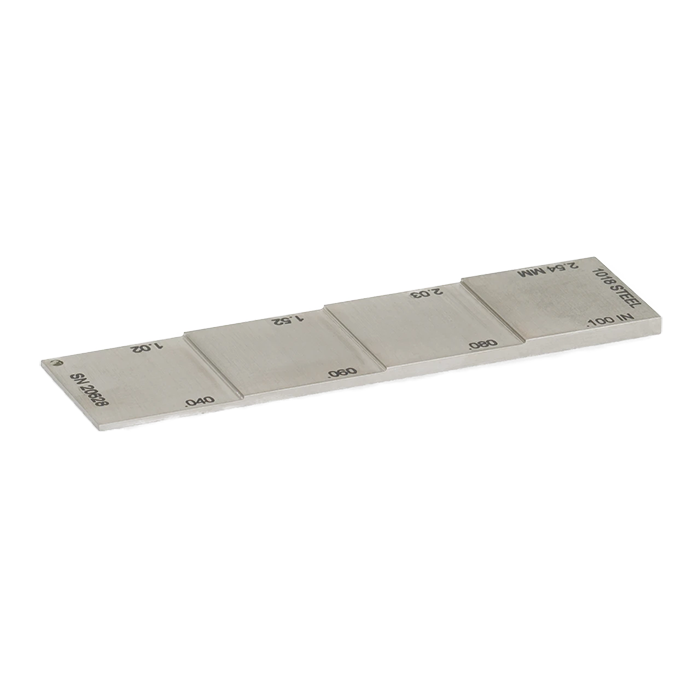

  • The thin 4-Step Calibration Block has steps of 0.040", 0.060", 0.080" and 0.100".

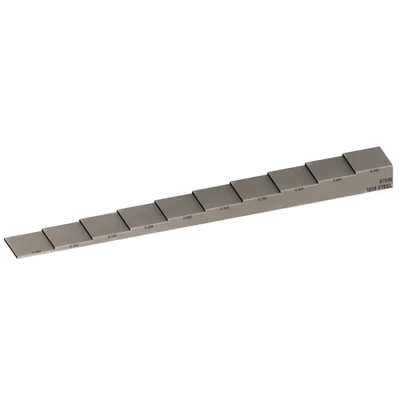

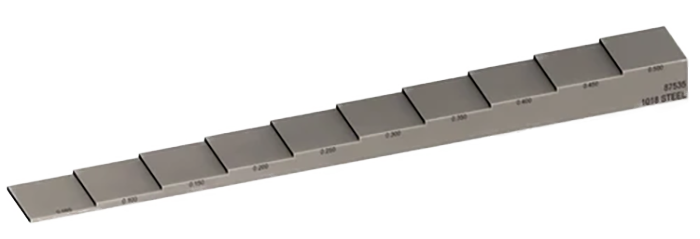

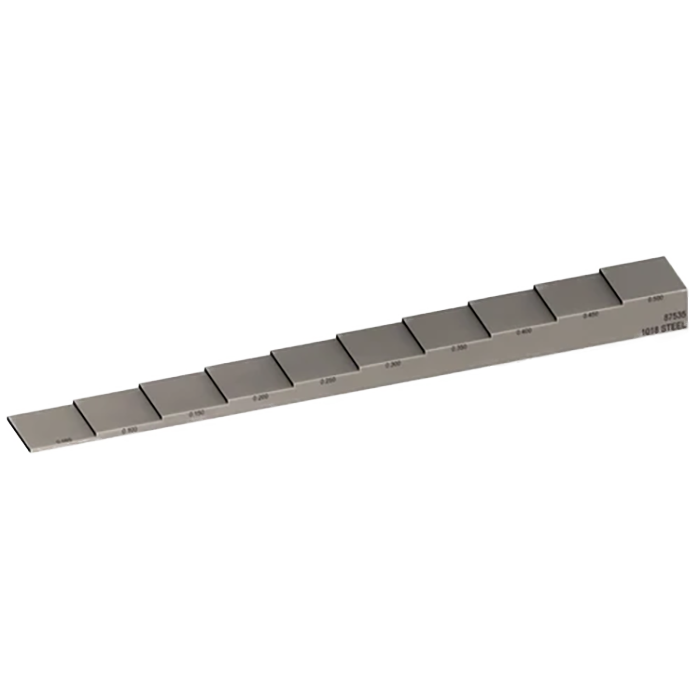

  • The thin 10-Step Calibration Block has steps of 0.050", 0.100", 0.150", 0.200", 0.250", 0.300", 0.350", 0.400", 0.450" and 0.500".
  • Step Face: 3/4" x 3/4"

Metric Versions

  • Thin 4-Step Metric block step thicknesses: 1.0mm, 1.5mm, 2.0mm and 2.5mm.
  • Thin 10-Step Metric block step thicknesses: 1.0mm, 2.0mm, 3.00mm, 4.00mm, 5.00mm, 6.00mm, 7.00mm, 8.00mm, 9.00mm and 10.00mm.
  • Step Face: 20mm x 20mm.

Materials

Standard Materials

  • 1018 Steel - Nickel Plated
  • 7075-T6 Aluminum, Anodized
  • 304 Stainless Steel
Special Materials (Call for Price)

  • A36 Steel
  • 4340 Steel
  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 321 Stainless Steel
  • 410 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • 6AL-4V Titanium
  • 7070-T7451 Aluminum
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium 702

Purchasing Details

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional Certification and Serialization is available at additional cost.
  • If additional calibration is required, make sure to select UT-PHT-THINSTEP-CERT when adding items to the shopping cart.
  • Optional Hardwood Case available upon request.
Description Part # Saved Price Select Option Add to
PH Tool Thin 4-Step Calibration Block - 0.040, 0.060, 0.080 and 0.100" (select material)
Model #
UT-PHT-THINSTEP-M
$715.00
PH Tool Thin 4-Step Metric Calibration Block - 1.0mm, 1.5mm, 2.0mm and 2.5mm (select material)
Model #
UT-PHT-THINSTEP-M-M
$823.00
PH Tool Thin 4-Step Calibration Block, Wood Case UT-PHT-THINSTEP-WC
$57.00
PH Tool Thin-Step Dimensional Certificate (New Block) UT-PHT-THINSTEP-CERT
$59.00
PH Tool Thin-Step Dimensional Certificate (Recertification) UT-PHT-THINSTEP-RECERT
$118.00
PH Tool Thin 10-Step Calibration Block - 0.050", 0.100", 0.150", 0.200", 0.250", 0.300", 0.350", 0.400", 0.450", .500" (select material)
Model #
UT-PHT-THIN10STEP-M
$1,190.00
PH Tool Thin 10-Step Metric Calibration Block - 1.0mm, 2.0mm, 3.0mm, 4.00mm, 5.00mm, 6.00mm, 7.00mm, 8.00mm, 9.00mm, 10.00mm (select material)
Model #
UT-PHT-THIN10STEP-M-M
$1,366.00
PH Tool Thin 10-Step Calibration Block, Wood Case UT-PHT-THIN10STEP-WC
$97.00
PH Tool Thin-10-Step Dimensional Certificate (New Block) UT-PHT-THIN10STEP-CERT
$63.00
PH Tool Thin-10-Step Dimensional Certificate (Recertification) UT-PHT-THIN10STEP-RECERT
$126.00
