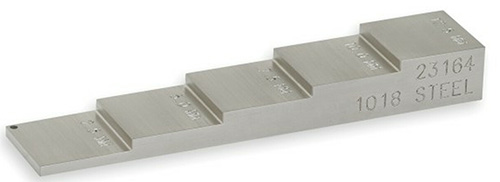

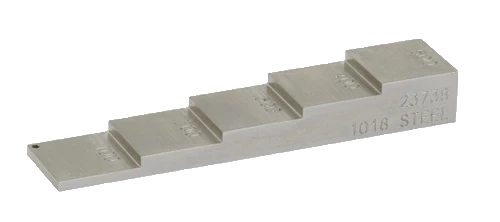

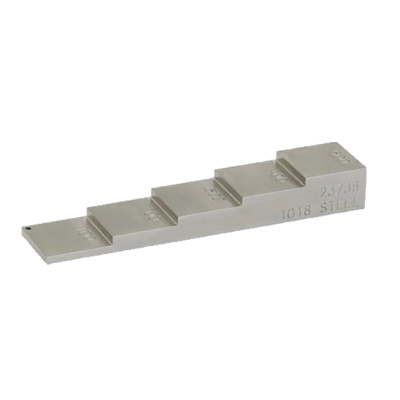

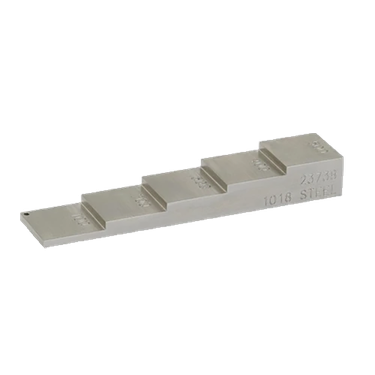

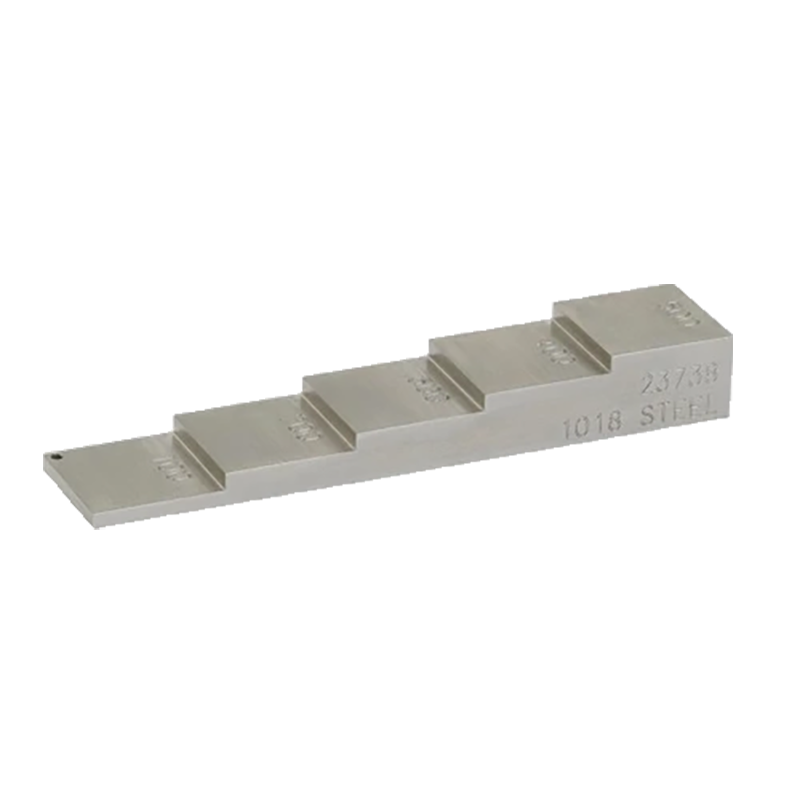

PH Tool 5-Step Calibration Block

PH Tool 5-Step Calibration Block

For thickness and linearity calibration

For Thickness & Linearity Calibration

Inch Version:

  • Step Thickness: 0.100, 0.200, 0.300, 0.400, and 0.500
  • Step Face: 3/4 x 3/4
  • Spec: ASTM E797

Metric Versions:

  • Metric 5A (2.5, 5.0, 7.5, 10.0 and 12.5mm)
  • Metric 5B (2.0, 4.0, 6.0, 8.0 and 10.0 mm)
  • Step Face: 20 mm x 20 mm
  • Spec: ASTM E797

Materials

Standard Materials

  • 1018 Carbon Steel
  • 7075-T6 Aluminum
  • 304 Stainless Steel
Special Materials (Call for Price)

  • A36 Steel
  • 4340 Steel
  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 316 Stainless Steel
  • 321 Stainless Steel
  • 410 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • Inconel 600
  • Inconel 625
  • Inconel 718
  • Inconel 800
  • Hastelloy C276
  • Monel 400
  • Nickel
  • 6AL-4V Titanium
  • 2024-T3 Aluminum
  • 6061-T6 Aluminum
  • 7070-T7451 Aluminum
  • 70/30 Copper Nickel
  • 90/10 Copper Nickel
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium 702

Purchasing Details

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional / Calibration Certification and Serialization are available at additional cost.
  • If needed, make sure to select UT-PHT-5STEP-CERT when adding items to the shopping cart.
  • Optional Hardwood Case available upon request.
Description Part # Saved Price Select Option Add to
PH Tool 5-Step Calibration Block, Step Thickness: 0.100, 0.200, 0.300, 0.400, and 0.500, Step Face :0.750" x 0.750" (select material)
Model #
UT-PHT-5-STEP-M
$342.00
PH Tool 5-Step Calibration Block, Metric 5A 2.5, 5.0, 7.5, 10.0, and 12.5mm step face (select material)
Model #
UT-PHT-5STEPA-M-M
$391.00
PH Tool 5-Step Calibration Block, Metric 5B 2.0, 4.0, 6.0, 8.0, and 10.0 mm step faces (select material)
Model #
UT-PHT-5STEPB-M-M
$391.00

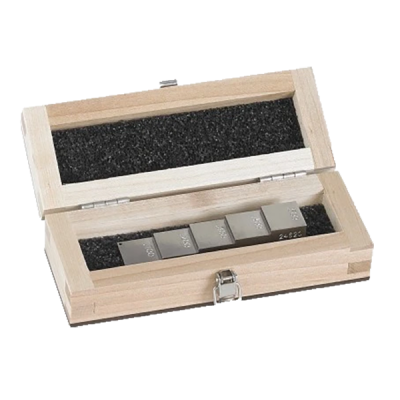

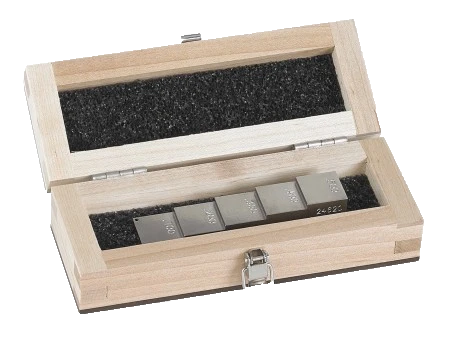

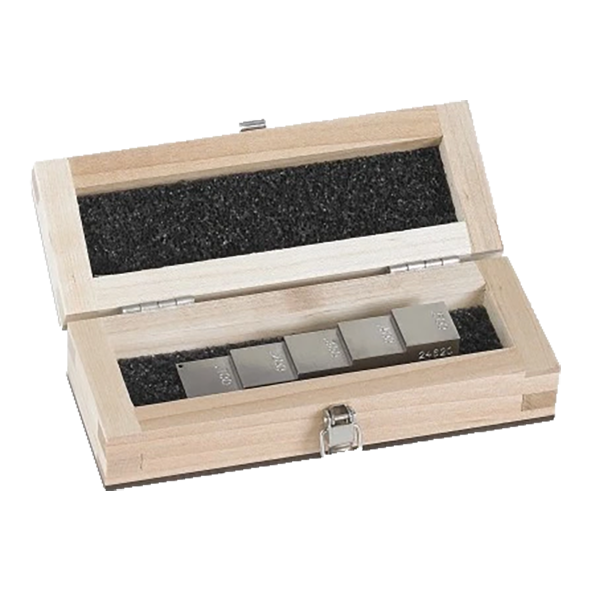

PH Tool Wooden Case for 5-Step Block UT-PHT-5STEP-WC
$57.00
PH Tool 5-Step Dimensional Certificate (New Block) UT-PHT-5STEP-CERT
$65.00
PH Tool 5-Step Dimensional Certificate (Recertification) UT-PHT-5STEP-RECERT
$130.00
