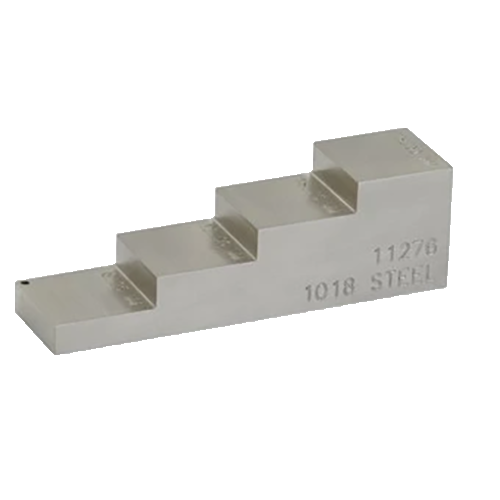

PH Tool 4 Step Calibration Block

PH Tool 4 Step Calibration Block

For thickness and linearity calibration

For Thickness & Linearity Calibration

Inch Version

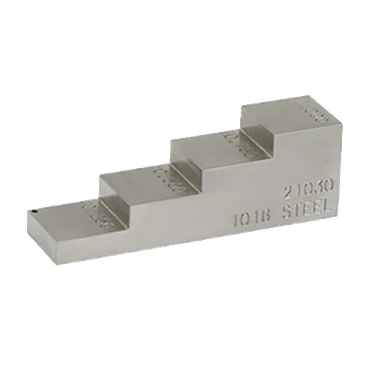

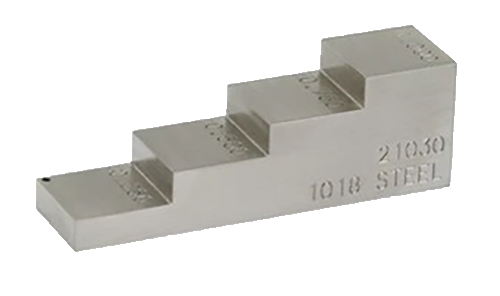

This 4-Step block comes in thicknesses of 0.250, 0.500, 0.750 and 1.000. Step face measures 0.750 x 0.750.

Metric Version

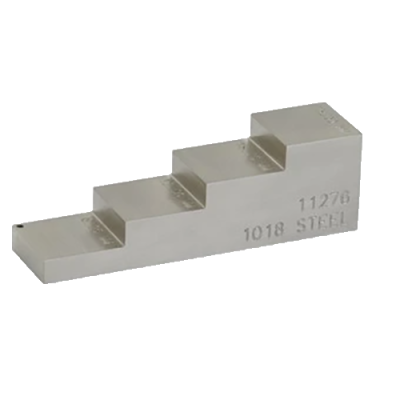

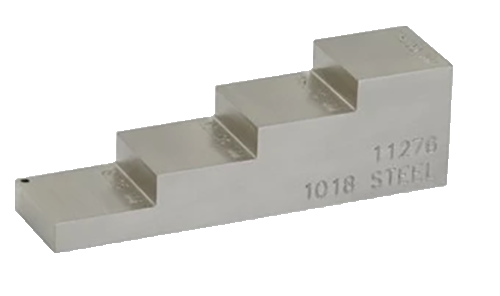

Metric 4A (6.25, 12.5, 18.75 and 25 mm)

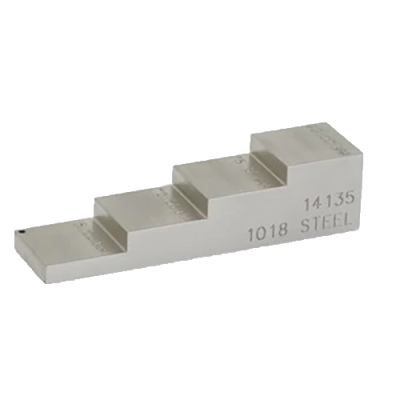

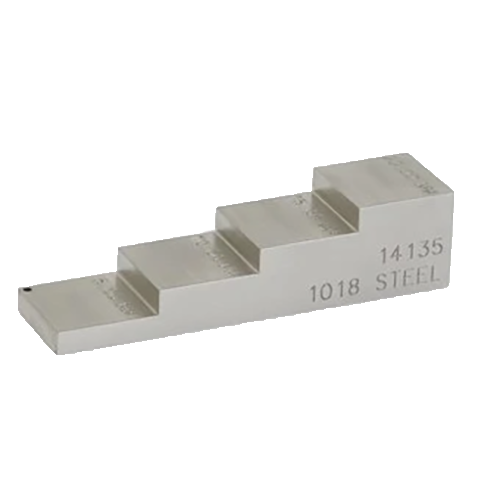

Metric 4B (5.0, 10.0, 15.0 and 20 mm)

Materials

Standard Materials

  • 1018 Steel
  • 7075-T6 Aluminum
  • 304 Stainless Steel
Special Materials (Call for Price)

  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 321 Stainless Steel
  • 410 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • 6AL-4V Titanium
  • 7070-T7451 Aluminum
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium 702

Purchasing Details

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional Certification and Serialization are available at additional cost.
  • If additional calibration is required, make sure to select UT-PHT-4STEP-CERT, when adding items to the shopping cart.

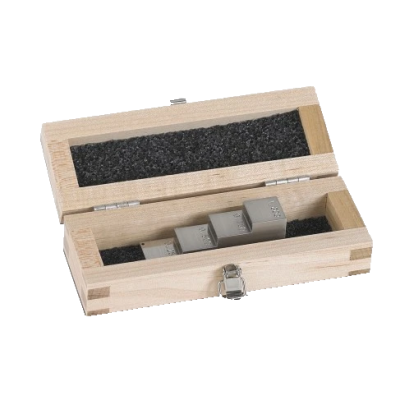

  • Optional Hardwood Case available upon request.
Description Part # Saved Price Select Option Add to
PH Tool 4-Step Calibration Block, Step Thickness: 0.25", 0.50", 0.75", 1.0", Step Face: 0.750" x 0.750" (select material)
Model #
UT-PHT-4STEP-Master
$307.00
PH Tool 4-Step Calibration Block - Metric 4A 6.25, 12.5, 18.75 and 25 mm step faces (select material)
Model #
UT-PHT-4STEPA-M-M
$355.00
PH Tool 4-Step Calibration Block - Metric 4B, 5.0, 10.0, 15.0 and 20 mm step faces (select material)
Model #
UT-PHT-4STEPB-M-M
$355.00

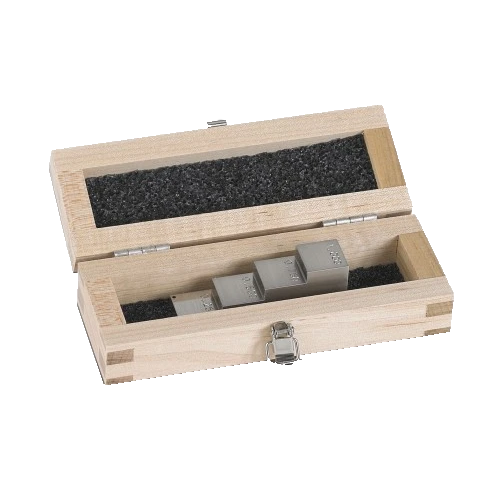

PH Tool Wooden Case for 4-Step Block UT-PHT-4STEP-WC
$57.00
PH Tool 4-Step Dimensional Certificate (New Block) UT-PHT-4STEP-CERT
$59.00
PH Tool 4-Step Dimensional Certificate (Recertification) UT-PHT-4STEP-RECERT
$118.00
