For calibrating ultrasonic flaw detection equipment in both laboratory and on-site conditions, our version of this block includes a 3.9" (100mm) radius, 0.12" (3.0mm) and ~2" (50.0mm) holes, engraved reference mark scales, and two optional slots at the zero point which provide calibrating signals at intervals of 3.9" (100mm) range. In accordance with EN 12223 and ISO 2400. This block is not to be confused with the older style V1/5 (A2) Block from BS 2704, which is similar but contains a 0.06" (1.5mm) through-hole rather than a 0.12" (3.0mm) hole.
Dimensions:
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
|

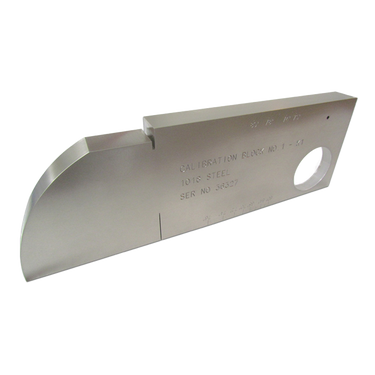

PH Tool Calibration Block No.1 (K1) (specify material)
Model #
|
UT-PHT-CALBLK1-Master |
|
$1,314.00 | ||
| PH Tool Wood Case for Calibration Block No. 1 (K1) | UT-PHT-CALBLK1-CASE |
|
$106.00 | ||
| Dimensional Certification (OPTIONAL) (New Block) | UT-PHT-CALBLK1-CERT |
|
$126.00 | ||
