Ray-Check ASTM E127Area Amplitude Blocks Set of 19

Ray-Check ASTM E127Area Amplitude Blocks Set of 19

Distance/Amplitude Determination per ASTM, Formally Included ASTM E428

Distance/amplitude determination per ASTM

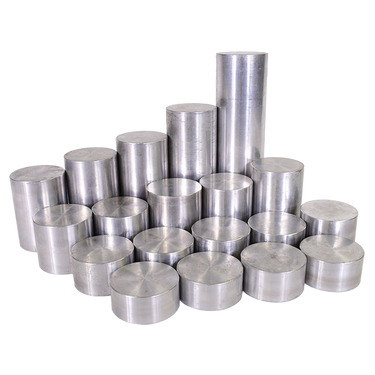

Set of nineteen flat-bottom hole blocks used to determine the relationship between metal travel distance (MTD) and signal amplitude.

Geometry:

Set of 19 blocks which contain hole diameters of 3/64", 5/64" or 8/64" with metal travel distances of: 0.06", 0.12",0.25",0.37",0.50", 0.62",0.75",0.87",1.0",1.25", 1.75", 2.25", 2.75", 3.25", 3.75", 4.25", 4.75", 5.25" and 5.75".

*Please specify either 3/64", 5/64" or 8/64" hole sizes for the whole set when ordering. You cannot order individual hole sizes for the set. Once you select a hole size, that size is for the whole set.



Materials

Standard Materials

  • Steel 4340
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium 6/4
  • Inconel 600

Purchasing Details:

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional / Calibration Certification and Serialization are available at additional cost.
  • If needed, make sure to select UT-RC-ASTM-E127-428-19-CAL when adding items to the shopping cart.
  • Hardwood Case Included.
Description Part # Saved Price Select Option Add to
ASTM E127 (Formally ASTM E428) Area Amplitude Calibration Blocks, Set of 19 with Case (Select Material and Hole Size)
Model #
UT-RC-ASTM-E127-19-Master
$4,313.00
ASTM E127 Calibration Blocks, Set of 19, Dimensional Certification and Serialization UT-RC-ASTM-E127-428-19-CAL
$1,233.00
