Ray-Check ASTM E127Area Amplitude Blocks Set of 10

Ray-Check ASTM E127Area Amplitude Blocks Set of 10

Distance and Area/Amplitude Determination per ASTM, Formally including ASTM E428

Distance and area/amplitude determination per ASTM

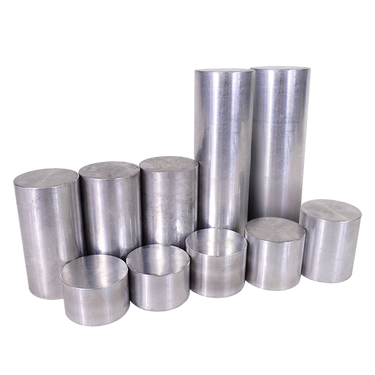

Combination distance and area amplitude set of ten flat-bottom hole blocks.

Geometry:

Set of 10 Contains the following hole diameters and metal travel distances: 3/64" - 3.0" (3-0300), 5/64" - 0.12" (5-0012), 5/64" - 0.25" (5-0025), 5/64" - 0.50" (5-0050), 5/64" - 0.75" (5-0075), 5/64" - 1.5" (5-0150), 5/64" - 3.0" (5-0300), 5/64" - 6.0" (5-0600), 8/64" - 3.0" (8-0300) and 8/64" - 6.0" (8-0600).

Materials

Standard Materials

  • Steel 4340
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium 6/4
  • Inconel 600



Purchasing Details:

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional / Calibration Certification and Serialization are available at additional cost.
  • If needed, make sure to select UT-RC-ASTM-E127-428-10-CAL when adding items to the shopping cart.
  • Hardwood Case Included.
Description Part # Saved Price Select Option Add to
ASTM E127 (Formally ASTM E428) Area Amplitude Calibration Block, Set of 10 with Case (select material)
Model #
UT-RC-ASTM-E127-10-Master
$2,448.00
ASTM E127 Calibration Blocks, Set of 10, Dimensional Calibration and Serialization UT-RC-ASTM-E127-428-10-CAL
$665.00
