PH Tool ASME Pipe Calibration Block (434.3)

PH Tool ASME Pipe Calibration Block (434.3)

Overview

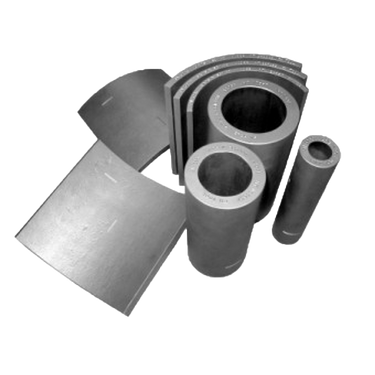

PH Tool manufactures hundreds of these ASME Angle Beam Blocks every year. A calibration block should be a section of pipe of the same nominal size, schedule, heat treatment, and material specification as the material being examined. PH Tool maintains a large inventory of raw material for the machining of these standards, or they can be made from customer-supplied material as well.

Geometry:

Contains 4 notches: Axial and circumferential on both OD and ID at a depth of 8-11% of the wall thickness. Notches are 1/4" max wide x 1" min long. Blocks 4 NPS and smaller are left at 360°, while blocks over 4 are milled to an 8 arc section. All blocks are 8" axial length, or 8T, whichever is greater. Made in accordance with ASME Section V Article 4 Figure T-434.3.



Purchasing Details

When requesting a quote, make sure to specify:

  • Pipe Material
  • Pipe NPS / OD Size
  • Pipe Schedule / Wall Thickness
  • If PH Tool is supplying the material or will it be customer supplied
  • Any changes or modifications requested to the ASME block design
Description Part # Saved Price Select Option Add to
PH Tool ASME Pipe Calibration Blocks (434.4) UT-PHT-ASME-PIPE-434.3
Request Pricing
