Ultra-Instruments RT18-B Electric Powered Rail Tester


Email Print
Ultra-Instruments RT18-B Electric Powered Rail Tester
Product Description
Additional Info
Product Literature

Ultra-Instruments

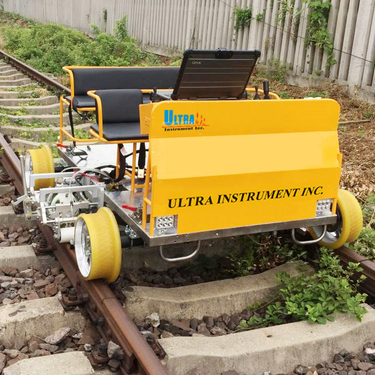

RT18-B Electric Powered Rail Tester

RT18-B RT18-b


Specifications:


  • Weight: 265 lbs. (120 kg) (not including battery, wheel probe trolley and water. Vehicle can be separated into 3 parts, each part is not more than 132 lbs. (60 kg). Two people can operate it).
  • Max Testing Speed: 12.4 m/hr. (20 km/hr.)
  • Overall Size: 5.4' x 5.4' x 3.3' (1.6 x 1.6 x 1.0 m)
  • Working Voltage: 48V
  • Channels: 18
  • Probes: Two wheel probes for two rails, each wheel probe has 9 channels, six (6) 7 degree probes, two (2) 37.5 degree probes and one (1) zero degree probe.
  • Frequency: 2 - 5 MHz
  • Coupling Agent: Water
  • Display Mode: B-Scan
  • Alarm: Alarm icon display together with audible alarm, threshold value adjustable.
  • Repetition Rate: 0.12 inch/pulse (3mm/pulse)
  • Applicable Rail: 88 - 165 lbs. (40-75 kg)
  • Gain Range: 0-80dB
  • Attenuation Error: Less than 1dB for every 12dB
  • Assembly and disassembly time: No more than 5 minutes
