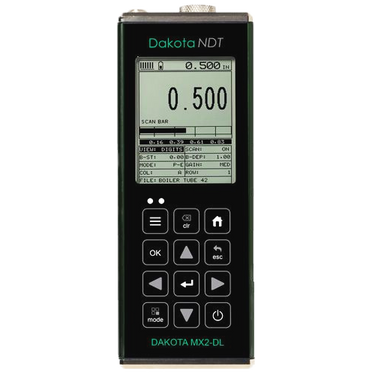

Dakota NDT MX2-DL A/B Scope (Formerly MVX)

Dakota NDT MX2-DL A/B Scope (Formerly MVX)

Same Enclosure, New Electronics

The MX2-DL is Dakota's most basic A-Scan thickness scope, with the ability to satisfy most advanced thickness applications. It steps outside of our basic digital line of gauges by offering the versatility of a scope based instrument. Display options include: RF, Rectified, B-Scan and Large Digits. An alpha numeric data logging format with 4 GB internal SD memory stands to offer far more storage than ever needed.

Key Features:

  • 64 custom setups for quick load and testing
  • Quick access Thru-Paint Mode
  • Multiple calibration and material selection options
  • Auto find waveform feature



Pulse-Echo Mode (P-E)

Pulse-Echo (P-E) Mode measures from the surface to the back-wall echo. It is used on bare material to determine wall loss on corroded, eroded and pitted materials. When measuring through a coating the measurement will include an error due to the coating thickness x 2-3 because of the difference in sound velocity between the coating and test material.

1. Couplant   3. Testing Material

Echo-Echo (E-E) Mode

Echo-Echo (E-E) Mode measures from the back-wall echo to its multiple-echo and eliminates the error due to the coating. Measurements can only be made on materials that have parallel surfaces as the multiple-echo will disappear if the back-wall is corroded or pitted.

1. Couplant   2. Coating   3. Test Material

Features:

  • Measuring Modes: Pulse-Echo (P-E) Flaws & Pitting & Echo-Echo (E-E) Thru-Paint.
  • Pulser: Square wave pulser with adjustable pulse width (spike, thin, wide).
  • Receiver: Manual or AGC gain control with 50dB range, depending on mode selected.
  • Timing: Precision TXCO timing with single shot 100MHz 8 bit ultra-low power digitizer.
  • Two independent gates.
  • Setups: 64 custom user-definable setups; factory setups can be edited.
  • Dual element style transducers. Selectable transducer types with built-in dual path error correction for improved linearity.
  • Alarm Mode: Set hi and lo tolerances with audible beeper and visual LEDs
  • Scan Mode: Takes 250 readings per second and displays the minimum reading found when the transducer is removed.
  • Windows® PC & OSX interface software.

Primary Improvements:

  • USB-C connectivity with file system
  • Serial over USB (using CDC class)
  • 4 GB internal SD memory
  • 50dB gain range
  • Screen update rate (25Hz)
  • PRF (pulse repetition frequency 250Hz)
  • High speed scan 200Hz
  • TDG (time dependent gain) - built into selectable probe types
  • Line power available using USB-C to PC or standard power adaptor
  • Quick screen capture to (.tif) file
  • Internal time and date stamp

Technical Specifications

MX2-DL Specifications

Measuring Range
Pulse-Echo Mode (P-E) - (Pt & Flaw Detection): Measures from 0.025 in. to 100 ft. (0.63 mm to 30.48 M)
Echo-Echo Mode (E-E) - (Thru Paint & Coatings) measures from 0.100" to 6.0" (2.54 to 152.4 mm). Range will vary +/- depending on the coating.
Resolution: +/- .001" (0.01 mm)
Velocity Range: 0.0122 to 0.7300 inches/µs (309.88 to 18542 meters/sec)
Single and Two point calibration option, or selection of basic material types.
Units: Imperial & Metric
Display Views
A-Scan: Rectified +/- (flaw view) RF (full waveform view). Refresh rate at 25 Hz.
B-Scan: Time based cross section view. Display speed variable (10 to 200 readings per second).
Large Digits: Standard thickness view; Digit Height: 0.700 in (17.78 mm).
Scan Bar: Speed 10 Hz. Viewable in B-Scan and Large Digit views
Bar Graph: Indicates stability of measurement
Power Source
Line Power: USB-C to PC or power outlet.
Batteries: Three AA cells. Alkaline - 35 hrs., Nicad - 10 hrs. and NI-MH - 35hrs.
Auto shutoff after 5 minutes of inactivity
Battery status icon
Certification
Factory calibration traceable to NIST & MIL-STD-45662A.
Warranty
2 year limited

Kit Includes

MX2-DL Kit Includes

  • Unit
  • Dakota NDT Dual Probe, Coating Thickness, 5 MHz x 1/4", with Lemo 00 4' Cable, Potted, Side
  • Couplant
  • Manual
  • Plastic Carrying Case
  • Certificate of Conformance
  • AA Batteries
  • PC Software and Data Transfer Cable included with data logging gauges.
  • 2 Year Limited Warranty

Probe Selection

Dakota NDT HD Thru-Coating Thickness Gauging Probes

Dakota NDT Pulse Echo (P-E) Thickness Probes

Protective Case Options

PN: UT-DU-F-149-0001

PN: UT-DU-A-149-6002

Includes 2 Year Limited Warranty

Product Literature

Description Part # Saved Price Select Option Add to
Dakota NDT MX2-DL A/B Scan Scope Kit Includes: Unit, High Damped, 5 MHz, 1/4" (T-102-2700) Transducer, Couplant, Manual, Plastic Carrying Case, Certificate of Calibration & AA Batteries. PC Software & Data Transfer Cable included. (Formerly MVX) UT-DU-Z-149-0006
$2,850.00
Dakota NDT Nylon protective instrument case with neck strap (for A-Scan/B-Scan Instruments) UT-DU-F-149-0001
$90.00
Dakota NDT Injection molded rubber protective instrument case with neck & hand straps and a kickstand for A-Scan/B-Scan instruments UT-DU-A-149-6002
$115.00
