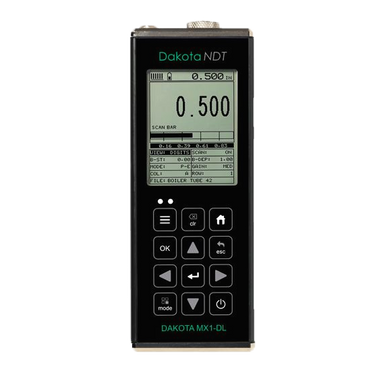

Dakota NDT MX1-DL (Formerly MMX-7)

Used for Corrosion & Pitting, Tube & Pipe, Tanks, Boilers, Glass and a Variety of Applications

Same Enclosure, New Electronics

Primary Improvements:

USB-C connectivity w/file system
Serial over USB (using CDC class)
4 GB internal SD memory
50dB gain range
Screen update rate (25Hz)
PRF (pulse repetition frequency 250Hz)
High speed scan 200Hz
TDG (time dependent gain) - built into selectable probe types
Line power available using USB-C to PC or standard power adaptor
Quick screen capture to (.tif) file
Internal time and date stamp

Pulse-Echo Mode (P-E)

Pulse-Echo (P-E) Mode measures from the surface to the back-wall echo. It is used on bare material to determine wall loss on corroded, eroded and pitted materials. When measuring through a coating the measurement will include an error due to the coating thickness x 2-3 because of the difference in sound velocity between the coating and test material.

1. Couplant 3. Testing Material

Echo-Echo (E-E) Mode

Echo-Echo (E-E) Mode measures from the back-wall echo to its multiple-echo and eliminates the error due to the coating. Measurements can only be made on materials that have parallel surfaces as the multiple-echo will disappear if the back-wall is corroded or pitted.

1. Couplant 2. Coating 3. Test Material

Features

Measuring modes: (P-E) pulse-echo (flaws & pits) & (E-E) echo-echo (thru paint).
Pulser: 150 volt square wave pulser.
Receiver: Manual or AGC gain, depending on measure mode selected (50 dB gain range).
Timing: Precision TCXO timing with single shot 100MHz 8 bit ultra-low power digitizer.
Linear time dependent gain (TDG). Built into each transducer type.
Memory: 4 gigabytes internal SD card & Alpha numeric data storage format
Setups: 64 user custom user-definable setups, factory setups can be edited.
Selectable transducer types with built-in path error correction for improved linearity.
Alarm Mode: Set hi or lo tolerances with audible beeper and visual LEDs.
Scan Mode: Takes 250 readings per second and displays the minimum reading found when the transducer is removed.
Windows PC & OSX interface software

Display

Large Digits: Standard thickness view; Digit Height: 0.700" (17.78mm)
B-Scan: Time based cross section view. Display speed variable (10 to 200 readings per second).
Scan Bar: Speed 10 Hz. Viewable B-Scan and Large Digit views.
Bar Graph: Indicates stability and measurement. Viewable in B-Scan and Large Digit views.

Power Source

Line Power: USB-C to PC or power outlet.
Batteries: 3 AA cells. Alkaline - 35 hrs., Nicad - 10 hrs. and NiMH - 35 hrs.
Auto shutoff after 5 minutes of inactivity.
Battery status icon.

Technical Specifications

MX1-DL Specifications

Measuring Range

Pulse-Echo Mode (P-E) - (Pit & Flaw Detection): Measures from 0.025" to 100' (0.63mm to 30.48M).

Echo-Echo Mode (E-E) - (Thru Paint & Coatings): Measures from 0.100" to 6.0" (2.54 to 152.4mm). Range will vary +/- depending on the coating.

Resolution: +/- .001" (0.01mm)

Velocity Range: 0.0122 to 0.7300 inches/µs (309.88 to 18542 meters/sec)

Single and Two point calibration options or selection of basic material types.

Units: Imperial & Metric

Physical Attributes

Weight: 13.5 oz. (with batteries)

Dimensions (WxHxD): 2.5" x 6.5" x 1.24" (63.5 x 165 x 31.5mm)

Operating Temperature: -14˚ to 140˚F (-10˚ to 60˚C)

Keyboard: Membrane switch with 12 tactile keys.

Case: Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).

Display: 1/8in VGA grayscale display (240 x 160 pixels); viewable area 2.4 x 1.8in (62 x 5.7mm);
EL backlit (on/off/auto invert).

Certification

Factory calibration traceable to NIST & MILSTD-45662A

Warranty

2 year limited

Kit Includes

MX1-DL Kit Includes

Unit
Selectable Transducer
Couplant
Manual
Plastic Carrying Case
Certificate of Calibration
AA Batteries
PC Software and Data Transfer Cable included with data logging gauges
2 Year Limited Warranty

Probe Selection

Dakota NDT HD Thru-Coating Thickness Gauging Probes

Dakota NDT Pulse Echo (P-E) Thickness Probes

Protective Case Options

PN: UT-DU-F-149-0001

PN: UT-DU-A-149-6002

Includes 2 Year Limited Warranty

Product Literature

Description	Part #	Price
Dakota NDT MX1-DL Kit includes: Unit, T-102-2700 Transducer, Couplant, Manual, Plastic Carrying Case, Certificate of Calibration & AA Batteries. PC Software and Data Transfer Cable included w/ data logging gauges. (Formerly MMX-7)	UT-DU-Z-160-0005	$2,350.00
Dakota NDT Nylon protective instrument case with neck strap (for A-Scan/B-Scan Instruments)	UT-DU-F-149-0001	$90.00
Dakota NDT Injection molded rubber protective instrument case with neck & hand straps and a kickstand for A-Scan/B-Scan instruments	UT-DU-A-149-6002	$115.00
