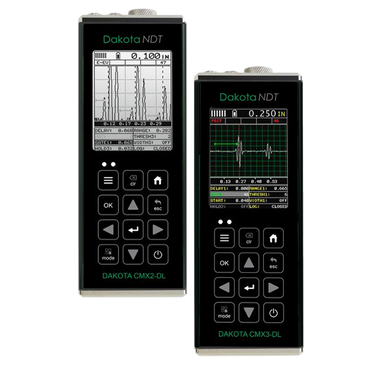

Dakota NDT CMX2-DL & CMX3-DL (CMXDL+ & CMXDL+C)

Dakota NDT CMX2-DL & CMX3-DL (CMXDL+ & CMXDL+C)

Multi-Mode Thickness Gauge in one easy-to-use, economical instrument.

A/B Scan Material & Coating Thickness Gauges

The CMX2-DL & CMX3-DL gauges have all the features of the basic CMX1 models, plus a full featured A-Scan presentation with RF and Rectified viewing options. The CMX2-DL is equipped with 3 fully independent gates (start, stop, width, & Threshold). Equipped with a 110dB gain range for added flexibility with a variety of transducer types and applications. Selectable 50 volt pulser boost or cut (100 – 200 volts). The CMX3-DL color version offers a rotating portrait or landscape option to increase the A-Scan viewing area. Our DakMaster java-based PC or MAC OSX software makes this kit truly the Cadillac of the CMX series.

Pulse-Echo Mode (P-E)

Pulse-Echo (P-E) Mode measures from the surface to the back-wall echo. It is used on bare material to determine wall loss on corroded, eroded and pitted materials. When measuring through a coating the measurement will include an error due to the coating thickness x 2-3 because of the difference in sound velocity between the coating and test material.

1. Couplant   3. Testing Material

Echo-Echo (E-E) Mode

Echo-Echo (E-E) Mode measures from the back-wall echo to its multiple-echo and eliminates the error due to the coating. Measurements can only be made on materials that have parallel surfaces as the multiple-echo will disappear if the back-wall is corroded or pitted.

1. Couplant   2. Coating   3. Test Material

Pulse-Echo-Coating (PECT) Mode - Coating On

Measures Thru-Coating, detects pitting and measures when Echo-Echo (E-E) mode fails. PECT is a unique method that provides the benefits of Pulse-Echo (P-E) and Echo-Echo (E-). Measure coated material without errors caused by the coating while being able to measure on materials with corroded and pitted back-walls.

1. Couplant   2. Coating   3. Test Material

CMX2-DL & CMX3-DL Upgrades Include:

  • Powered by a 100MHz DSP platform using FPGA technology
  • Display Options: Grayscales 1/8 VGA or AMOLED color 1/4 VGA
  • Two Channels: Dual pulsers and receivers
  • A-Scan: Rectified +/- (flaw view). RF (full waveform view). Portrait & landscape views (color only).
  • Pulse Repetition Frequency: 250 Hz
  • A-Scan Refresh Rate: B&W 25 Hz, color 60 Hz.
  • Adjustable gain: 110 dB range.
  • Automatic gain control (AGC).
  • Linear time dependent gain (TDG) with adjustable slope
  • Probes: Single, Dual, Delay line, Pencil.
  • Memory: 4 Gb internal SD card.
  • Output: Direct USB-C 1.1 PC connectivity.
  • Data Output: USB-C Port. Windows PC interface software.
  • Line Power: USB to PC or power outlet.

Technical Specifications

CMX2-DL & CMX3-DL Specifications

Measuring Range
Pulse-Echo Mode (P-E) - (Pit & Flaw Detection) measures from 0.025 in. to 100 ft. (0.63 mm to 30.48 M).
Pulse-Echo Coating Mode (PECT) - (Material, Coating, Pit & Flaw Detection);
  • Material: 0.025 in. to 100 ft. (0.63 mm to 30.48 M).
  • Coating: 0.001 to 0.100 in (0.01 to 2.54 mm)
Pulse-Echo Temp Comp Mode (PETP) - (Pit & Flaw Detection) Auto temperature compensation - measures from 0.025 in. to 100 ft. (0.63 mm to 30.48 M).
Echo-Echo Mode (E-E) - (Thru Paint & Coatings) measures from 0.100 to 6.0 in (2.54 to 152.4 mm). Range will vary +/- depending on the coating
Echo-Echo Verify Mode (E-EV) - (Thru Paint & Coatings) measures from 0.100 to 1.0 in (2.54 to 102 mm). Range will vary +/- depending on the coating.
Coating Only Mode (CT) - (Coating Thickness) Measures from 0.0005 to 0.100 in (0.0127 to 2.54 mm). Range will vary +/- depending on the coating.
Resolution: +/- 0.001 in (0.01mm). +/- 0.0001 in (0.001 mm).
Velocity Range: 0.0122 to 0.7300 inches/µs / 309.88 to 18542 meters/sec
Single and Two point calibration option for material & coating, or selection of basic material types.
Units: Imperial & Metric
Certification
Thickness Gauge: Factory calibration traceable to NIST & MIL-STD-45662A.
Warranty
2 year limited

Kit Includes

CMX2-DL & CMX3-DL Kits Include

  • Unit
  • 5MHz x 1/4" PECT Transducer with Lemo 00 4' Cable, Potted, Side
  • Couplant
  • Manual
  • Certificate of Calibration
  • Plastic Carrying Case
  • AA Batteries
  • PC Software download and Transfer Cable with USB Connectivity Included
  • 2 Year Limited Warranty

Probe Selection

Dakota NDT (PECT) Thickness and Coating Probes

Dakota NDT HD Thru-Coating Thickness Gauging Probes

Dakota NDT Pulse Echo (P-E) Thickness Probes

Dakota NDT HT (High Temperature) Probes

Protective Case Options

PN: UT-DU-F-149-0001

PN: UT-DU-A-149-6002

Includes 2 Year Limited Warranty

Product Literature

Description Part # Saved Price Select Option Add to
Dakota NDT CMX2-DL Kit Includes: Unit, Standard UT-DU-T-102-2900 Transducer, Couplant, Manual, Plastic Carrying Case, and AA Batteries. PC Software and Transfer Cable included. 2 year warranty. (Formerly CMXDL+) UT-DU-Z-172-0005
$3,375.00
Dakota NDT CMX3-DL Kit Includes: Unit, Standard UT-DU-T-102-2900 Transducer, Couplant, Manual, Plastic Carrying Case, and AA Batteries. PC Software and Transfer Cable included. 2 year warranty. (Formerly CMXDL+C) UT-DU-Z-187-0005
$3,675.00
Dakota NDT Dual Probe, Coating Thickness, 5 MHz x 3/16" (specify connection type)
Model #
UT-DU-T-101-2900-Master
$360.00
Dakota NDT Dual Probe, Coating Thickness, 7.5 MHz x 3/16", (specify connection type)
Model #
UT-DU-T-101-3900-Master
$360.00
Dakota NDT Dual Probe, Coating Thickness, 7.5 MHz x 1/4", Potted, (specify connection type)
Model #
UT-DU-T-102-3900-Master
$360.00
Dakota NDT Dual Probe, Coating Thickness, 3.5 MHz x 1/2", HD (Hi Damped), (specify connection type)
Model #
UT-DU-T-104-9900-Master
$375.00
Dakota NDT Dual Probe, Coating Thickness, 5 MHz x 1/4", with Lemo 00 4' Cable (specify connection type)
Model #
UT-DU-T-102-2900-Master
$360.00
Dakota NDT Dual Probe, Coating Thickness, 5 MHz x 1/2", (specify connection type)
Model #
UT-DU-T-104-2900-Master
$375.00
Dakota NDT Nylon protective instrument case with neck strap (for A-Scan/B-Scan Instruments) UT-DU-F-149-0001
$90.00
Dakota NDT Injection molded rubber protective instrument case with neck & hand straps and a kickstand for A-Scan/B-Scan instruments UT-DU-A-149-6002
$115.00
