SignalX IR-192 CR System

SignalX IR-192 CR System

50 Micron Sample Rate

Built for Portability

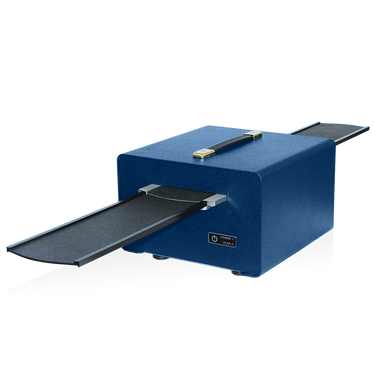

The SignalX IR-192 is a compact, rugged, high-resolution imager designed specifically to aid in inspecting pipe welds, joints, and potential fractures in the surfaces of industrial lines. The small form factor and collapsible conveyor make the SignalX IR-192 a strong choice when working with important and vital components in challenging, remote, locations. The image conveyor can work with phosphor plates up to 96" long and 5" wide, allowing for the imaging of pipes of multiple diameters. The IR-192 is light enough to be carried into the field and operated by a portable power supply. Using the True Flat Scan Path process, the SignalX IR-192 will get the job done with considerable ease and efficiency while prolonging the life of your imaging plates.







Features

  • 50 Micron Sample Rate
  • 29 pounds - light enough to carry into the field
  • Compact - Small form factor and collapsible conveyor
  • Removable and Extendable Feeding Trays
  • Advanced CR Technology
  • Multiple Image Plate Sizes
  • Contact Free Image Processing
  • Universal Power Supply
  • Portable and Light Weight



Designed For

  • Weld Inspections
  • Oil & Gas Pipelines
  • Harsh Outdoor Environments
  • Cost-Effective Solutions

Technical Specifications

IR-192 Specifications

Greyscale Resolution 16 bits/ pixel source file, 65536 shades of gray
Pixel Pitch 50, 100, 150, 200
Scanning Process True Flat Scan Path
Magnetic Drive Belt
Weight 29 lbs. (13.15 kg)
Dimensions (LxDxH) 47.66" x 13" x 9.5"
Throughput 60 Images Per Hours - Mixed Sized
Feed Mechanism Removable and Extendable Feeding Trays
Material Size Up to 5" x 96" Scan Area
Power Source 100-240V AC/ 2.5 max
47-63Hz (Universal Power Supply)
Interface USB 2.0
Heat Generation Standby 230W, maximum 1610W
Operating Conditions Temperature: 0-40°C/ 32-105°F, Temperature Change: 0.5°C/ min, Humidity: 15%-95% RH, Magnetic Fields: maximum 1260 μT (in conformance with EN 61000-4-8: level 3), 10 A/m
Light / Sensor Diode/ PMT
Erase Method Automatic, LED
Network DICONDE Compliant
Operating System Windows 7, 8, 10 - 64-Bit
IR-192 Dimensions Diagram

47.66" x 13" x 9.5" (LxDxH), 17.23" (Tray Length), 5.025" (Material Bay)

Description Part # Saved Price Select Option Add to
Pacific NDT IR-192 CR System for field use with Gamma or X-ray RT-PI-IR192 Request Pricing
