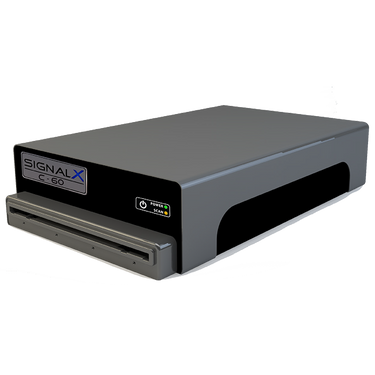

SignalX C-60 CR Imager

SignalX C-60 CR Imager

True Flat Scan, 25 Micron Sample Rate, Affordable

Overview

The SignalX C-60 is a versatile, rugged, high resolution imager primarily used on industrial sites and security applications, assisting in the detection of corrosion in pipes and containers due to hazardous fluids and imaging of potentially sensitive or explosive objects in a secured environment. The SignalX C-60 provides a safe, sure-fire solution compared to other similar products in its field, and can be easily serviced on the job site. Using the True Flat Scan process, the SignalX C-60 will get the job done with considerable ease and efficiency while prolonging the life of your imaging plates. The SignalX C-60 is built to last at an affordable price.



Features

  • 25 Micron Sample Rate
  • 59 lbs.
  • Advanced CR technology
  • True Flat Scan Path



Designed For

  • Security Applications
  • Power and Gas Plants
  • Unknown or Sensitive Items
  • Explosives
  • Cost-Effective Solutions

Technical Specifications

C-60 Specifications

Grayscale Resolution 16 bits/ pixel source file, 65536 shades of gray
Pixel Pitch 25, 50, 100, 150, 200
Scanning Process True Flat Scan Path
Single Action Drive Mechanism
Weight 56 lbs. (25.4 kg)
Dimensions (LxDxH) 17.91" x 30.69" x 7.34"
Throughput 76 plates per hour
Feed Mechanism Flatbed Hard Cassette and Flexible Cassette Option
Material Size 14" x 17" (35 x 43 cm), 10" x 12" (25 x 30 cm)
Power Source 100-240V AC/ 2.5 max
47-63Hz (Universal Power Supply)
Interface USB 2.0
Heat Generation Standby 230W, maximum 1610W
Operating Conditions Temperature: 0-40°C/ 32-105°F, Temperature Change: 0.5°C/ min, Humidity: 15%-95% RH, Magnetic Fields: maximum 1260 μT (in conformance with EN 61000-4-8: level 3), 10 A/m
Light / Sensor Diode/ PMT
Erase Method Automatic, LED
Network DICONDE Compliant
Operating System Windows 7, 8, 10 - 64-bit
C-60 Dimensions Diagram

17.91" x 30.69" x 7.34" (LxDxH), 10.67" (tray size)

Description Part # Saved Price Select Option Add to
Pacific NDT SignalX C-60 CR Imager RT-PI-CR60 Request Pricing
