Sherwin Fluorescent P.E. Dye Penetrants

Sherwin Fluorescent P.E. Dye Penetrants

Sherwin Post Emulsifiable Fluorescent Penetrants

METHODS B, & D, and C

The following non-water washable penetrants, RC-29, RC-50, RC-65 and RC-77, are approved as Method B with ER-85 Emulsifier, Method D with ER-83A Emulsifier, or as Method C with any approved "cleaner/ remover."

Special Features: Low penetrant consumption due to low viscosity, very good resistance to over washing with ER83 (surface effect), low background and good contrast, flash point above 100°C.

Level 1

RC-29 is a level 1, Method B, D non-water washable fluorescent penetrant. RC-29 is a versatile, general purpose penetrant for use on a variety of materials, including aluminum and magnesium. Complies with low sulfur and low halogen requirements.

Technical Data Sheet

Level 2

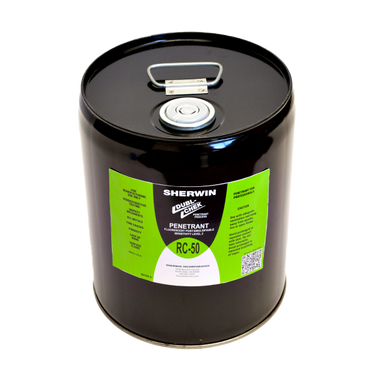

RC-50 is a level 2, Method B and D non-water washable fluorescent penetrant for inspecting castings, extrusions and similar parts. RC-50 is a versatile, general purpose penetrant for use on a variety of materials, including aluminum and magnesium. Complies with low sulfur and low halogen requirements. RC-50 has been used by aerospace, airframe, turbine engine and missile manufacturers for over a decade.

Technical Data Sheet

Level 3

RC-65 is a level 3, Method B & D non-water washable fluorescent penetrant for inspecting castings, extrusions and similar parts. RC-65 is a versatile, general purpose penetrant for use on a variety of materials, including aluminum and magnesium. Complies with low sulfur and low halogen requirements. RC-65 has been used by aerospace, airframe, turbine engine and missile manufacturers for over a decade.

Technical Data Sheet

Level 4

RC-77 is a level 4, Method B & D non-water washable fluorescent penetrant for inspecting castings, extrusions and similar parts. RC-77 is a versatile, general purpose penetrant for use on a variety of materials, including aluminum and magnesium. Complies with low sulfur and low halogen requirements. RC-77 has been used by aerospace, airframe, turbine engine and missile manufacturers for over a decade.

Technical Data Sheet

RC-88 is a level 4, Method B & D non-water washable fluorescent penetrant formulated for super critical inspections. RC-88 is primarily used for evaluating the critical components of turbine engines such as discs, compressor blades, and fan blades.

Technical Data Sheet

Emulsifiers

ER-85 is a lipophilic emulsifier used in the inspection penetrant process to remove excess surface penetrant. ER-85 is a Method B emulsifier. It does not require a pre wash step and is used at full strength. It meets the requirements for low sulfur, low halogen, and low-sodium.

Technical Data Sheet

ER-83A is a hydrophilic emulsifier used diluted with water to emulsify Sherwin’s non-water washable penetrants. ER-83A removes surface, non-water washable penetrants by spray or immersion. It complies with low sulfur, low halogen, and low-sodium requirements.

Technical Data Sheet

Description Part # Saved Price Select Option Add to
Sherwin RC-29 Post Emulsifiable Fluorescent Penetrant (select packaging)
Model #
PT-SN-RC29-Master $122.00
Sherwin RC-50 Post Emulsifiable Fluorescent Penetrant (select packaging)
Model #
PT-SN-RC50-Master $136.00
Sherwin RC-65 Post Emulsifiable Fluorescent Penetrant (select packaging)
Model #
PT-SN-RC65-Master $193.00
Sherwin RC-77 Post Emulsifiable Fluorescent Penetrant (select packaging)
Model #
PT-SN-RC77-Master $203.00
Sherwin RC-88 Post Emulsifiable Fluorescent Penetrant (select packaging)
Model #
PT-SN-RC88-Master $299.00
