Ray-Check V-2 Calibration Block - Metric

Ray-Check V-2 Calibration Block - Metric

Overview

Application:

Angle Beam Calibration

Geometry:

12.5mm, 20mm or 25mm thick, 25mm and 50mm radius with 1.5 or 5mm side drilled hole.

Materials

Standard Materials

  • Carbon Steel A36/1018
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium 6/4
  • Inconel 600
  • Monel 400
  • Hastelloy X

Purchasing Details:

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional / Calibration Certification and Serialization are available at additional cost.
  • If needed, make sure to select UT-RC-V2-Cal when adding items to the shopping cart.
  • Optional Hardwood Case available upon request.

Product Literature

Description Part # Saved Price Select Option Add to
V-2 Calibration Block, Metric, Block Thickness 25mm (Specify Hole Diameter of 1.5mm or 5mm) (select material)
Model #
UT-RC-V2-CS-25-Master
$392.00
V-2 Calibration Block, Metric (Specify Block Thickness of 12.5mm or 20mm and Hole Diameter of 1.5mm or 5mm) (select material)
Model #
UT-RC-V2-CS-Master
$356.00
V-2 Calibration Block, Calibration and Serialization UT-RC-V2-CAL
$60.00 $53.00

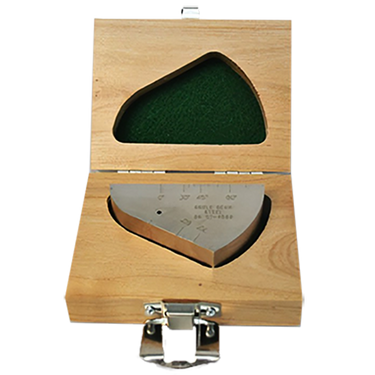

V-2 Calibration Block, Wood Case UT-RC-V2-CASE
$56.00 $48.00
