Ray-Check Mini Resolution Block

Ray-Check Mini Resolution Block

Checks Resolution Capabilities and calibrates high resolution test equipment

Overview:

Application:

To check resolution capabilities and calibrate high resolution test equipment.

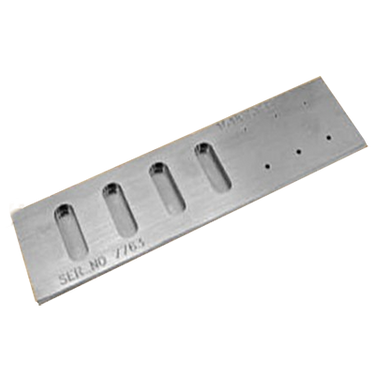

Geometry:

  • Four milled slots, 3/16" wide x 5/8" long
  • Six flat bottom holes, three 3/64" diameter holes and three 1/64" holes.

Materials

Standard Materials

  • Carbon Steel A36/1018
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium 6/4
  • Inconel 600
  • Monel 400
  • Hastelloy X

Purchasing Details:

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional / Calibration Certification and Serialization are available at additional cost.
  • If needed, make sure to select UT-RC-MR-Cal when adding items to the shopping cart.
  • Optional Hardwood Case available upon request.
Description Part # Saved Price Select Option Add to
Mini Resolution Block (select material)
Model #
UT-RC-MR-CS-Master
$423.00
Mini Resolution, Dimensional Calibration and Serialization UT-RC-MR-CAL
$306.00
Mini Resolution, Wood Case UT-RC-MR-CASE
$48.00
