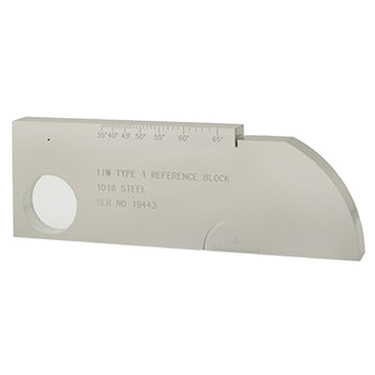

Ray-Check IIW-1

Ray-Check IIW-1

Per International Institute of Welding (llW), ASTM E164 & MIL-STD-2154

Applications:

Calibration of transverse and longitudinal wave distance, setting determination of the sound beam point of incidence and the exact angle of propagation.

Geometry:

1 "x 4"x 12". Contains 2" diameter hole and 4" radius. Also, 1/8" x 1" radius alternate reflector and 1/16" deep on echo side.





Materials

Standard Materials

  • Carbon Steel A36/1018
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium 6/4
  • Inconel 600
  • Monel 400
  • Hastelloy X

Purchasing Details:

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional / Calibration Certification and Serialization are available at additional cost.
  • If needed, make sure to select UT-RC-IIW-Cal when adding items to the shopping cart.
  • Optional Hardwood Case available upon request.
Description Part # Saved Price Select Option Add to
IIW-1 Calibration Block, Inch (select material)
Model #
UT-RC-IIW1-CS-Master
$636.00
IIW-1 Calibration Block, Metric (select material)
Model #
UT-RC-IIW1-CS-M-Master
$700.00
IIW Type 1 and Type 2 Calibration Block, Dimensional Calibration and Serialization UT-RC-IIW-CAL
$174.00
IIW-1 Calibration Block, Wood Case UT-RC-IIW1-CASE
$102.00
