Ray-Check AWS-DSC

Ray-Check AWS-DSC

Overview

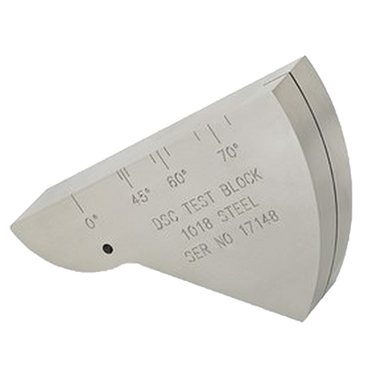

The AWS-DSC Block measures distance, sensitivity, refracted angle and beam index calibration for angle beam transducers, per AWS and ASHTO requirements.

Applications:

Calibration of transverse and longitudinal wave distance, setting determination of the sound beam point of incidence, angle of propagation and sensitivity.

Geometry:

1 " thick, 4" long with 1" and 3" radius. Contains 3/8" deep x 1/32" radius notch and a 1/8" diameter side drilled hole for 45, 60 and 70 degree probes.

Materials

Standard Materials

  • Carbon Steel A36/1018
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium 6/4
  • Inconel 600
  • Monel 400
  • Hastelloy X

Purchasing Details:

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional / Calibration Certification and Serialization are available at additional cost.
  • If needed, make sure to select UT-RC-DSC-Cal when adding items to the shopping cart.
  • Optional Hardwood Case available upon request.
Description Part # Saved Price Select Option Add to
AWS-DSC Calibration Block, Inch (select material)
Model #
UT-RC-DSC-CS-Master
$383.00
AWS-DSC Calibration Block - Metric (select material)
Model #
UT-RC-DSC-CS/M-1
$420.00
AWS-DSC Calibration Block, Dimensional Calibration and Serialization UT-RC-DSC-CAL
$102.00
AWS-DSC Calibration Block, Wood Case UT-RC-DSC-CASE
$54.00
