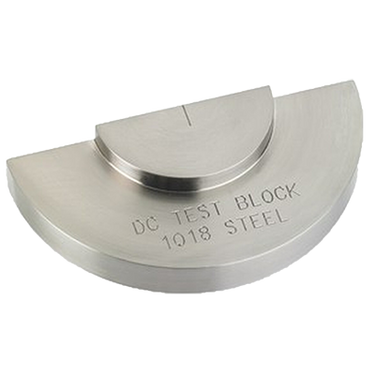

Ray-Check AWS-DC

Ray-Check AWS-DC

Per AWS & ASTM E-164

Application:

Distance Calibration for shear wave transducers.

Geometry:

Contains a 1" radius overlaying a 2" radius on a 180° half circle.

Materials

Standard Materials

  • Carbon Steel A36/1018
  • Aluminum 7075
  • Stainless Steel 304
  • Titanium 6/4
  • Inconel 600
  • Monel 400
  • Hastelloy X

Purchasing Details:

  • All blocks are supplied with Manufacturer Certificate of Conformance and Material Certification.
  • Dimensional / Calibration Certification and Serialization are available at additional cost.
  • If needed, make sure to select UT-RC-DC-Cal when adding items to the shopping cart.
  • Optional Hardwood Case available upon request.
Description Part # Saved Price Select Option Add to
AWS-DC Calibration Block, Inch (select material)
Model #
UT-RC-DC-CS-Master
$333.00
AWS-DC Calibration Block, Metric (select material)
Model #
UT-RC-DC-CS/M-1
$366.00
AWS-DC Calibration Block, Dimensional Calibration and Serialization UT-RC-DC-CAL
$81.00 $71.00
AWS-DC Calibration Block, Wood Case UT-RC-DC-CASE
$56.00 $48.00
