True 2% Penetrameters / IQI's - ASTM-E-1742

True 2% Penetrameters / IQI's - ASTM-E-1742

Overview

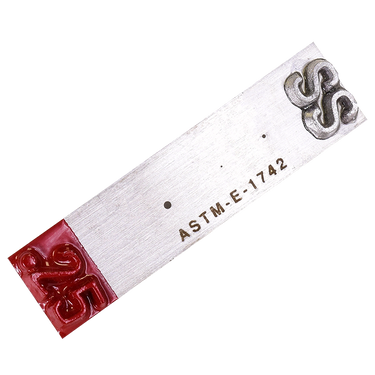

These special ASTM-E-1742 Penetrameters are available in sizes under .25" with true 2% thickness and are offered in a range of materials. Lead figures identify the thickness of the material to be radiographed on one end and the material of the IQI on the other end. Serialization and Calibration are available, as well as Encapsulation in clear, thin plastic and Wood Cases. Wood cases come in two sizes for encapsulated and non-encapsulated IQIs, and are engineered to prevent loss and damage by keeping IQI's firmly in place using a shock absorbing sponge rubber insert in the lid.

If true 2% thickness is not required, or if you require a size larger than .25", see:

ASTM-E-1742 Individual Penetrameters



Mounting Blocks & Step Wedges

Mounting blocks are used when it is impractical to place the IQI directly on the object being radiographed. Standard mounting blocks are supplied in sizes corresponding with ASTM E-1742 IQI sizes. Their dimensions allow at least 1/8" clearance on three sides of the IQI.

Step wedges that are used for calibration and evaluation of techniques are also available. When an object with varying thicknesses is radiographed a step wedge of the same material, incorporating the same thickness, may often be advantageously used.

Click Here for Shims, Mounting Blocks & Step Wedges

Technical Specifications

General Dimensions & Thickness

General Dimensions

Size Length Width Image
2.5" and Smaller 2" 1/2"



Thickness

2% of the thickness of the material to be radiographed, to the nearest fractional size. Minimum thickness: 0.005"

Note: Hole diameters are the same as 0.25" IQIs; only thickness changes.

Size Actual IQI Thickness (2%) Hole Diameter Tolerance
.05" .0010" .0100 .0200 .0400 +/- 10%
.10" .0020" .0100 .0200 .0400 +/- 10%
.15" .0030" .0100 .0200 .0400 +/- 10%
.20" .0040" .0100 .0200 .0400 +/- 10%
Materials & Sizes

Sizes

True 2% Thickness for sizes:

  • .05"
  • .10"
  • .15"
  • .20"

Available Materials

  • Aluminum 6061
  • Aluminum 2024
  • Aluminum 2219
  • Aluminum 7075
  • Steel
  • Stainless Steel
  • Inconel 600
  • Inconel 718
  • Copper
  • Nickel
  • Titanium 6/4
  • Cobalt
  • Haynes 188
  • Hastelloy X





Additional Options

IQI’s may be purchased with or without serialization, calibration and encapsulation. Add these additional options to your order if required.

Serialization Only: PN: RT-RC-P-Serialize

Serialization & Calibration: PN: RT-RC-P-Serialize-Cal

Encapsulation: PN: RT-RC-P-Encapsulate

Minimum Order Size is $75

Note: Serialized radiographic products are not returnable

Description Part # Saved Price Select Option Add to
Individual IQI ASTM-E-1742, Plaque Type, True 2% Thickness, Size .05" (Specify Material)
Model #
RT-RC-ASTME-1742-T-.05-Master
$48.00
Individual IQI ASTM-E-1742, Plaque Type, True 2% Thickness, Size .10" (Specify Material)
Model #
RT-RC-ASTME-1742-T-.10-Master
$48.00
Individual IQI ASTM-E-1742, Plaque Type, True 2% Thickness, Size .15" (Specify Material)
Model #
RT-RC-ASTME-1742-T-.15-Master
$48.00
Individual IQI ASTM-E-1742, Plaque Type, True 2% Thickness, Size .20" (Specify Material)
Model #
RT-RC-ASTME-1742-T-.20-Master
$48.00
Individual IQI, Serialize RT-RC-P-SERIALIZE
$1.00
Individual IQI, Serialize and Calibrate RT-RC-P-SERIALIZE-CAL
$9.00
Individual IQI, Encapsulate RT-RC-P-ENCAPSULATE
$4.00
