| Vidisco Guardian 7 Systems | RT-VID-GUARDIAN7 |
|
Request Pricing | ||

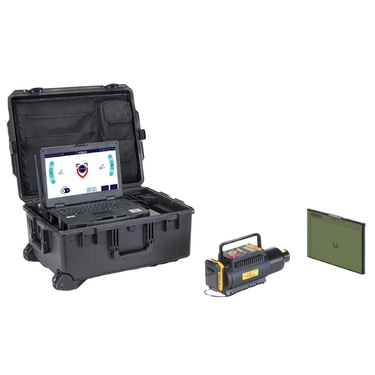

The Guardian 7 is a portable DR system consisting of a 7" Panel, X-ray Source and Rugged Case or Backpack. This lightweight and portable solution has a small footprint, making it easy to remain inconspicuous, while enabling fast set up and high resolution image acquisition, allowing you to see the small details and accurately access possible threats. Available in wireless and wired configurations and with handle configurations. With the plug & play option, the Guardian 7 is compatible with all other Vidisco systems available. IP67 rated.
The Guardian 7 Panel is compact, lightweight and easy to carry and conceal. This lightweight & portable solution has a small footprint, making it easy to remain inconspicuous, while enabling fast set up and high resolution image acquisition – allowing you to see the small details and accurately assess possible threats. Available in wireless and wired configurations and with handle configurations as well. IP67 rated and fully compatible with all Vidisco systems.
The XR150 X-ray Source is a portable, battery powered, pulsed X-ray generator, capable of penetrating at least 45mm of steel (depending on the sensitivity of the x-ray image plate used). The X-ray source requires no warmup time before use and can emit 5,100 pulses on one full battery charge. All this, in a device weighing only 2.13 kg including the battery.
The XR200 X-ray Source is a portable, battery powered, pulsed X-ray generator, capable of penetrating at least 45mm of steel (depending on the sensitivity of the x-ray image plate used). The X-ray source requires no warmup time before use and can emit 6,000 pulses on one full battery charge. All this, in a device weighing only 4.8 kg including the battery.
The XRS3 X-Ray Source is a portable, battery powered, pulsed X-ray generator, capable of penetrating at least 80mm of steel (depending on the sensitivity of the x-ray image plate used). This X-ray source requires no warmup time before use and can emit 5,500 pulses on one full battery charge. All this, in a device weighing only 5.3 kg including the battery.
Vidisco offers a versatile transport option for Guardian 7 in backpack form. Helping you move your Guardian 7 anywhere and get your NDT jobs done. The backpack includes padded compartments to protect the stored components, with a dedicate compartment for Golden sources (excluding XRS4) and a cable (from 15 to 900m, 50m being the standard cable length). Dual energy is provided using XRDE plus- Attached to Golden Engineering sources and a Wi-Fi connection can be established at 50m/300m/1mile Wi-Fi (2.4GHz).
The rugged case includes padded compartments to protect the stored components, with a dedicate compartment for Golden sources (excluding XRS4) and a cable (from 15 to 900m, 50m being the standard cable length). Dual energy is provided using XRDE plus- Attached to Golden Engineering sources and a Wi-Fi connection can be established at 50m/300m/1mile Wi-Fi (2.4GHz).
| Active Area: | 7" x 9" (177.8 x 228.6 mm) |
| Panel Dimensions: | 8.2" x 10.1" x 1.08" (208.2 x 256.5 x 27.5 mm) |
| Weight: | 4.4 lbs. (2 kg) |
| Grayscale: | 16 bit |
| Active Array: | 2304 x 3072 pixels |
| Imager Technology & Sensor Type: | Gadox, Wireless with Additional Shielding |
| Pixel Pitch: | 75 μm |
| Operating Time: | 8 hours |
| Power Supply: | DC+24V, Max. 0.8A | Wired: Powered by SCU with a tether interface cable | Wireless: Powered by a battery pack (3,100 mAh x 2) |
| Exposure Time: | 180 seconds |
| Penetration Capability: | 2mm of Pb behind a steel plate of at least 45mm (with a distance source/panel of at least 250mm) |
| Battery Type: | 12 V Li-Ion Rechargeable Battery |
| Source Technology: | Pulse Generator ≤150kV |
| Battery Charging Time: | ≤1 hour |
| Operation Time with Battery: | 5,100 pulses |
| Weight, including Battery: | 4.7 lbs. (2.13 kg) |
| Size: | 9.08" x 3.03" x 4.07" (23.06 x 7.70 x 10.34 cm) |
| Operating Temperature Range: | From -4°F to 122°F (-20°C to 50°C) |
| Warranty: | 1 year |
| Communication: | Wireless and wired |
| Penetration Capability: | 2mm of Pb behind a steel plate of at least 45mm (with a distance source/panel of at least 250mm) |
| Battery Type: | 18 - 20 V Li-Ion Rechargeable Battery |
| Source Technology: | Pulse Generator 150kV |
| Battery Charging Time: | ≤1 hour |
| Operation Time with Battery: | 6,000 pulses |
| Weight, including Battery: | 10.6 lbs. (4.8 kg) |
| Size: | 10.69" x 5.83" x 4.26" (27.15 x 14.81 x 10.82 cm) |
| Operating Temperature Range: | From -4°F to 122°F (-20°C to 50°C) |
| Warranty: | 1 year |
| Communication: | Wireless and wired |
| Penetration Capability: | 2mm of Pb behind a steel plate of at least 80mm (with a distance source/panel of at least 250mm) |
| Battery Type: | 18 - 20 V Li-Ion Rechargeable Battery |
| Source Technology: | Pulse Generator ≤270kV |
| Battery Charging Time: | ≤1 hour |
| Operation Time with Battery: | 5,500 pulses |
| Weight, including Battery: | 11.7 lbs. (5.3 kg) (14.3 lbs. (6.5 kg) with spare battery and charger) |
| Size: | 14.2" x 4.28" x 5.83" (36.07 x 10.87 x 14.81 cm) |
| Operating Temperature Range: | From -4°F to 122°F (-20°C to 50°C) |
| Warranty: | ≥1 year |
| Communication: | Wireless and wired |
| Backpack | Rugged Case | |
| Size | 21.26" x 18.5" x 13" (54 x 47 x 33 cm) | 24.6" x 19.7" x 11.7" (62.5 x 50 x 29.7cm) |
| Weight: | ≤57.3 lbs. (≤26 kg) | 70.55 lbs. (32kg) depends on type of display computer |
| Protection: | Including padding to protect the components contained | MIL-STD-810F/ ATA 300 /FED-STD-101C |
| Temperature: | 14°F (-4°F optional) up to 122°F (-10°C (-20° optional) up to 50°C) | 14°F (-4°F optional) up to 122°F (-10°C (-20° optional) up to 50°C) |
| Display Computer: | Tablet Only | GETAC Series |
| Imager: | 17" x 14.2" (43 x 36cm) | 17" x 14.2" (43 x 36cm) |
| Wi-Fi: | 50m/300m/1mile Wi-Fi (2.4GHz) | 50m/300m/1mile Wi-Fi (2.4GHz) |
| Dual Energy: | XRDE plus- Attached to Golden Engineering sources | |
| Cable Length: | 50m standard (15 up to 900m) | 50m standard (15 up to 900m) |
| Tripod: | Panel, Source | Panel, Source |
| X-ray Source: | Dedicated compartment for Golden sources excluding XRS4 | Dedicated compartment for Golden sources excluding XRS4 |
