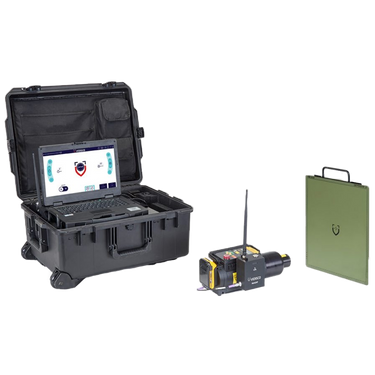

The Defender 12 System is the ultimate cost-effective solution for law enforcement and military needs. The Defender 12 is a portable DR system consisting of a Panel, X-ray Source and Rugged Case or Backpack. With one-touch operation and remote multi-screen control, the Defender 12 System is optimized for safe, fast work in high-risk environments. "Hot-swappable" batteries allows the user to quickly swap out dead batteries without powering down or plugging in the system in the field, enabling continuous operation in high-risk environments. ROV (remotely operated vehicle) ready with MIL-STD connectors and an IP56 rating. Available in wireless and wired configurations with handle configurations.
Keeping in mind the need for easy mobility during EOD and law enforcement work, the Defender 12 system comes in a dedicated carrying case or backpack that is lightweight and compact and easily handled by one person. The Defender 12 Panel is thin and fully portable for challenging field conditions, with one touch operation and remote multi-screen control, making it the ultimate cost-effective solution for law enforcement and military needs. With "hot-swappable" batteries, there is no need to power down or plug in your device, allowing you to work continuously. With the plug & play option, the Defender 12 System is compatible with all other Vidisco systems available. IP56 rated. Available in wireless or wired configuration with handle configurations.
The XR150 X-ray Source is a portable, battery powered, pulsed X-ray generator, capable of penetrating at least 45mm of steel (depending on the sensitivity of the x-ray image plate used). The X-ray source requires no warmup time before use and can emit 5,100 pulses on one full battery charge. All this, in a device weighing only 2.13 kg including the battery.
Vidisco offers a versatile transport option for Defender 12 in backpack form. Helping you move your Defender 12 anywhere and get your NDT jobs done. The backpack includes padded compartments to protect the stored components, with a dedicate compartment for Golden sources (excluding XRS4) and a cable (from 15 to 900m, 50m being the standard cable length). Dual energy is provided using XRDE plus- Attached to Golden Engineering sources and a Wi-Fi connection can be established at 50m/300m/1mile Wi-Fi (2.4GHz).
The rugged case includes padded compartments to protect the stored components, with a dedicate compartment for Golden sources (excluding XRS4) and a cable (from 15 to 900m, 50m being the standard cable length). Dual energy is provided using XRDE plus- Attached to Golden Engineering sources and a Wi-Fi connection can be established at 50m/300m/1mile Wi-Fi (2.4GHz).
| Active Area: | 12" x 10" (417 x 254 mm) |
| Panel Dimensions: | 14" x 12" (355 x 322 mm) |
| Weight, including Battery: | 6 lbs. (2.7 kg) |
| Grayscale: | ≥16 bit |
| Active Array: | 2560 x 2048 pixels |
| Imager Technology & Sensor Type: | aSi matrix |
| Pixel Pitch: | 124 micron |
| Operating Time: | 8 hours (when image is acquired), 9 hours (standby) |
| Power Supply: | 40kV up to 450kV |
| Exposure Time: | ≤180 sec |
| Penetration Capability: | 2mm of Pb behind a steel plate of at least 45mm (with a distance source/panel of at least 250mm) |
| Battery Type: | 12 V Li-Ion Rechargeable Battery |
| Source Technology: | Pulse Generator ≤150kV |
| Battery Charging Time: | ≤1 hour |
| Operation Time with Battery: | 5,100 pulses |
| Weight, including Battery: | 4.7 lbs. (2.13 kg) |
| Size: | 9.08" x 3.03" x 4.07" (23.06 x 7.70 x 10.34 cm) |
| Operating Temperature Range: | From -4°F to 122°F (-20°C to 50°C) |
| Warranty: | 1 year |
| Communications: | Wireless and wired |
| Backpack | Rugged Case | |
| Size | 21.26" x 18.5" x 13" (54 x 47 x 33 cm) | 24.6" x 19.7" x 11.7" (62.5 x 50 x 29.7cm) |
| Weight: | ≤57.3 lbs. (≤26 kg) | 70.55 lbs. (32kg) depends on type of display computer |
| Protection: | Including padding to protect the components contained | MIL-STD-810F/ ATA 300 /FED-STD-101C |
| Temperature: | 14°F (-4°F optional) up to 122°F (-10°C (-20° optional) up to 50°C) | 14°F (-4°F optional) up to 122°F (-10°C (-20° optional) up to 50°C) |
| Display Computer: | Tablet Only | GETAC Series |
| Imager: | 17" x 14.2" (43 x 36cm) | 17" x 14.2" (43 x 36cm) |
| Wi-Fi: | 50m/300m/1mile Wi-Fi (2.4GHz) | 50m/300m/1mile Wi-Fi (2.4GHz) |
| Dual Energy: | XRDE plus- Attached to Golden Engineering sources | |
| Cable Length: | 50m standard (15 up to 900m) | 50m standard (15 up to 900m) |
| Tripod: | Panel, Source | Panel, Source |
| X-ray Source: | Dedicated compartment for Golden sources excluding XRS4 | Dedicated compartment for Golden sources excluding XRS4 |
