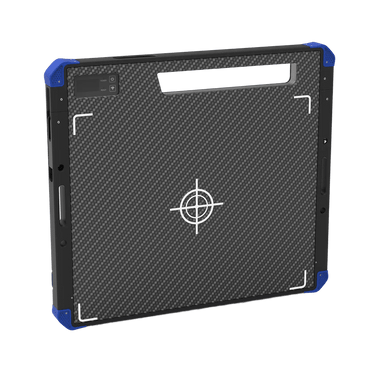

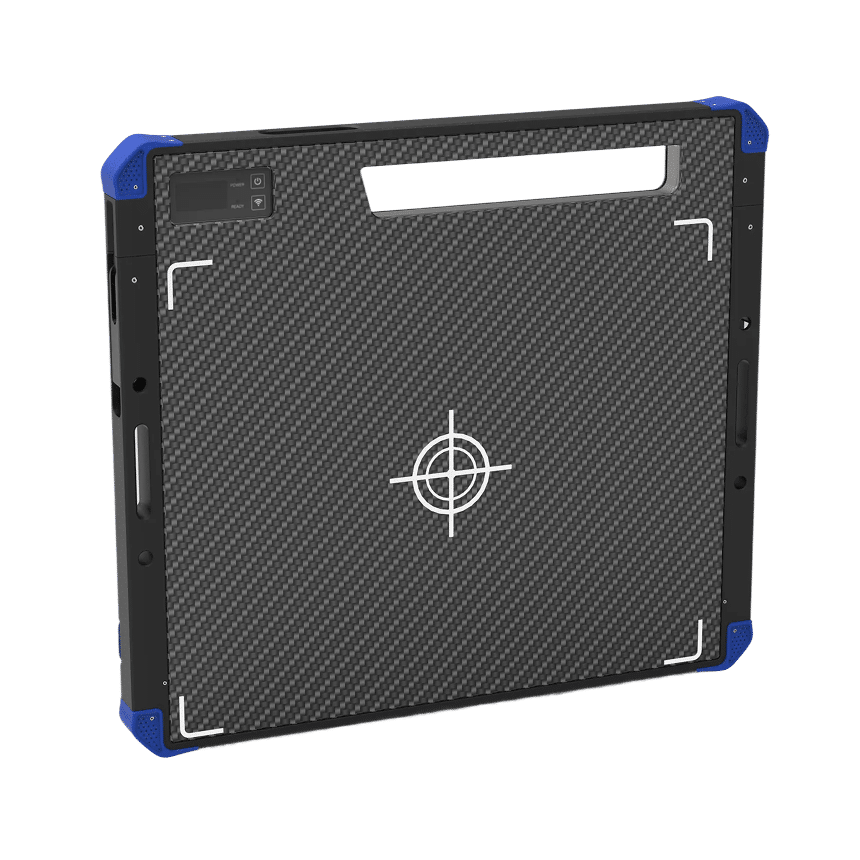

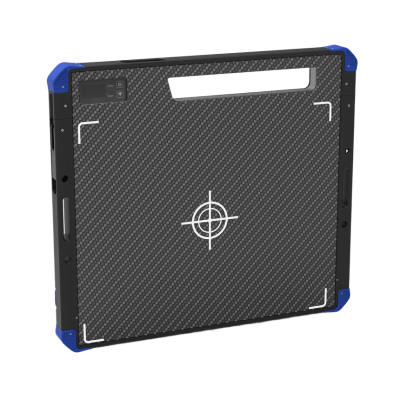

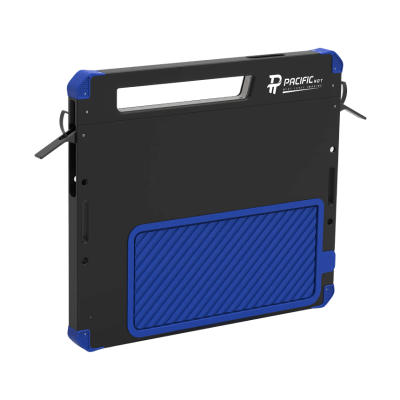

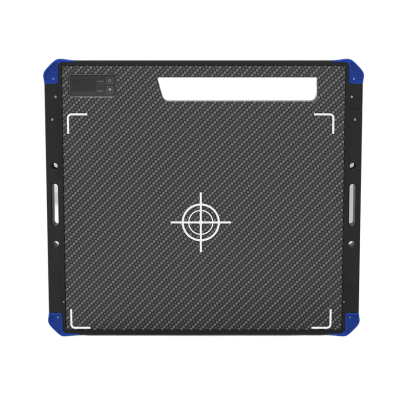

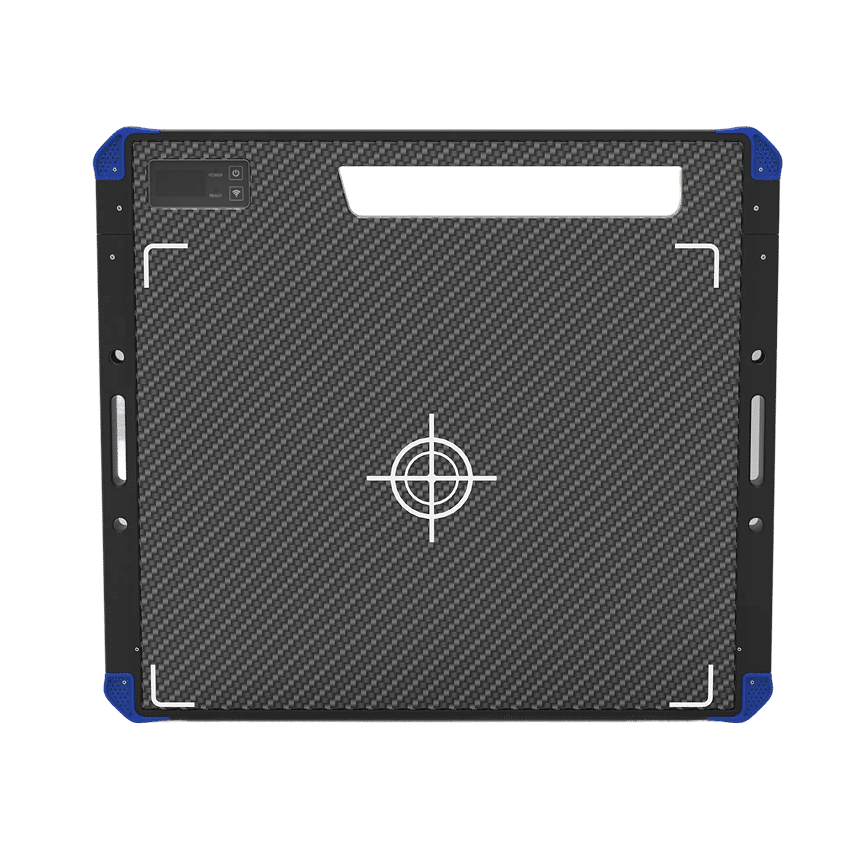

Pacific NDT PiX 1417HD DR

Pacific NDT PiX 1417HD DR

High-Resolution Flat Panel Detector for Demanding NDT Applications

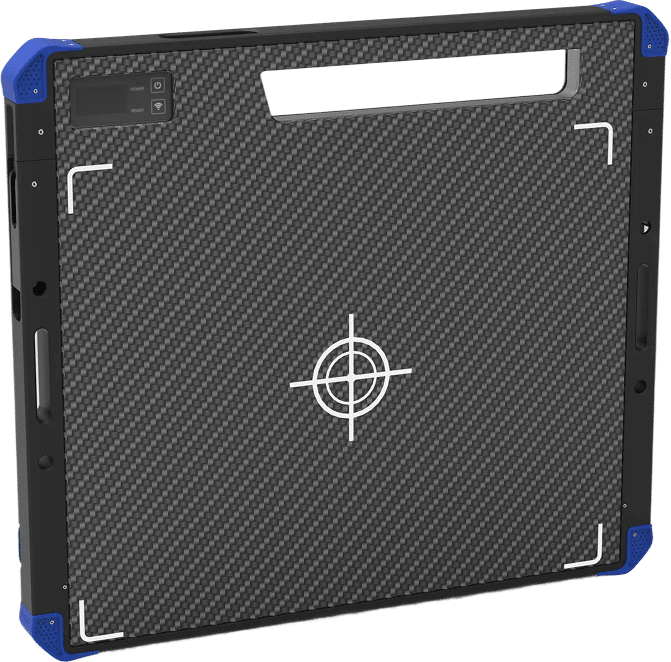

Overview

The PiX 1417HD is a premium 100-micron digital X-ray flat panel detector purpose-built for industrial radiography professionals who require uncompromised image clarity, large field coverage, and compliance with global inspection standards. The detector works seamlessly with the PiX Software platform and offers a simple upgrade path for labs already operating the PiX 1417 NDT DR (139µm) — no additional software license required.

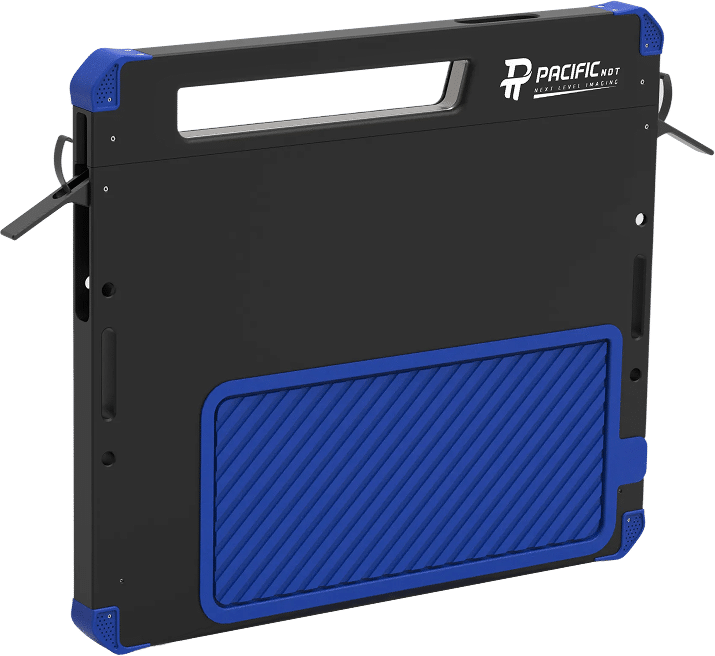

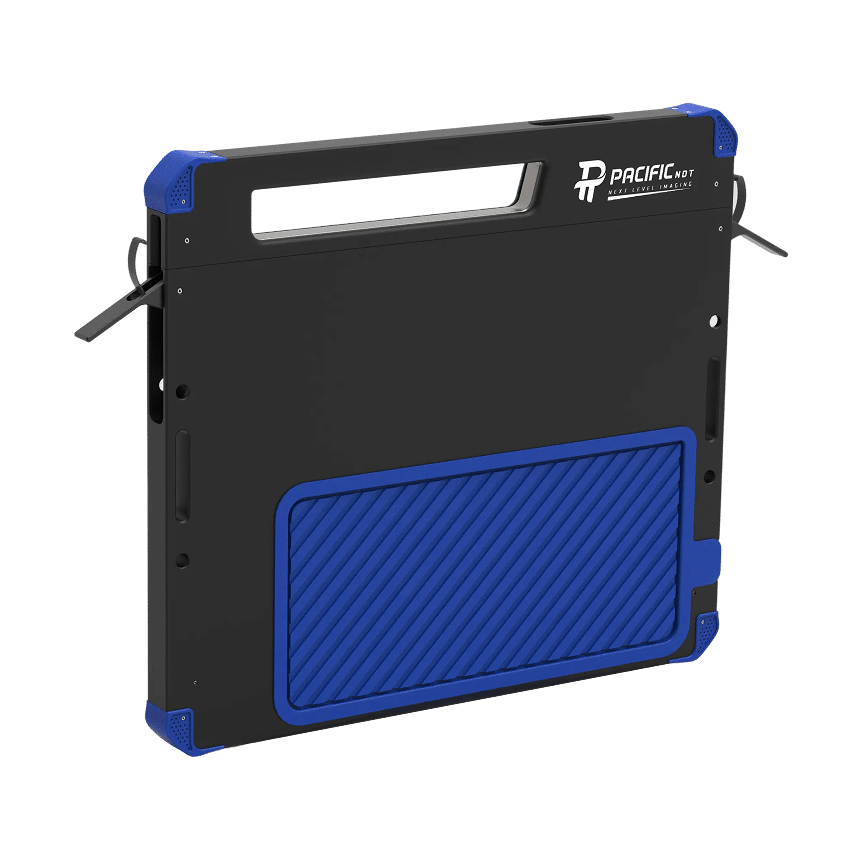

Features

  • Ultra-high 100µm pixel pitch for fine-feature spatial resolution and high-contrast imaging
  • Full 14" x 17" imaging area for large welds and components, with a low 3 mm edge space when used without protective armor
  • Meets stringent code-based imaging requirements, including ASME Section V and ISO 17636-2 Class B
  • Seamless integration with the PiX Software platform; compatible with most microfocus and minifocus X-ray sources
  • Lightweight, durable design with IP67 ingress protection for both field and lab deployment

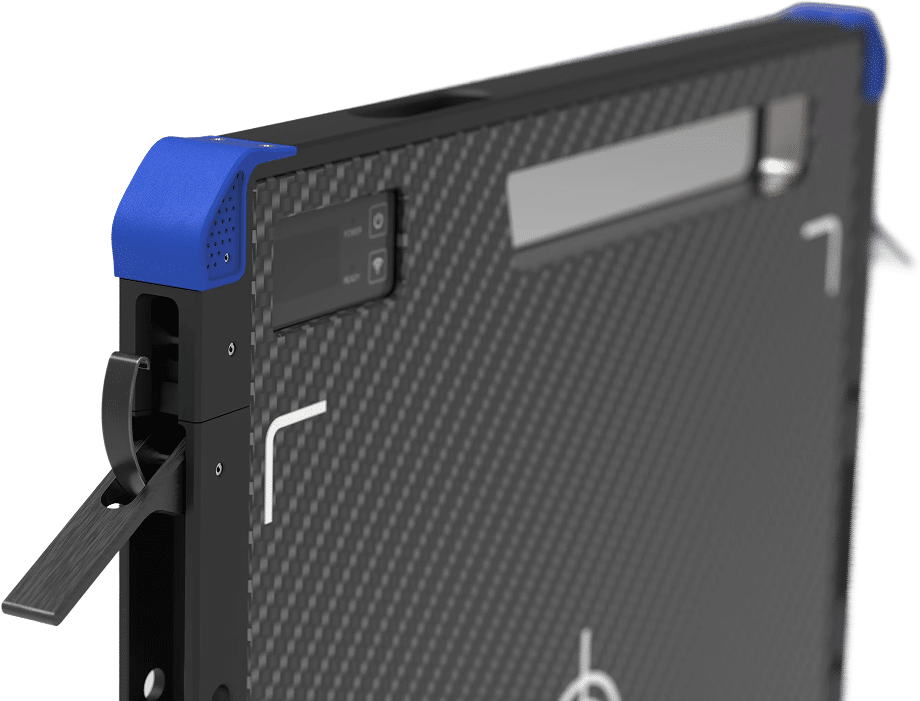

Applications

  • Code-compliant weld inspections under ASME Section V and ISO 17636-2 Class B
  • Aerospace and defense inspection, including turbine blades and precision machined parts
  • Petrochemical and pressure vessel manufacturing
  • Turbine inspection and other high-reliability component testing
  • Fine-feature defect detection where IQI visibility and spatial resolution determine pass/fail outcomes

Technical Specifications

Technical Specifications

Technical Specifications

Imaging Specifications

Imaging Specifications
Model Name: PiX 1417HD
Technology: a-Si TFT with Photodiode
Scintillator: Gadox or CsI
Pixel Matrix: 3532 x 4302 pixels
Pixel Pitch: 100 µm
Imaging Area Size: 13.9" x 16.9" (353 x 430 mm)
Limiting Resolution: 5 lp/mm
A/D Conversion: 16-bit
Trigger Mode: Software trigger; Bluetooth interfacing with X-ray; AED (Automatic Exposure Detection)
Input Voltage: 12 VDC, MAX 45W
Power Consumption (Max.): Operating with Charging: 45W  |  Operating: 20W
Data Interface: 1G-Ethernet  |  WiFi (802.11 n/ac) 2x2 MIMO


Mechanical Specifications

Mechanical Specifications
External Dimensions (H x W x D): 17.1" x 18.0" x 0.79" (435.5 x 457.2 x 20 mm)
Weight: 8.6 lbs (3.9 kg)
Edge Space Distance: 0.12" (3 mm)
Detector Housing Material: Aluminum
Pixel Pitch: 100 µm
Sensor Protection Material: Carbon Fiber
Weight Limit: Uniform load: 330.7 lbs (150 kg)  |  Point load: 220.5 lbs (100 kg) Φ 1.6" (40 mm)
Ingress Protection: IP67



Battery Pack Specifications

Battery Pack Specifications — Model: EVS-MBP-Y
Cell Type: Lithium Polymer
Number of Cells: 2S1P (2 Series, 1 Parallel) x 2 (Dual Battery System)
Rated Power Supply: Output: DC +7.4 V
Lifetime: Approx. 500 cycles (1 cycle = complete charge & discharge)
Dimensions (each): 6.4" x 5.8" x 0.28" (163 x 148 x 7 mm)
Weight (each): 0.53 lbs (0.24 kg)


Operating / Storage Environment

  Operation Storage Transit
Temperature: -4 to 122°F (-20 to 50°C) -4 to 131°F (-20 to 55°C) -4 to 131°F (-20 to 55°C)
Humidity: 10 to 90% RH (Non-condensing) 10 to 90% RH (Non-condensing) 10 to 90% RH (Non-condensing)
Atmospheric Pressure: 700 to 1060 hPa 500 to 1060 hPa 500 to 1060 hPa

*Specifications are subject to change without prior notice.
