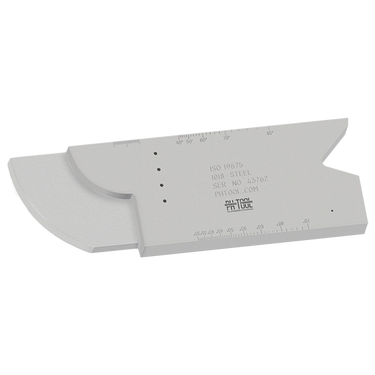

PH Tool is proud to be the first US-based manufacturer to offer the PAUT IIW Block to the NDT market. The PAUT IIW Block, made in accordance with ISO 19675 was designed by an international committee of NDT experts with the express purpose of creating a globally accepted, standardized block for calibrating Phased Array and Conventional Ultrasonic flaw detection equipment. (Before the development of this spec, there were no international standards describing a specific block for calibrating PAUT systems).
Geometry:
Probe index, Beam angle, Beam squint angle, Linearity of time base, Calibration of time base, Linearity of attenuator, Linearity of screen height, Pulse duration, Measurement of dominant frequency, Signal-to-noise ratio (SNR,) Wedge delay, Assess for grating lobes, Active element assessment, Sensitivity equalization for E-scans, Sensitivity equalization for S-Scans, Plotting check, Element assignment, Anisotropy assessment
The process starts with high-quality, fine-grained steel, produced in a special size by our preferred mill. Material selection is followed by heat treatment, flaw detection, material attenuation check, material velocity checks (longitudinal and transverse wave,) machining and surface finish preparation, block identification, in-house nickel-plating, and preparation of a comprehensive documentation package.
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
| PH Tool PAUT IIW Block, ISO 19675, Metric, 1018 Steel, Nickel-plated (New Block Dimensional Certificate and Recertification Certificate included with no additional cost) | UT-PHT-PAUTIIW-ISO19675-CS |
|
$2,314.00 | ||
| PH Tool Wood Case for PAUT IIW Block, ISO 19675 | UT-PHT-PAUTIIW-CASE |
|
$104.00 | ||
