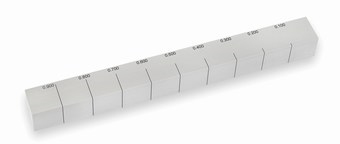

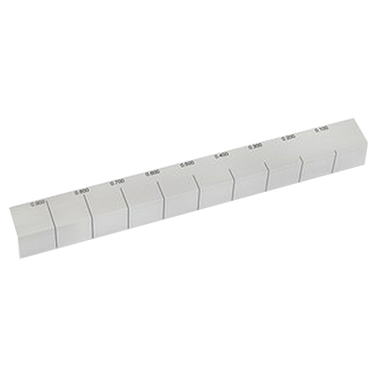

This block contains 9 EDM slots from 0.100" to 0.900" deep. Slot width is 0.011". Nominal depth is laser engraved on the side of the block. In accordance with PH Dwg. No. 10072.

  • Dimensions: 1.000" x 1.000" x 10.000"
  • Made from 7075-T6 Aluminum, anodized


Materials:

  • Carbon Steel
  • Aluminum
  • Stainless Steel


Special Alloys: (Call for Price)

  • Titanium
  • 4340 Steel
  • 316 Stainless Steel
  • 2024-T3 Aluminum
  • 6061-T6 Aluminum
  • 90/10 Copper Nickel
  • Hastelloy C278
  • Hastelloy X
  • Monel 400
  • 1018 Steel, Nickel Plated
  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 321 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • 6AL-4V Aluminum
  • 7050-T7451 Aluminum
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium
  • Inconel 600
  • Inconel 62


Certification Notes:

  • Material certification is included with all blocks.
  • Serialization and Dimensional certification are available at additional cost.

Don't see what you're looking for? Please contact us.

Optional Hardwood Case is available.

Description Part # Saved Price Select Option Add to
EDM Slot Sizing Block, 0.100" to 0.900" x 0.100" Increments - Carbon Steel UT-PHT-EDM-SLOTSIZ-CS $1,396.00
EDM Slot Sizing Block, 0.100" to 0.900" x 0.100" Increments - 7075-T6 Aluminum UT-PHT-EDM-SLOTSIZ-AL $1,396.00
EDM Slot Sizing Block, 0.100" to 0.900" x 0.100" Increments - Stainless Steel UT-PHT-EDM-SLOTSIZ-SS $2,319.00
Wood Case for EDM Slot Sizing Block UT-PHT-EDM-SLOTSIZ-CASE $88.00
PH Tool Dimensional Certificate (New Block) [14] UT-PHT-SLOTSIZ-CERT $84.00
PH Tool Dimensional Certificate (Recertification)[14] UT-PHT-SLOTSIZ-RECERT $167.00
