PH Tool Drilled Hole Sizing Block

PH Tool Drilled Hole Sizing Block

PH Tool Drilled Hole Sizing Block

PH Tool Drilled Hole Sizing Block

drilled-hole-sizing-block

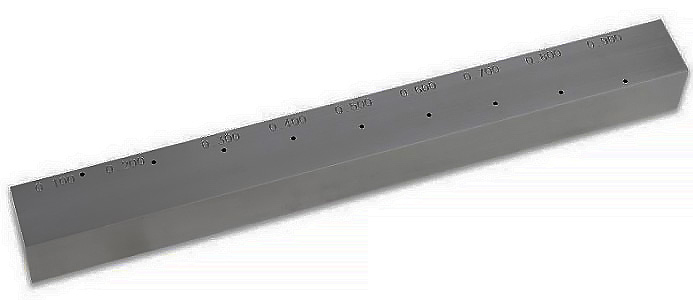

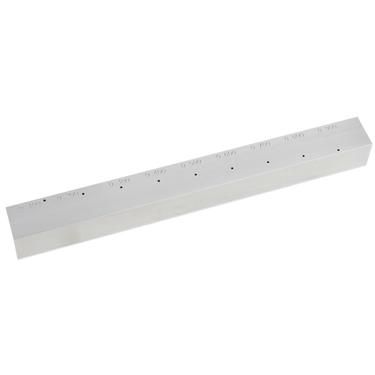

This block contains nine (9) 1/16" diameter thru-holes located from 0.100" to 0.900" from the scanning service. Nominal location is laser engraved on the side of the block. In accordance with PH Dwg. No. 10074.

  • Dimensions: 1.000" x 1.000" x 10.000"


Materials:

  • 1018 Steel
  • 7075-T6 Aluminum
  • 304 Stainless Steel


Special Alloys: (Call for Price)

  • Titanium
  • 4340 Steel
  • 316 Stainless Steel
  • 2024-T3 Aluminum
  • 6061-T6 Aluminum
  • 90/10 Copper Nickel
  • Hastelloy C278
  • Hastelloy X
  • Monel 400
  • 1018 Steel, Nickel Plated
  • A387 Grade 11
  • A387 Grade 22
  • A387 Grade 91
  • A516 Grade 70
  • 321 Stainless Steel
  • AL6XN
  • 2101 Duplex Stainless Steel
  • 2205 Duplex Stainless Steel
  • 6AL-4V Aluminum
  • 7050-T7451 Aluminum
  • Brass
  • Brass Alloy 932
  • Copper 110
  • Cast Ductile Iron
  • Cast Gray Iron
  • Zirconium
  • Inconel 600
  • Inconel 62


Certification Notes:

  • Material certification is included with all blocks.
  • Serialization and Dimensional certification are available at additional cost

Don't see what you're looking for? Please contact us.

Optional Hardwood Case is available.

Description Part # Saved Price Select Option Add to
Drilled Hole Sizing Block, 0.100" to 0.900" x 0.100" Increments - 1018 Steel UT-PHT-DRILLEDSIZ-CS $1,212.00
Drilled Hole Sizing Block, 0.100" to 0.900" x 0.100" Increments - 7075-T6 Aluminum UT-PHT-DRILLEDSIZ-AL $1,212.00
Drilled Hole Sizing Block, 0.100" to 0.900" x 0.100" Increments - Stainless Steel UT-PHT-DRILLEDSIZ-SS $1,984.00
Wood Case for Drilled Hole Sizing Block UT-PHT-DRILLEDSIZ-CASE $88.00
PH Tool Dimensional Certificate (New Block) [15] UT-PHT-DRILLEDSIZ-CERT $72.00
PH Tool Dimensional Certificate (Recertification)[15] UT-PHT-DRILLEDSIZ-RECERT $144.00
