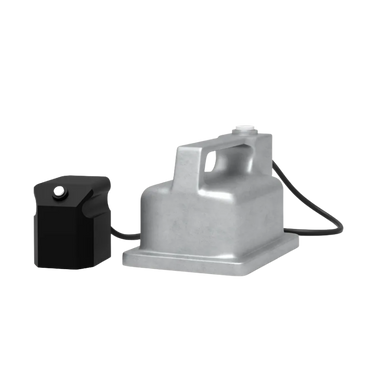

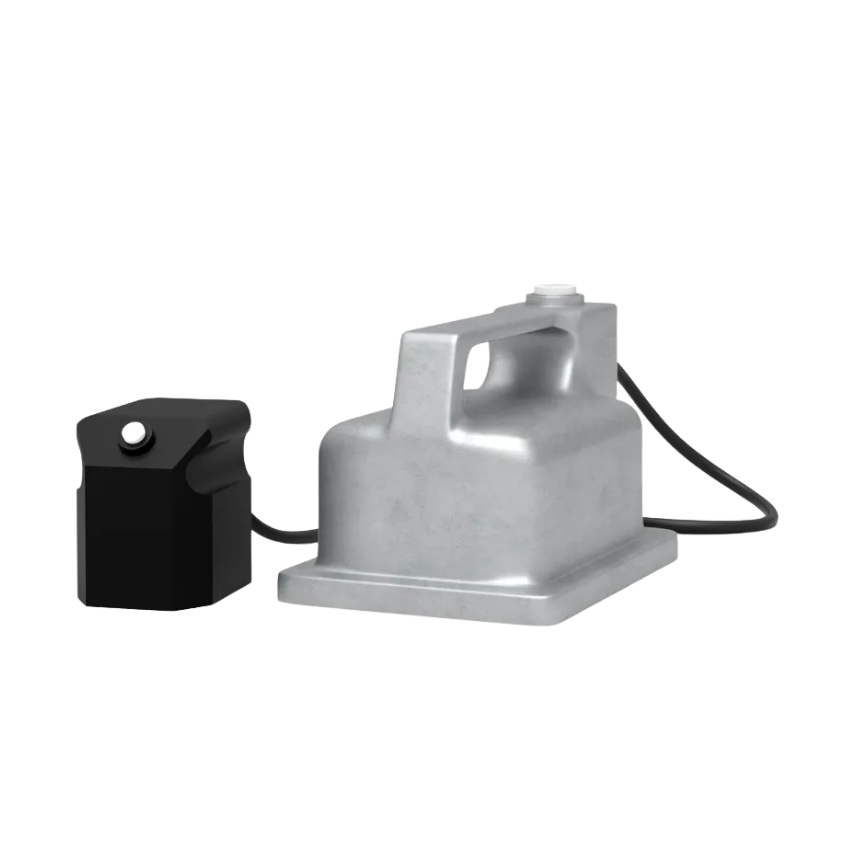

The HE series manual demagnetizer from Maurer Magnetic is a reliable, high-performance device designed to effectively remove surface magnetism on ferromagnetic parts. This powerful, hand-operated demagnetizer removes residual magnetism up to a depth of ~15 mm. To demagnetize successfully, the HE must be guided evenly across the component.
The HE manual demagnetizer from Maurer Magnetic is a reliable, high-performance device designed to effectively remove surface magnetism on ferromagnetic parts.
Residual magnetism is impeccably removed with this hand-operated demagnetizing device up to a depth of 15 mm. To demagnetize successfully, the demagnetizing device must be guided evenly above the component.
| HE High-Performance Manual Demagnetizer Specifications | ||
| HE1 | HE2 | |
| Dimensions (W x H x D): | 3.5" x 3.3" x 2.2" (88 x 85 x 55 mm) | 8.3" x 6.1" x 5.5" (210 x 155 x 140 mm) |
| Weight: | 1.8 lbs (0.8 kg) | 16.3 lbs (7.4 kg) |
| Power Supply: | 1NPE 200–240 VAC or 1NPE 110–120 VAC | |
| Frequency: | 50 or 60 Hz | |
| Power Consumption: | 0.25 or 0.5 A | 3.3 or 6.6 A |
| Degree of Protection: | IP 50 | |
| Maximum Field Strength: | 170 kA/m | 320 kA/m |
| Demagnetizing Depth: | Up to 0.6" (15 mm) | |
| Duty Cycle: | S2, max. 25 min short-term operation | |
| Certification: | CE Certified | |
| Weight: | Dimensions: | Packaging: | HAZMAT: (Yes/No) | Country of Origin: | HTS Code: | |
| HE1 |
5.0 lbs (2.3kg) |
12 × 8 × 8” (29 × 20 × 20 cm) |
Cardboard Box | No | Switzerland | 90248000 |
| HE2 |
16.0 lbs (7.26 kg) |
12 × 8 × 7” (29 × 20 × 18 cm) |
Cardboard Box | No | France | 90248000 |
| Description | Part # | Saved | Price | Select Option | Add to |
|---|---|---|---|---|---|
| Maurer Magnetic HE1 Hand-Held Demagnetizer - 115V (NSN: 4940-01-729-9637) | DE-MM-T-00300 |
|
$1,465.00 | ||
| Maurer Magnetic HE1 Hand-Held Demagnetizer - 230V | DE-MM-T-00310 |
|
$1,465.00 | ||
| Maurer Magnetic HE2 Hand-Held Demagnetizer - 115V (NSN: 4940-01-725-2673) | DE-MM-T-00320 |
|
$2,555.00 | ||
| Maurer Magnetic HE2 Hand-Held Demagnetizer - 230V | DE-MM-T-00330 |
|
$2,555.00 | ||
