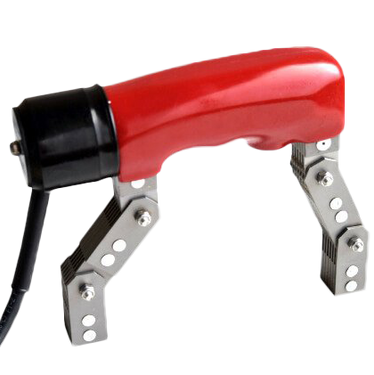

Western Instruments WC-6x2 High Output AC Yoke

Western Instruments WC-6x2 High Output AC Yoke

Can Lift Over 20 Pounds, Perfect for Through Coating Inspection with Sealed Membrane Switch and Adjustable Strain Relief Orientation

Extra-Strong AC Field, Compact Design

The WC-6x2 is a basic WC-Series AC Yoke, but can lift over 20 pounds, far exceeding ASTM or ASME Specifications for AC Yokes. This extra lift ensures that the yoke is sensitive enough to perform Magnetic Particle Testing on Coated or Painted Surfaces. Many inspectors like its extra-strong AC field for testing large areas with full leg extension and the yoke is also ideal for Wet Method Inspection. The ergonomically designed housing combined with its light weight reduces operator fatigue and strain permitting better and longer inspections. The compact design allows the WC-6x2 to fit into confined spaces better than the full size W-Series Models. Features urethane rubber housing and a Power Cord Strain Relief System that provides superior durability in rugged environments. The low profile sealed membrane activation switch ensures operator safety with a grounding provision and conducts less than Ω Watt of power.

Features

  • 20 lbs. Lift
  • Lightweight
  • Comfortable Ergonomic Grip
  • Grounded Solid State Switch
  • Sealed Switch Cover
  • Rugged Strain Relief
  • Urethane Rubber Encapsulant
  • Optional UL/CSA Approval

Applications

Through Paint Inspection of:

  • Automotive
  • Aerospace
  • Weld Inspection
  • Pressure Equipment
  • Piping
  • Fabrication
  • Manufacturing
  • Maintenance

Inspection Kits

Basic Dry Method W-DMB Kit

  • Carrying Case
  • Powder Bulb
  • 2 x 3/4" lbs. of Powder (Red and Yellow)
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Deluxe Dry Method W-DM Kit

  • Carrying Case
  • Powder Bulb
  • 4 x 3/4 lbs. of Powder (Grey, Red, Black and Yellow)
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Basic Wet Method W-WMB Kit

  • Carrying Case
  • Aerosol Cans of: 1 Black Prepared Bath, 1 White Contrast Paint and 1 Cleaner/Remover
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet Method W-WM Kit

  • Carrying Case
  • Aerosol Cans of: 4 White Contrast Paint, 4 Black Oxide and 8 Cleaner/Remover
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet / Dry Method W-WD Kit

  • Carrying Case
  • Aerosol Cans of: 1 Black Oxide, 1 White Contrast Paint and 2 Cleaner/Remover
  • Powder Bulb
  • 4 x 3/4 lbs. Powder (Grey, Red, Black and Yellow)
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet Fluorescent Method W-WF Kit

  • Carrying Case
  • Aerosol Cans of: 6 Fluorescent Particle Bath, 6 Cleaner/Remover
  • SPR-365 UV LED Flash Light
    • Wrist Strap
    • Battery Charger
    • Spare Battery
    • UV Spectacles
    • Calibration Certificate
    • Instruction Manual
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet Fluorescent / Dry Method W-WFD Kit

  • Carrying Case
  • Aerosol Cans of: 4 Fluorescent Particle Bath, 4 Cleaner/Remover
  • 4 x 1 ¾ Pounds (800g) of Dry Method Powder; Powder: Grey, Red, Black, and Yellow
  • Field Indicator (Pocket Magnetometer)
  • Economy Pie Gauge
  • Powder Bulb
  • Operator Instructions
  • Western SPR-365 UV LED Flash Light (Torch)
    • Spare Battery
    • Battery Charger with AC and 12VDC Adaptors
    • Wrist Strap
    • UV Spectacles
    • Calibration Certificate
    • Operator Instructions

Technical Specifications

WC-6x2 and WC-6x2K Specifications

Specification WC-6x2 (115V) WC-6x2K (230V)
Current 7.0 Amps 3.5 Amps
Weight 7.2 pounds (3.3 kg)
Voltage 115 Volts 230 Volts
Frequency 60 Hz 50 Hz
Lift 20 pounds (9.1 kg) minimum
Capacity 0-11" (280 mm)
Cord Length 8', 3-18 SOW
Finish Urethane Rubber
Description Part # Saved Price Select Option Add to
Western Instruments WC-6x2 Compact, High Lift AC Yoke, 115V/60Hz MT-WI-WC-6X2 $810.00
Western Instruments WC-6x2K Compact, High Lift AC Yoke, 230V/50Hz MT-WI-WC-6X2K $860.00
