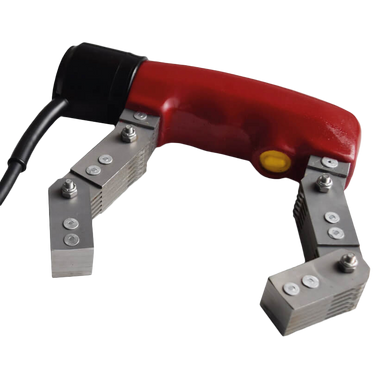

Western Instruments WC-6 Compact AC Yoke

Western Instruments WC-6 Compact AC Yoke

Compact, Lightweight, and Rugged with Sealed Membrane Switch and Adjustable Strain Relief Orientation

Popular, Compact & Rugged

The WC-6 is an AC Yoke with a compact design, articulating legs and a durable power cord strain relief that can be directed up or down. These features allow this yoke to be adapted to confined spaces and almost any test part. A Urethane Rubber housing provides superior durability in rugged environments. The ergonomically designed grip, combined with WC-Series lightweight design, reduces operator fatigue and strain which permits longer and more thorough inspections. The WC-6 uses a low profile sealed membrane activation switch which ensures operator safety with a grounding provision and conducts less than 1/2 watt of power. The WC-6 is ideal for Wet Method Inspection.



Features

  • Compact
  • Lightweight
  • Comfortable Ergonomic Grip
  • Grounded Solid State Switch
  • Sealed Switch Cover
  • Rugged Strain Relief
  • Urethane Rubber Encapsulant
  • Optional UL/CSA Approval
  • 100% Duty Cycle

Applications:

  • Automotive
  • Aerospace
  • Weld Inspection
  • Pressure Equipment
  • Piping
  • Fabrication
  • Manufacturing
  • Maintenance

Inspection Kits

Basic Dry Method W-DMB Kit

  • Carrying Case
  • Powder Bulb
  • 2 x 3/4" lbs. of Powder (Red and Yellow)
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Deluxe Dry Method W-DM Kit

  • Carrying Case
  • Powder Bulb
  • 4 x 3/4 lbs. of Powder (Grey, Red, Black and Yellow)
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Basic Wet Method W-WMB Kit

  • Carrying Case
  • Aerosol Cans of: 1 Black Prepared Bath, 1 White Contrast Paint and 1 Cleaner/Remover
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet Method W-WM Kit

  • Carrying Case
  • Aerosol Cans of: 4 White Contrast Paint, 4 Black Oxide and 8 Cleaner/Remover
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet / Dry Method W-WD Kit

  • Carrying Case
  • Aerosol Cans of: 1 Black Oxide, 1 White Contrast Paint and 2 Cleaner/Remover
  • Powder Bulb
  • 4 x 3/4 lbs. Powder (Grey, Red, Black and Yellow)
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet Fluorescent Method W-WF Kit

  • Carrying Case
  • Aerosol Cans of: 6 Fluorescent Particle Bath, 6 Cleaner/Remover
  • SPR-365 UV LED Flash Light
    • Wrist Strap
    • Battery Charger
    • Spare Battery
    • UV Spectacles
    • Calibration Certificate
    • Instruction Manual
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet Fluorescent / Dry Method W-WFD Kit

  • Carrying Case
  • Aerosol Cans of: 4 Fluorescent Particle Bath, 4 Cleaner/Remover
  • 4 x 1 ¾ Pounds (800g) of Dry Method Powder; Powder: Grey, Red, Black, and Yellow
  • Field Indicator (Pocket Magnetometer)
  • Economy Pie Gauge
  • Powder Bulb
  • Operator Instructions
  • Western SPR-365 UV LED Flash Light (Torch)
    • Spare Battery
    • Battery Charger with AC and 12VDC Adaptors
    • Wrist Strap
    • UV Spectacles
    • Calibration Certificate
    • Operator Instructions

Technical Specifications

WC-6 and WC-6K Specifications

Specification WC-6 (115V) WC-6K (230V)
Current 3.5 Amps 1.8 Amps
Weight 6.5 lbs. (3 kg)
Voltage 115 Volts 230 Volts
Frequency 60 Hz 50 Hz
Lift 10 lbs. (4.6 kg) minimum
Capacity 0-11" (280 mm)
Cord Length 8', 3-18 SOW
Finish Urethane Rubber
Portable Power Supply Compatible with W-PPS Portable Power Supply
Description Part # Saved Price Select Option Add to
Western Instruments WC-6 Compact AC Yoke, 110V/60Hz MT-WI-WC-6 $585.00
Western Instruments WC-6K Compact AC Yoke, 220V/50Hz MT-WI-WC-6K $635.00
