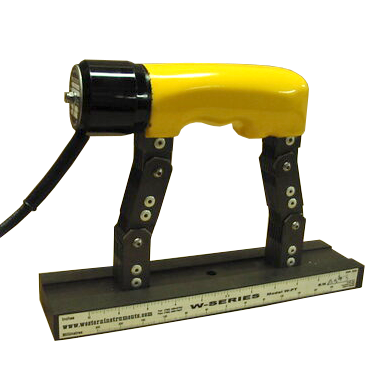

Western Instruments WC-42 Safety AC Yoke

Western Instruments WC-42 Safety AC Yoke

Low Voltage, Lightweight, and Rugged with Sealed Membrane Switch and Adjustable Strain Relief Orientation

Low Voltage

The WC-42 conforms to EU requirements of low voltage yokes for dangerous environments. Other than the Power Supply, these units are identical to the WC-6 and has the same compact design, articulating legs and a durable power cord strain relief that can be directed up or down that allow this yoke to be adapted to confined spaces and almost any test part. A Urethane Rubber housing provides superior durability in rugged environments. The ergonomically designed grip, combined with WC-Series lightweight design, reduces operator fatigue and strain which permits longer and more thorough inspections. The WC-42 uses a low profile sealed membrane activation switch which ensures operator safety with a grounding provision and conducts less than 1/2 watt of power.

Features

  • Conforms to EU Low Voltage Yokes Requirements
  • Compact & Lightweight (6.5 pounds)
  • Comfortable Ergonomic Grip
  • Grounded Solid State Switch
  • Sealed Switch Cover
  • Rugged Strain Relief
  • Urethane Rubber Encapsulant
  • Optional UL/CSA Approval
  • 100% Duty Cycle

Applications:

  • Automotive
  • Aerospace
  • Weld Inspection
  • Pressure Equipment
  • Piping
  • Fabrication
  • Manufacturing
  • Maintenance

Inspection Kits

Basic Dry Method W-DMB Kit

  • Carrying Case
  • Powder Bulb
  • 2 x 3/4" lbs. of Powder (Red and Yellow)
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Deluxe Dry Method W-DM Kit

  • Carrying Case
  • Powder Bulb
  • 4 x 3/4 lbs. of Powder (Grey, Red, Black and Yellow)
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Basic Wet Method W-WMB Kit

  • Carrying Case
  • Aerosol Cans of: 1 Black Prepared Bath, 1 White Contrast Paint and 1 Cleaner/Remover
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet Method W-WM Kit

  • Carrying Case
  • Aerosol Cans of: 4 White Contrast Paint, 4 Black Oxide and 8 Cleaner/Remover
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet / Dry Method W-WD Kit

  • Carrying Case
  • Aerosol Cans of: 1 Black Oxide, 1 White Contrast Paint and 2 Cleaner/Remover
  • Powder Bulb
  • 4 x 3/4 lbs. Powder (Grey, Red, Black and Yellow)
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet Fluorescent Method W-WF Kit

  • Carrying Case
  • Aerosol Cans of: 6 Fluorescent Particle Bath, 6 Cleaner/Remover
  • SPR-365 UV LED Flash Light
    • Wrist Strap
    • Battery Charger
    • Spare Battery
    • UV Spectacles
    • Calibration Certificate
    • Instruction Manual
  • Field Indicator (Pocket Magnetometer)
  • Operator Instructions

More Info

Wet Fluorescent / Dry Method W-WFD Kit

  • Carrying Case
  • Aerosol Cans of: 4 Fluorescent Particle Bath, 4 Cleaner/Remover
  • 4 x 1 ¾ Pounds (800g) of Dry Method Powder; Powder: Grey, Red, Black, and Yellow
  • Field Indicator (Pocket Magnetometer)
  • Economy Pie Gauge
  • Powder Bulb
  • Operator Instructions
  • Western SPR-365 UV LED Flash Light (Torch)
    • Spare Battery
    • Battery Charger with AC and 12VDC Adaptors
    • Wrist Strap
    • UV Spectacles
    • Calibration Certificate
    • Operator Instructions

Technical Specifications

WC-42 Specifications

Current 6.5 Amps 'In Air', 5.5 Amps on work piece
Weight 6.5 pounds (3.0 kg)
Voltage 42 VAC
Frequency 50 Hz
Capacity <10 pounds (4.5 kg)
Finish Urethane Rubber
Description Part # Saved Price Select Option Add to
Western Instruments WC-42 Safety AC Yoke MT-WI-WC-42 $645.00
