Safe Black and White Magnetic Particle Materials

Overview

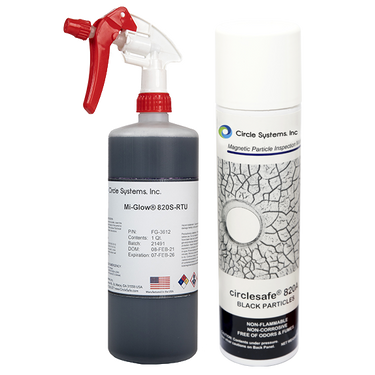

CircleSafe 820A Aerosols are temporarily out-of-stock*. The replacement product is  Mi-Glow 820LS-RTU "Ready-to-Use" in a pump bottle.
* The out-of-stock situation is expected to last for a few months.


Uses:

  • For Cracks and other flaws too small to be reliably detected with dry powder MPI
  • Stress Corrosion Cracking in Pipelines


Black & White Magnetic Particle Tests, when properly performed, have a sensitivity similar to wet fluorescent particles, but without the need for a UV Lamp and a darkened area.

Mi-Glow® 820LS RTU Black Oxide in Oil Bath

Mi-Glow® 820LS RTU is Ready-to-Use oil bath packaged in an hand-held spray bottle. The bath contains Mi-Glow® 106 black particles and CircleSol M, a refined petroleum distillate. It is designed to be used with visible light, for revealing discontinuities on machined component parts.

Physical Characteristics:
Black liquid, odorless.

Particle Certification:
Particles, carrier and mixture meet or exceed all relevant industry specifications including but not limited to MIL-STD-1949, MIL-STD-271(SH), ASTM E 709, ASTM B & PV Code - Section V and NAVSEA 250-1500-1. AMS 3041, AMS 3042, AMS 3161, AMS 2641 and DOD-F-87935 are covered under MIL-STD-1949. Certification is included with each shipment.

 Particle Color Particle Size AMS Standard SAE Sensitivity* Temperature Range
 Black 1.5µm 3042 6 32° - 120°F
(0° - 49°C)


*Representative of the number of lines shown on an AISI 01 Ketos tool steel ring as defined by SAE AS5282

Mi-Glow® 820S RTU Black Oxide in Water Bath

Mi-Glow® 820S RTU is a Ready-to-Use water bath packaged in an hand-held spray bottle. The water bath contains Mi-Glow® 106 black particles and liquid Wetting Agent 771. It is designed to be used with visible light, for revealing discontinuities on machined component parts.

Physical Characteristics:
Black solution with a slight detergent odor.

Particle Certification:
Particles meet all relevant industry specifications, including but not limited to MIL-STD-199, MIL-STD-271, NAVSEA 250-1500-1, NTR-1E and ASTM E 1444. Certification is included with each shipment.

Particle Color Particle Size AMS Standard SAE Sensitivity* Temperature Range
Black 1.5µm 3042 6 32° - 120°F
(0° - 49°C)

Mi-Glow® WCP White Contrast Paint

Mi-Glow® WCP is a specially formulated fast drying white contrast paint, used to create a consistent background on the component surface in a visible magnetic particle inspection. When dry, the white contrast paint is resistant to the wet method baths used for inspection, but is easily removed from the demagnetized component surface with acetone. Mi-Glow® WCP can be used with any of the Mi-Glow® and CircleSafe® black particle materials.

Physical Characteristics:
White liquid with a characteristic odor.

Particle Color Particle Size AMS Standard SAE Sensitivity* Temperature Range
White       32° - 120°F
(0° - 49°C)



Description Part # Saved Price Select Option Add to
WCP, White Contrast Paint, case of 12-16 oz, aerosol cans MT-CS-FG-3740 $182.00
Circle Systems #820S-RTU, case of 6 qt size bottles with spray pumps MT-CS-FG-3612 $188.00
Circle Systems #820LS-RTU, case of 6 qt size bottles with spray pumps MT-CS-FG-3622 $212.00
Circle Systems #820A, 12-16 oz. cans/case MT-CS-FG-3600 Request Pricing
