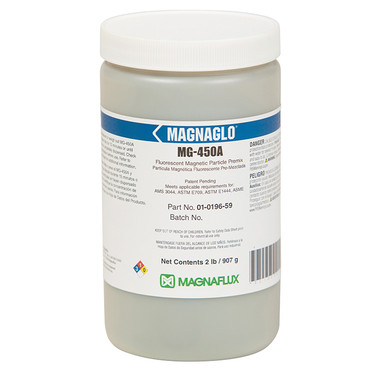

Magnaflux Magnaglo MG-450A

Magnaflux Magnaglo MG-450A

Fluorescent Magnetic Particle Premix with MG-410 Particles

Overview

MG-450A is a borax-free ultra-high fluorescence magnetic particle premix for locating small, medium and gross discontinuities in high-volume applications using wet method magnetic particle testing. Designed to mix with water, MG-450A improves indication visibility with less background fluorescence because of the high-strength, high-fluorescent MG-410 particles. These high performance particles combine with patent-pending water conditioner and corrosion inhibitor package to create a water bath that requires less maintenance, keeps performing longer and protects parts and equipment from rust.

MG-450A is a great option for high-speed, high volume applications on raw products/materials, after secondary processing, on textured/rough surface finishes or on unmachined parts where indication visibility and through-put are important.

Benefits

Improves Indication Detection

  • Enhances indication visibility for more reliable inspections with less background due to the high magnetic strength and fluorescent brightness of Magnaflux’s MG-410 particles

Decreases Maintenance

  • Less upkeep and fewer change outs due to the durable, rugged design of MG-410 magnetic particles, so the particles resist wear and tear during use

Reduces Product Use

  • Use less product in each mag bath and save money with high-strength, high-fluorescent particles which perform well at low particle concentrations

Advanced Corrosion Protection

  • Decrease scrap and increase equipment lifespan with patented, corrosion protection to keep parts and equipment free from rust

Safe to Use

  • Meet or exceeds current safety requirements by eliminating hazards associated with many similar products

Features

  • Clear, ultra-bright indications under UV light
  • Patent-pending water conditioner and corrosion inhibitor package
  • Ultra-high fluorescence particles
  • Very low background for easy indication detection
  • Good surface wetting
  • High indication contrast
  • Strong corrosion protection
  • Low foam
  • Safer, borax-free formula



Note: The MG-450A is a special order item with a 4 week lead time

Technical Specifications

MG-450A Specifications

Properties
Appearance Dry powder
Color in Visible Light Forest green
Color in UV Light Fluorescent yellow-green
Odor Odorless
Mean Particle Size 19 microns
SAE Sensitivity 7
Use Recommendations
NDT Method Magnetic Particle Testing, Fluorescent or Mixed Light, Wet Method
Suspension Vehicle Water
Required Equipment Magnetizing device, UV light source
Usage Temperature 42 to 120 °F / 6 to 48 °C
Storage Temperature 50 to 86 °F / 10 to 30 °C
Settling Volume 0.03 – 0.1 mL

Specification Compliance

MG-450A Specification Compliance

  • AMS 3044
  • ASTM E709
  • ASTM E1444
  • ASME
  • MIL-STD-2132
  • NAVSEA 250-1500-1
  • NAVSEA T9074-AS-GIB-010/271

Special Order Items are not Returnable

Description Part # Saved Price Select Option Add to
Magnaflux Magnaglo MG-450A, 7 lb. Pail (01-0196-65) MT-MX-01-0196-65 $230.00
Magnaflux Magnaglo MG-450A, 2 lb. Jar, Case of 6 (01-0196-73) - (Special Order Item. All sales are final.) MT-MX-01-0196-73 Discontinued Item
