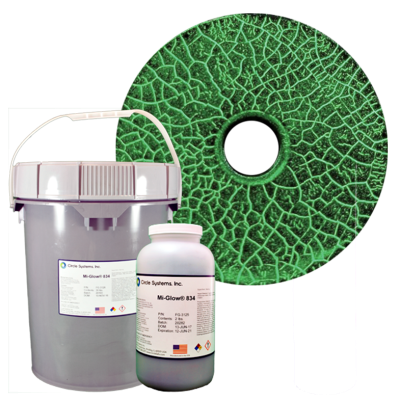

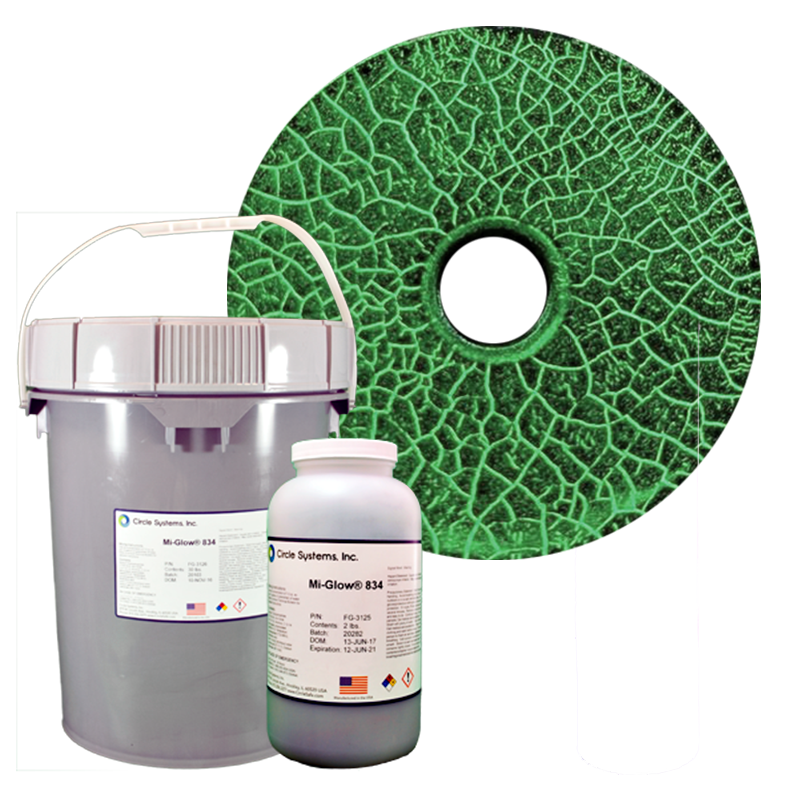

Circle Systems Mi-Glow #834

Circle Systems Mi-Glow #834

Reduces Particle Use and Cost by 50%

Replacement for the discontinued Mi-Glow #834 Magpac & Mi-Glow #810

Cost Effective & Efficient

Mi-Glow 834 uses the latest generation Mi-Glow 800 particles which have exceptional sensitivity, uniform size, and ideal magnetic characteristics for fluorescent magnetic particle inspection. Mi-Glow 834 is a fluorescent yellow/green powder premixed with borate free Wetting Agent #34 for use in water media. Wetting Agent #34 contains excellent corrosion inhibitors and offers incomparable defoaming properties ensuring a reliable magnetic particle inspection.

Mi-Glow 834 has excelled as an oil and gas tubular inspection product (OCTG). The high fluorescence, low foaming, minimal background, and consistently sized particles makes Mi-Glow 834 ideal for inspecting pipes that may have become blemished from being in service.



Features

  • Borate free wetting agent with excellent wetting characteristics
  • Low foaming - Well controlled water conditioning agents
  • Economic - requires 55% less product to achieve desired concentration within a fluorescent MPI system, with savings of 53% per gallon of diluted MPI bath when compared to competitors
  • Provides total particle encapsulation, eliminating free unbonded pigment, resulting in a low background, high performing magnetic particle inspection powder
  • Greater sensitivity and brightness of the superior Mi-Glow 800 particles results in faster NDT inspections

Technical Specifications

Mi-Glow 834 Specifications

Circle Systems Mi-Glow 834 Technical Specifications

Physical Characteristics

Forest green powder with a slight detergent odor
Particle Certification Particles meet or exceed all relevant industry specifications, including but not limited to ASTM E 1444, AMS 3044, MIL-STD-271, NAVSEA 250-1500-1 and NTR-1E. Certification is included with each shipment
Particle Color Fluorescent Yellow-Green
Average Particle Size 3 μm
AMS Standard 3044
SAE Sensitivity 8
Temperature Range 32-120°F (0-49°C)

Note: There is a $25 small order fee for orders valued less than $100. Can combine with other products to reach minimum.

Description Part # Saved Price Select Option Add to
Circle Systems Mi-Glow #834, 2 pound jar MT-CS-FG-3125 $74.00
Circle Systems Mi-Glow #834, 30 pound pail MT-CS-FG-3126 $837.00
